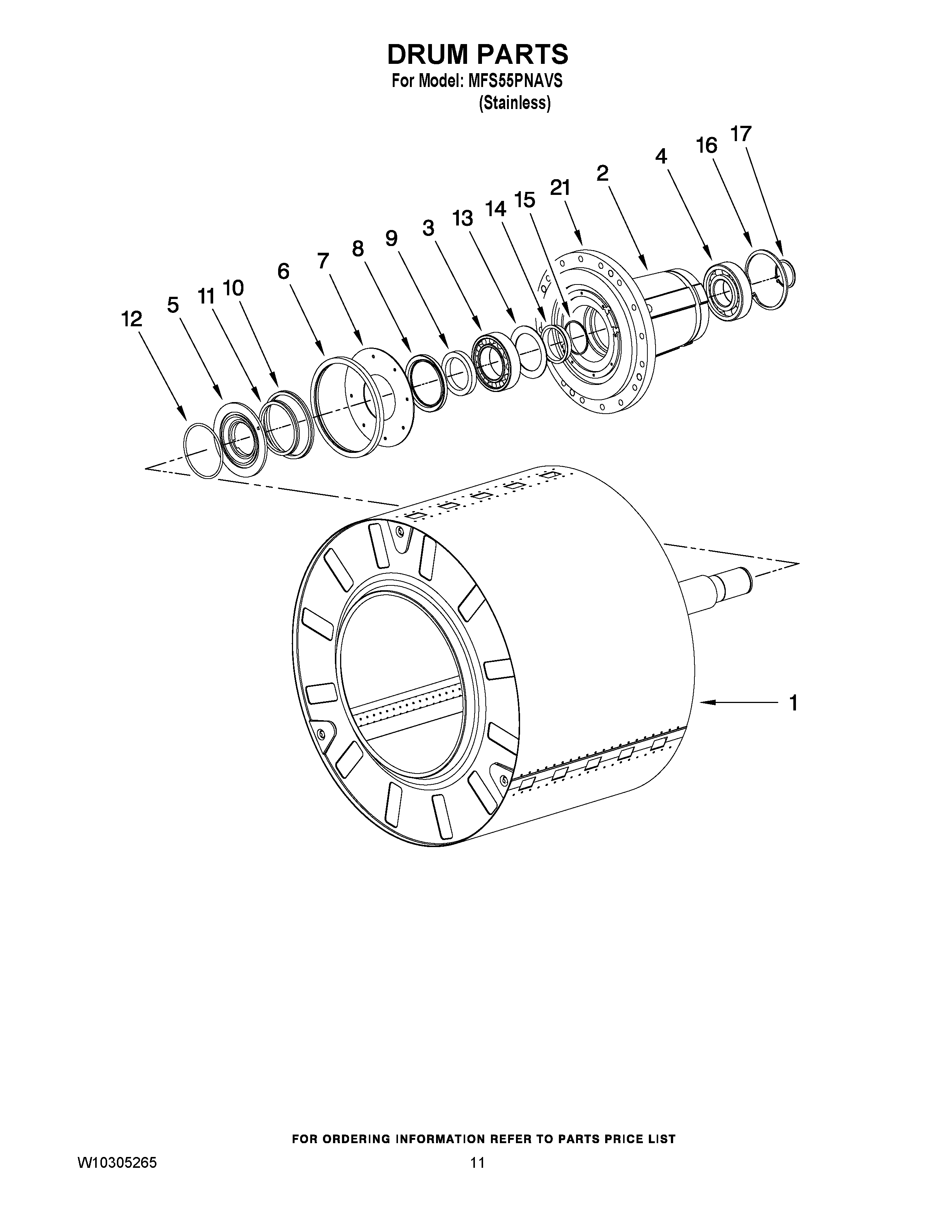

MFS55PNAVS 08 – DRUM PARTS
Written by
in
MFS55PNAVS 08 – DRUM PARTS
Products
Position
Product
1
DRUM
2
BEARING HOUSING
3
FRONT BEARING
4
MAY 23003076
5
SEAL RETAINER
6
MAY W10286325
7
SEAL PLATE
8
RADIAL SEAL
9
RADIAL SEAL RING
10
LARGER V-RING
11
MAY 23003069
12
MAY 23003070
13
GREASE RETAINER
14
BEARING CONE
15
INNER SNAP RING
16
LARGER OUTER SNAP RING
17
MAY 23003847
21
MAY W10286327
←
