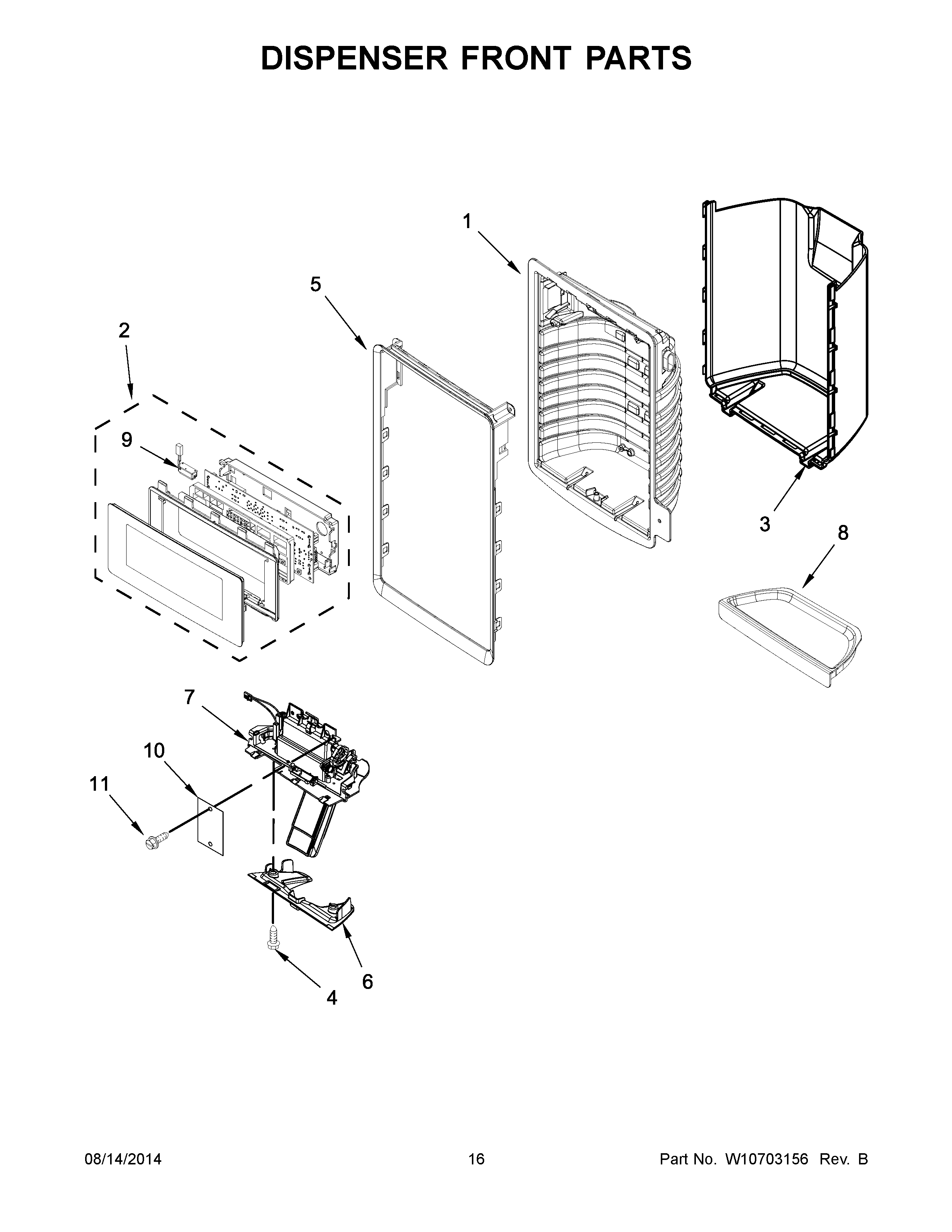

MFT2574DEE00 09 – DISPENSER FRONT PARTS

MFT2574DEE00 09 – DISPENSER FRONT PARTS

Written by

in

MFT2574DEE00 09 – DISPENSER FRONT PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2BUI ASSEMBLY (STAINLESS)
2UI ASSEMBLY (WHITE)
2AUI ASSEMBLY (BLACK)
3BFALSE WALL, DISPENSER (GREY)
3AFALSE WALL, DISPENSER (BLACK)
3FALSE WALL, DISPENSER (WHITE)
4MAY 12990513
5AMAY W10587908
5BMAY W10587909
5MAY W10587907
6MAY W10701961
7MAY W10616136
7AMAY W10616138
8MAY W10322872
8AMAY W10322873
8BMAY W10410105
9ASSEMBLY, LED
10MAY W10572633
11SCREW
