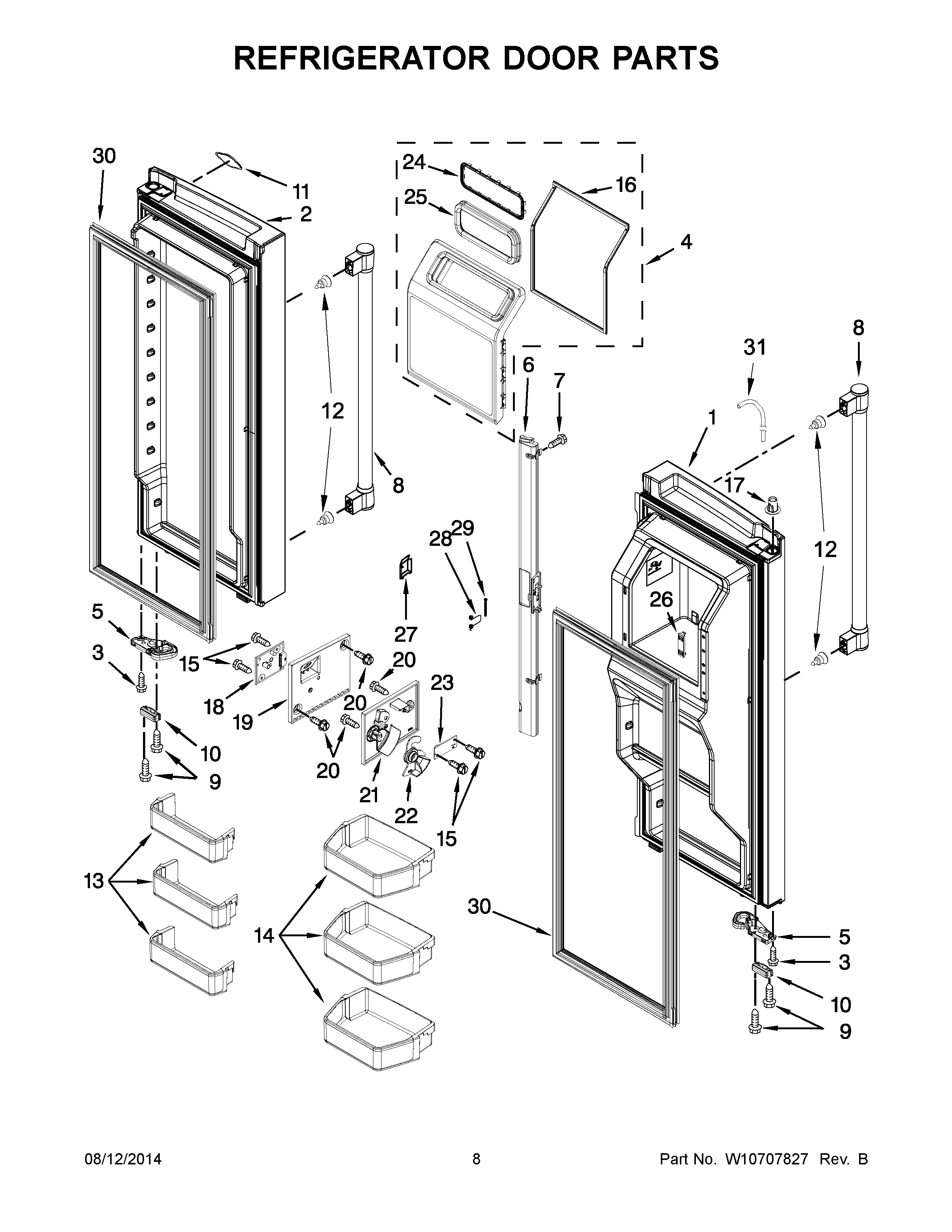

MFT2574DEE01 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1A	DOOR, REFRIGERATOR LEFT HAND (BLACK)
1B	DOOR, REFRIGERATOR LEFT HAND (STAINLESS)
1	DOOR, REFRIGERATOR LEFT HAND (WHITE)
2B	MAY W10422771
2A	MAY W10422770
2	DOOR, REFRIGERATOR RIGHT HAND (WHITE)
3	MAY W10464016
4	MAY W10549593
5	MAY W10681407
5A	MAY W10681408
6	MAY W10654760
6A	MAY W10654761
6B	MAY W10654762
7	MAY 12990204
8	MAY W10643725N
9	MAY 12990504
10	BUMPER, DOOR (WHITE)
10A	BUMPER, DOOR (BLACK)
10B	MAY W10407188
11	MAY W10612926
12	MAY W10460893
13	TRIVET ASSEMBLY
14	MAY W10522064
15	Screw (2)
16	MAY W10347085
17	CLIP, TUBE
18	MAY W10518658
19	MAY W10258510
20	SCREW (STAINLESS)
21	MAY W10258502
22	MAY W10258540
23	MAY W10518659
24	RETAINER, ICE CHUTE
25	MAY W10347087
26	MAY W10646855
27	DOOR, EMITTER
28	SPRING, DOOR
29	PIN, DOOR
30A	MAY W10407145
30B	MAY W10407146
30	MAY W10587577
31	MAY W10499015
