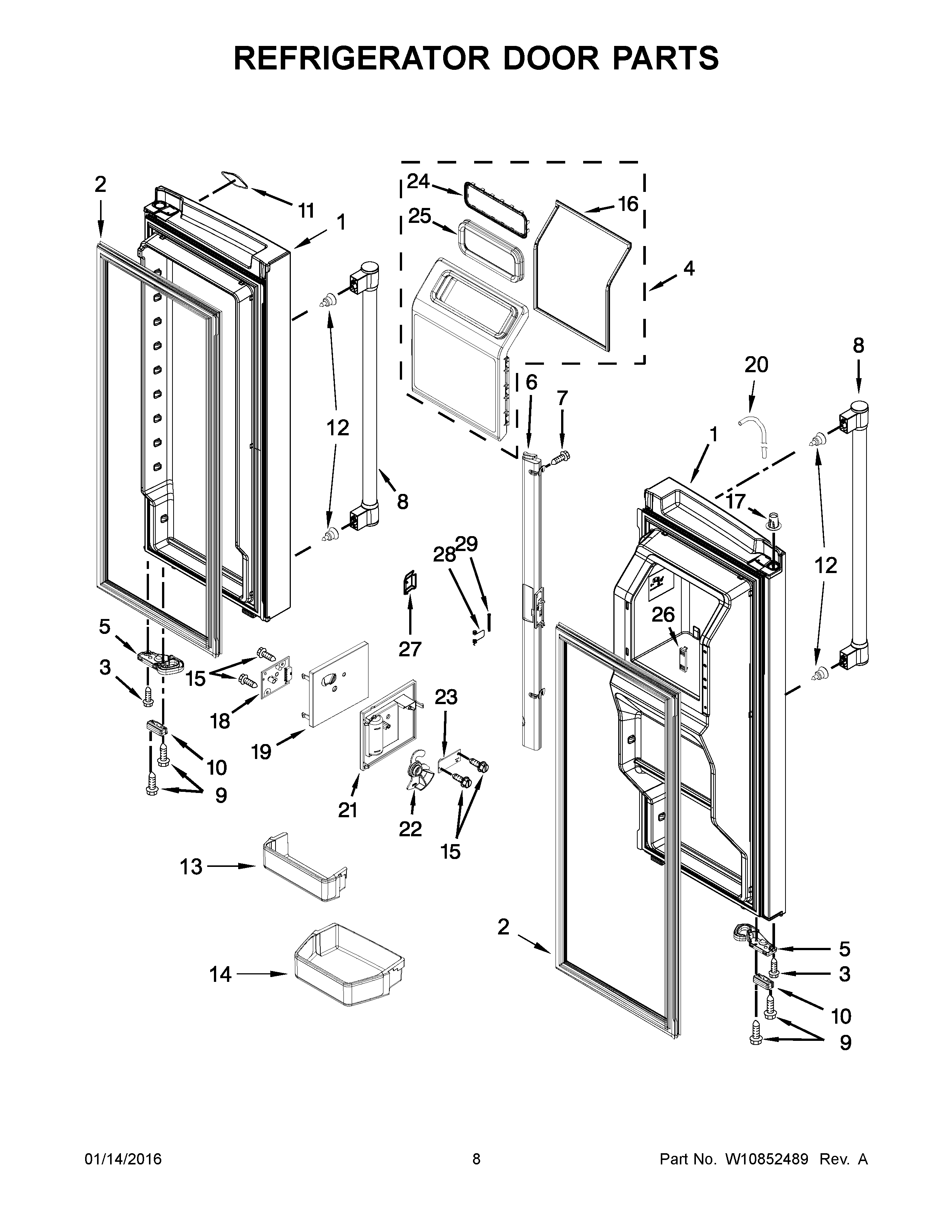

MFT2574DEE02 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	DOOR, REFRIGERATOR LEFT HAND (WHITE)
1C	DOOR, REFRIGERATOR RIGHT HAND (WHITE)
1B	DOOR, REFRIGERATOR LEFT HAND (STAINLESS)
1D	MAY W10422770
1E	MAY W10422771
1A	DOOR, REFRIGERATOR LEFT HAND (BLACK)
2A	MAY W10407145
2	MAY W10587577
2B	MAY W10407146
3	MAY W10464016
4	MAY W10549593
5A	MAY W10712953
5	MAY W10712952
6A	MAY W10698196
6B	MAY W10698199
6	MAY W10698195
7	MAY 12990204
8	MAY W10643725N
9	MAY 12990504
10	BUMPER, DOOR (WHITE)
10A	BUMPER, DOOR (BLACK)
10B	MAY W10407188
11	MAY W10612926
12	MAY W10460893
13	TRIVET ASSEMBLY
14	MAY W10522064
15	Screw (2)
16	MAY W10347085
17	CLIP, TUBE
18	MAY W10518658
19	MAY W10258510
20	MAY W10499015
21	MAY W10258502
22	MAY W10258540
23	MAY W10518659
24	RETAINER, ICE CHUTE
25	MAY W10347087
26	MAY W10646855
27	DOOR, EMITTER
28	SPRING, DOOR
29	PIN, DOOR
