MFT2574DEH00 05 – REFRIGERATOR DOOR PARTS
Written by
in

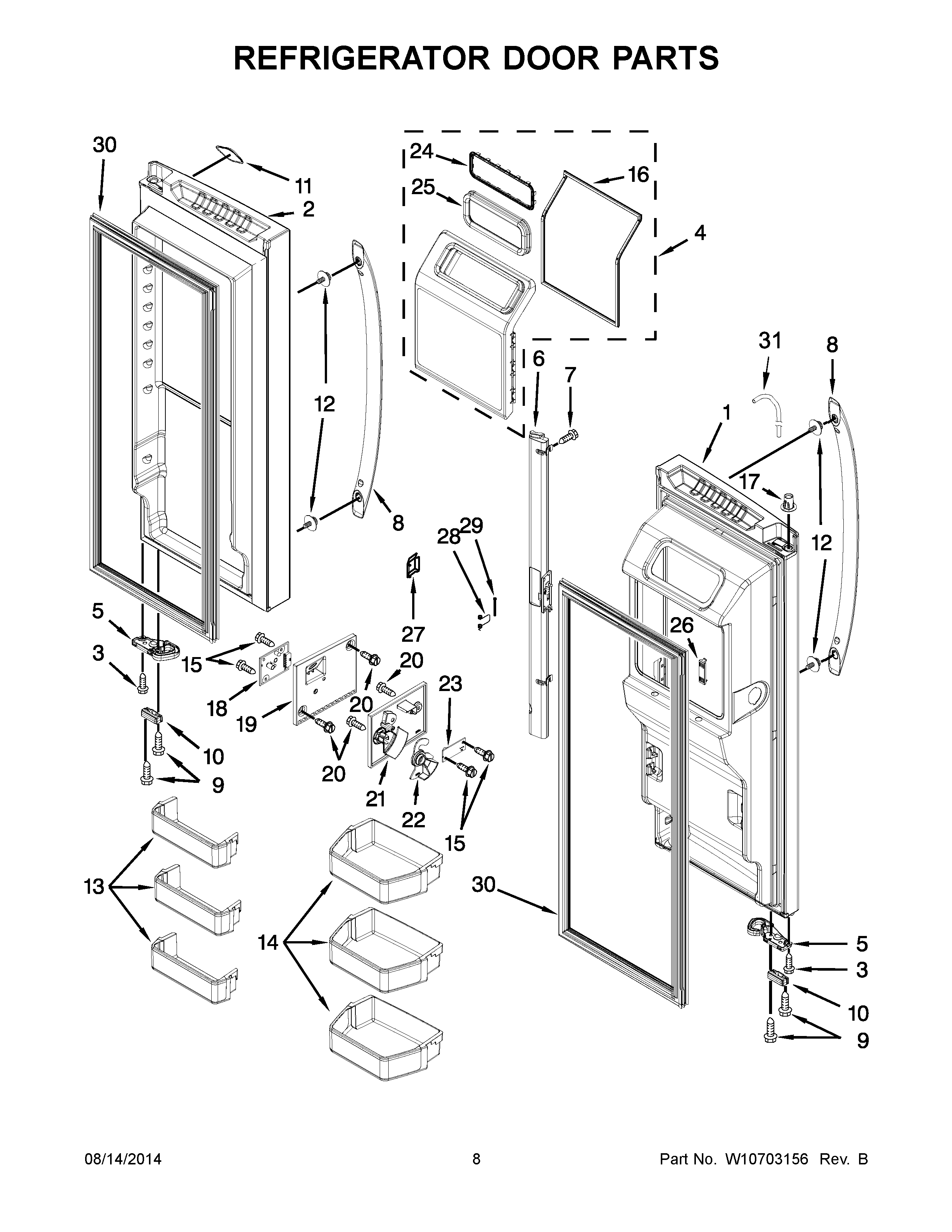

MFT2574DEH00 05 – REFRIGERATOR DOOR PARTS
Products
Position
Product
1
MAY W10307047
1B
MAY W10422783
1A
MAY W10422782
2B
MAY W10422771
2A
MAY W10422770
2
MAY W10307065
3
MAY W10464016
4
MAY W10549593
5
MAY W10681407
5A
MAY W10681408
6A
MAY W10654761
6B
MAY W10654762
6
MAY W10654760
7
MAY 12990204
8
MAY W10643725N
9
MAY 12990504
10
BUMPER, DOOR (WHITE)
10A
BUMPER, DOOR (BLACK)
10B
MAY W10407188
11
MAY W10612926
12
MAY W10460893
13
TRIVET ASSEMBLY
14
MAY W10522064
15
Screw (2)
16
MAY W10347085
17
CLIP, TUBE
18
MAY W10518658
19
MAY W10258510
20
SCREW (STAINLESS)
21
MAY W10258502
22
MAY W10258540
23
MAY W10518659
24
RETAINER, ICE CHUTE
25
MAY W10347087
26
MAY W10646855
27
DOOR, EMITTER
28
SPRING, DOOR
29
PIN, DOOR
30A
MAY W10407145
30
MAY W10249089
30B
MAY W10407146
31
TUBE-WATER
←
