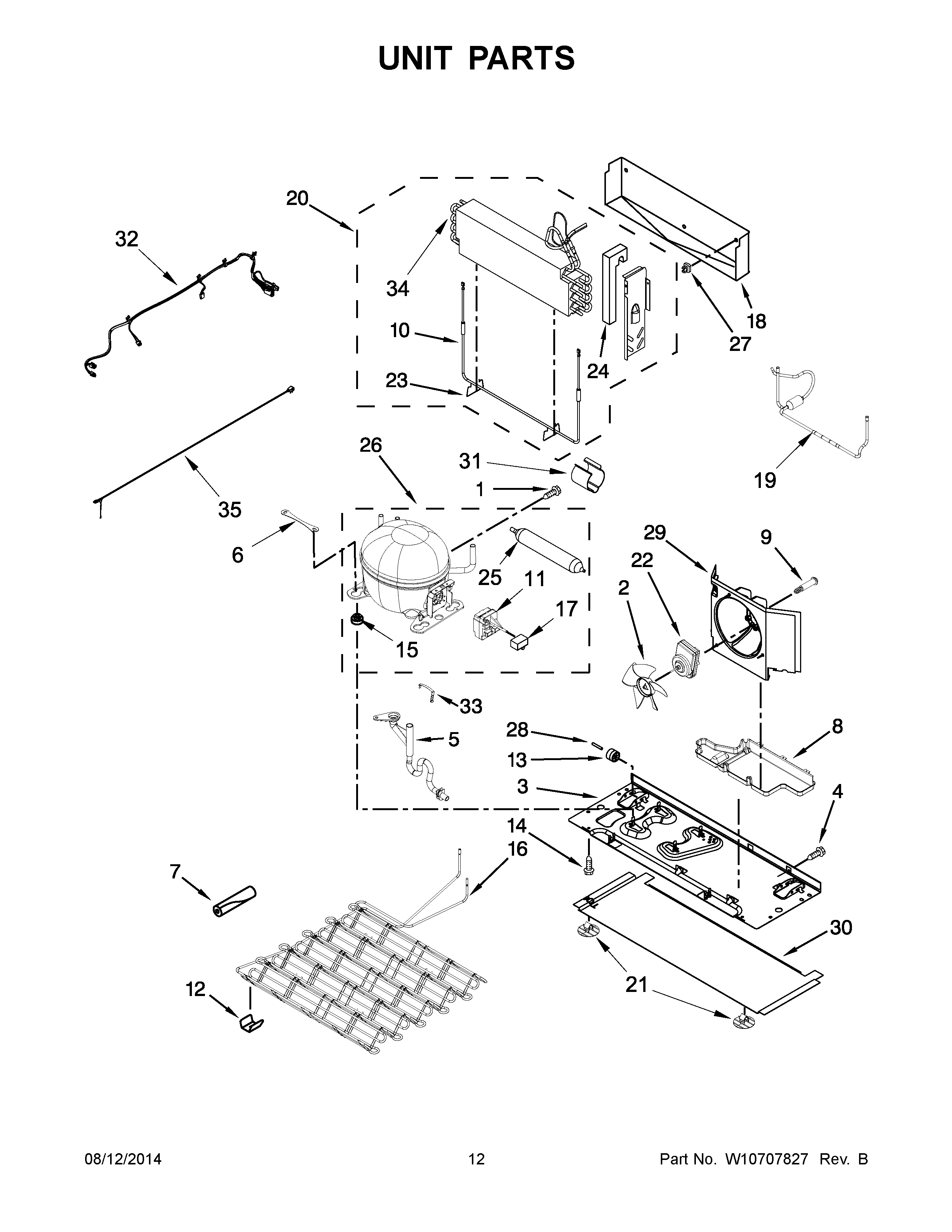

MFT2574DEH01 07 – UNIT PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
2	MAY 2188935
3	MAY W10570074
4	SCREW (10)
5	MAY W10553833
6	MAY W10236396
7	MAY W10303521
8	MAY W10655371
9	MAY W10622701
10	MAY 12729128
11	START DEVICE, COMBINATION (START RELAY AND OVERLOAD FOR PRODUCTION COMPRESSOR ONLY) (PRODUCTION)
12	CLIP, CONDENSER
13	Roller (2)
14	MAY 12992101
15	GROMMET
16	CONDENSER ASSEMBLY
17	MAY W10350564
18	MAY W10512220
19	MAY W10463542
20	MAY W10608485
21	CLIP, BOTTOM COVER
22	MAY 2188875
23	W11673433 Whirlpool Clip
24	MAY W10491355
25	Drier
26	MAY W10474685
27	MAY W10142294
28	Axle, Roller (2)
29	MAY W10406719
30	MAY W10278140
31	MAY W10281329
32	WIRE HARNESS
33	Clip, Retaining
34	ASSEMBLY, EVAPORATOR
35	MAY W10494227
