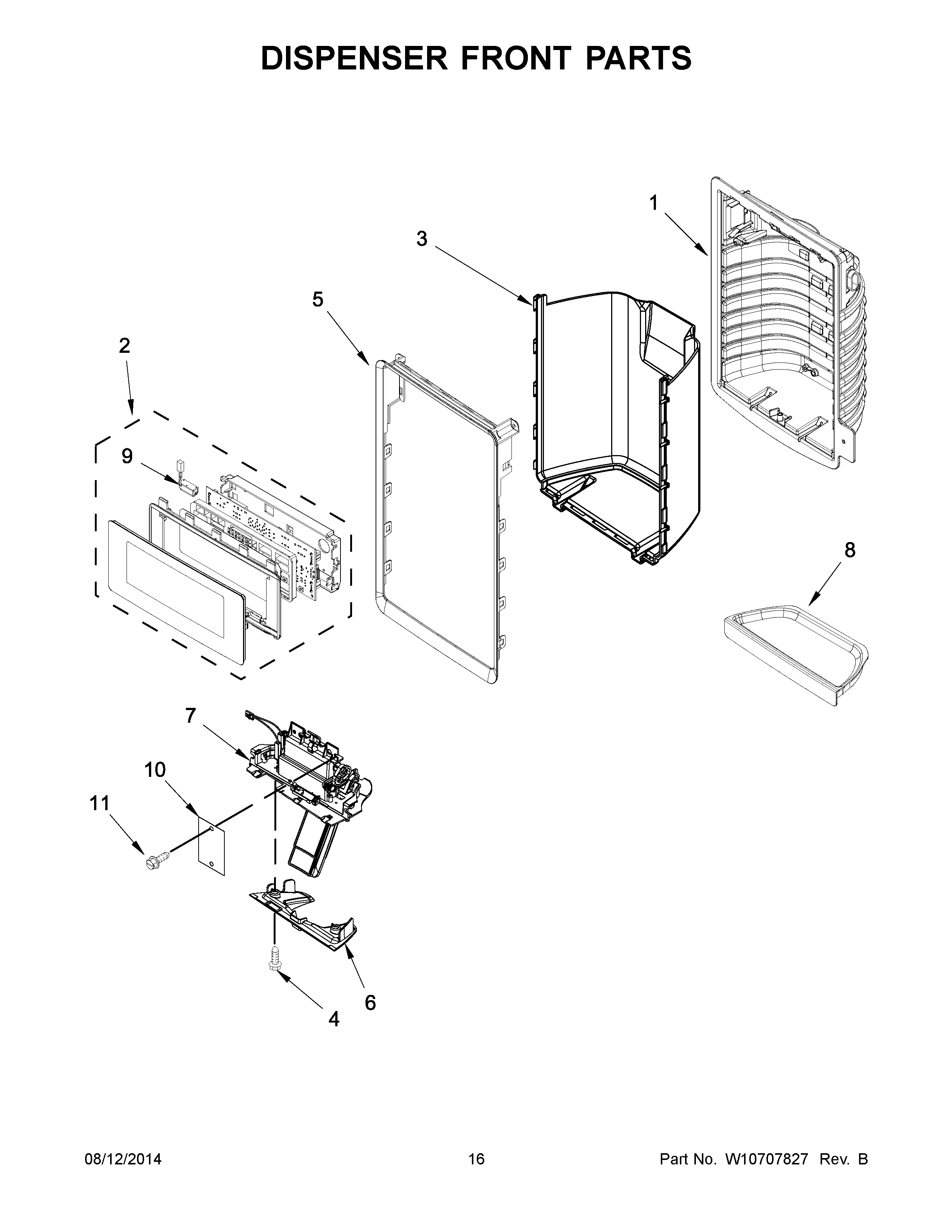

MFT2574DEH01 09 – DISPENSER FRONT PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2AUI ASSEMBLY (STAINLESS)
2UI ASSEMBLY (BLACK)
3AFALSE WALL, DISPENSER (BLACK)
3BFALSE WALL, DISPENSER (GREY)
3FALSE WALL, DISPENSER (WHITE)
4MAY 12990513
5BMAY W10587909
5AMAY W10587908
5MAY W10587907
6MAY W10560985
7BMAY W10616138
7AMAY W10616137
7MAY W10616136
8BMAY W10410105
8AMAY W10322873
8MAY W10322872
9ASSEMBLY, LED
10MAY W10572633
11SCREW
