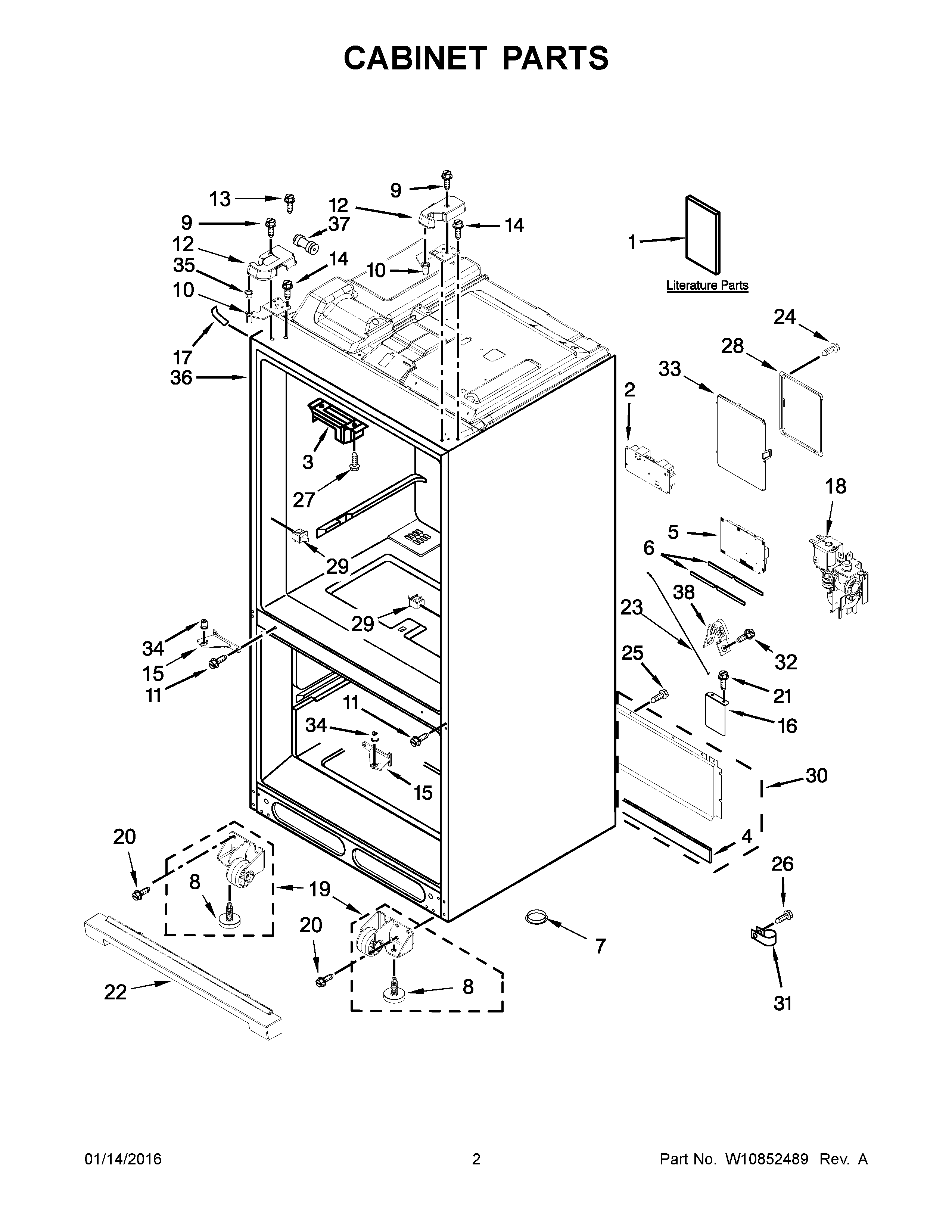

MFT2574DEH02 02 – CABINET PARTS

Products

Position	Product
1	MAY W10710876
1A	MAY W10695040
1B	MAY W10811276
1C	MAY W10811278
2	SUPPLY, POWER
3	MAY W10344432
4	MAY W10505487
5	MAY W10811363
6	GASKET, HV BOX
7	A3076901 Whirlpool Refrigerator Plug
8	Brake, Foot
9	MAY 12992602
10	HINGE, TOP (LEFT HAND)
10A	HINGE, TOP (RIGHT HAND)
11B	SCREW
11	MAY W10673841
11A	MAY W10403211
12E	MAY W10407158
12B	MAY W10471618
12C	MAY W10248562
12A	COVER, LEFT HINGE (BLACK)
12	MAY W10471615
12D	MAY W10407157
13	SCREW
14	SCREW
15C	HINGE, CENTER (RT) (WHITE)
15D	HINGE, CENTER (RT) (BLACK)
15A	HINGE, CENTER (LT) (BLACK)
15	HINGE, CENTER (LT) (WHITE)
15B	HINGE, CENTER (LEFT) (GREY)
15E	HINGE, CENTER (RIGHT) (GREY)
16	MAY W10336736
17B	COVER, CORNER (GREY)
17A	COVER, CORNER (BLACK)
17	Cover, Corner (2) (White)
18	VALVE, WATER
19	ROLLER ASSEMBLY (LEFT HAND)
19A	ROLLER ASSEMBLY (RIGHT HAND)
20	Screw (8)
21	MAY 12990701
22B	MAY W10637671
22	MAY W10637668
22A	MAY W10637669
23	MAY W10678712
24	SCREW
26	SCREW (10)
27	Screw (4)
28	MAY W10754591
29	MAY 12466105
30	MAY W10577369
31	CLAMP, TUBE
32	MAY W10141645
33	MAY W10277839
34	MAY W10505294
35	MAY W10212137
36	LINER (NOT A SERVICEABLE PART)
37	CONNECTOR, UNION
38	MAY 549193
