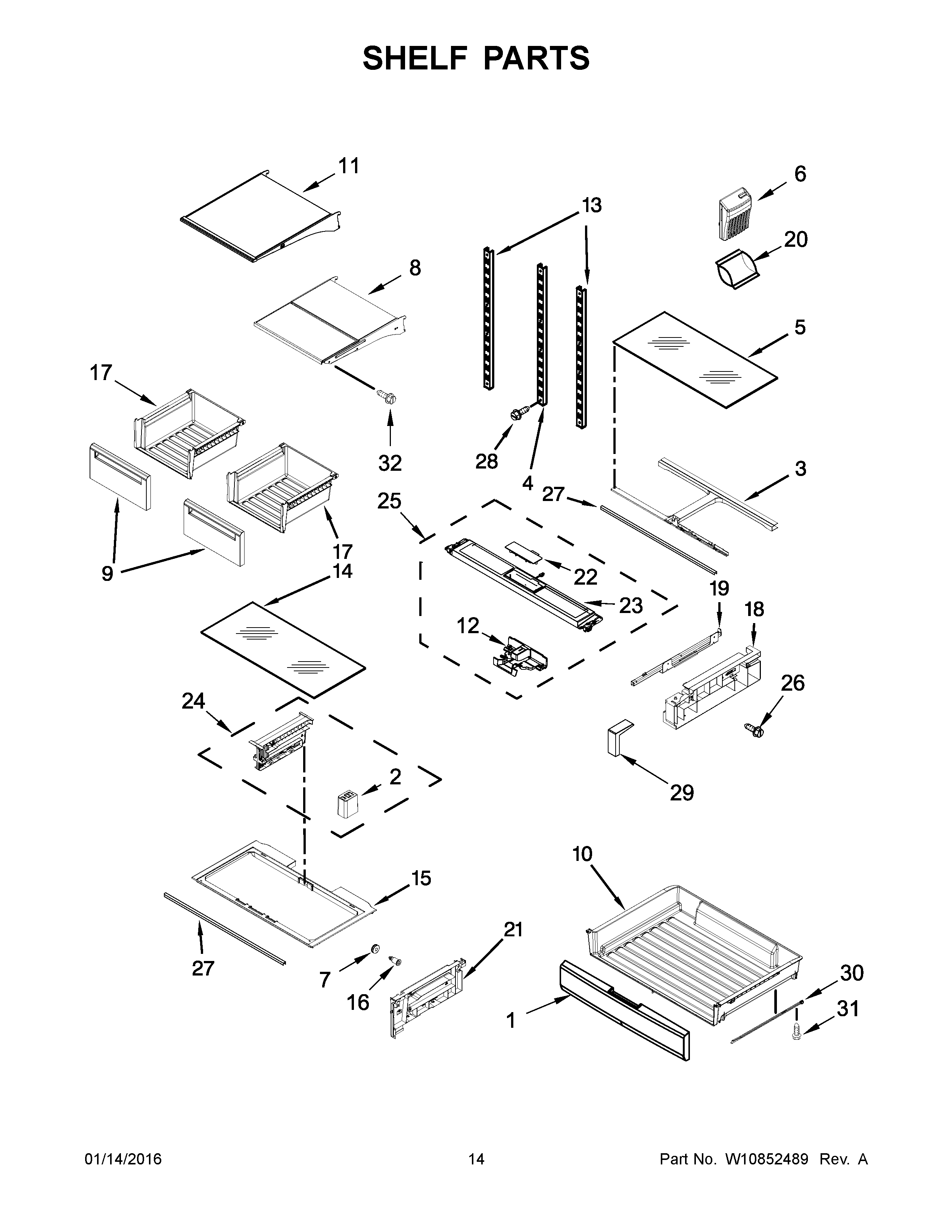

MFT2574DEH02 08 – SHELF PARTS

Products

Position	Product
1	MAY W10559660
2	MAY W10530315
3	MAY W10515051
4	MAY W10248516
5	MAY W10248799
6	MAY W10408748
7	MAY W10248544
8	SHELF-TUCK
9	FRONT ASSEMBLY, CRISPER
10	MAY W10498901
11	SHELF ASSEMBLY
12	MAY W10512596
13	MAY W10372170
14	MAY W10248578
15	MAY W10717574
16	MAY W10257246
17	MAY W10410352
18	MAY W10248798
18A	MAY W10248796
19A	MAY W10508326
19	MAY W10508327
20	MAY W10346771
21	MAY W10530311
21A	MAY W10530310
22	HOUSING, PANTRY TEMP CONTROL
23	MAY W10525200
24	TRACK ASSEMBLY, CRISPER
25	COVER ASSEMBLY, FRONT PANTRY
26	MAY W10185612
27	MAY W10236512
28	MAY W10423560
29	MAY W10426799
29A	MAY W10426797
30A	RUNNER, PANTRY ROLLER (RIGHT HAND)
30	RUNNER, PANTRY ROLLER (LEFT HAND)
31	SCREW
32	MAY W10421495
