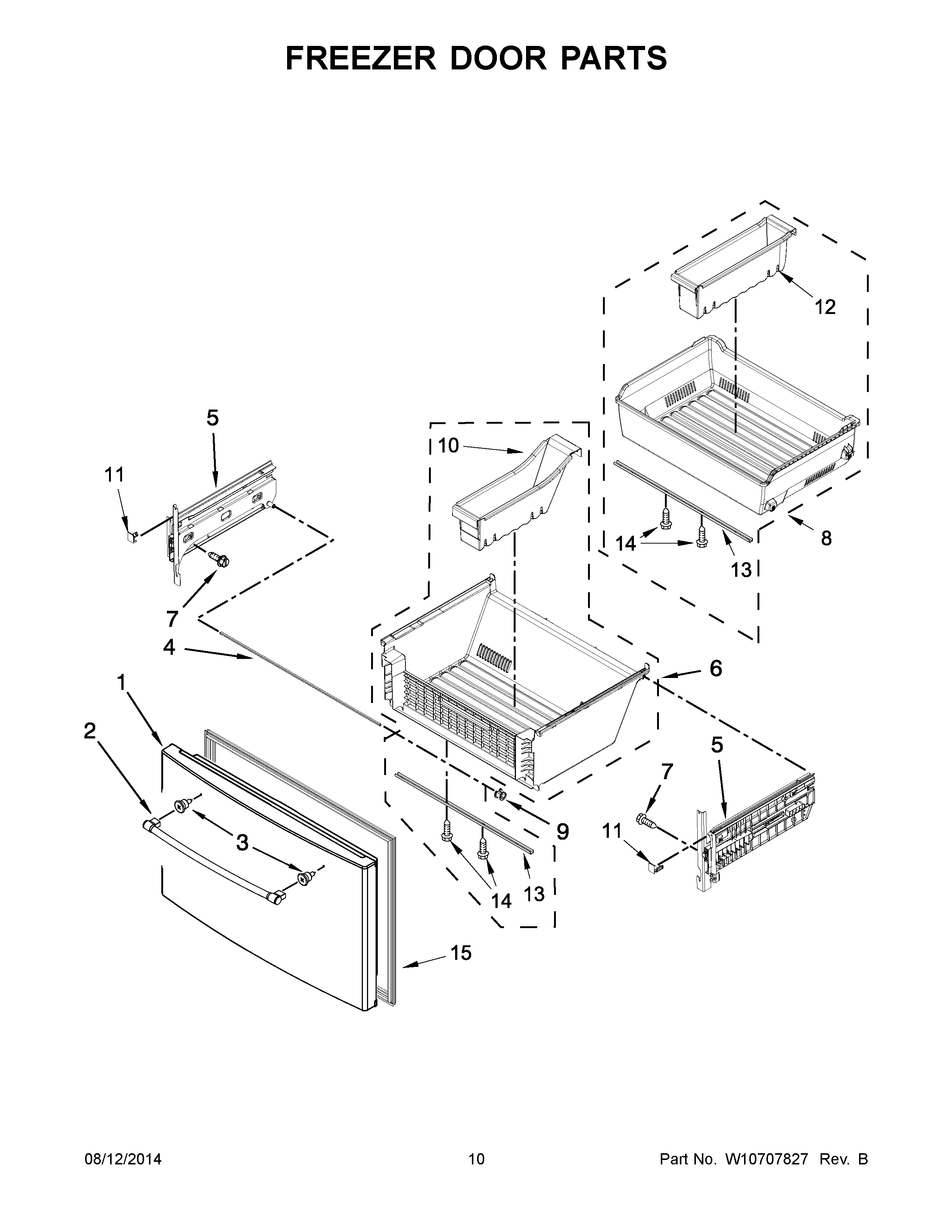

MFT2574DEM01 06 – FREEZER DOOR PARTS

MFT2574DEM01 06 – FREEZER DOOR PARTS

Written by

in

MFT2574DEM01 06 – FREEZER DOOR PARTS

Products

PositionProduct
1BMAY W10695007
1AMAY W10695006
1MAY W10695005
2MAY W10663448N
3MAY W10460893
4MAY W10503521
5MAY W10625067
5AMAY W10625068
6PAN ASSEMBLY, LOWER
7SCREW
8MAY W10557676
9MAY W10248509
10MAY W10507444
11AMAY W10485089
11MAY W10485096
12MAY W10485654
13SUPPORT, PAN
14SCREW (STAINLESS)
15BMAY W10248749
15AMAY W10248748
15MAY W10587578
