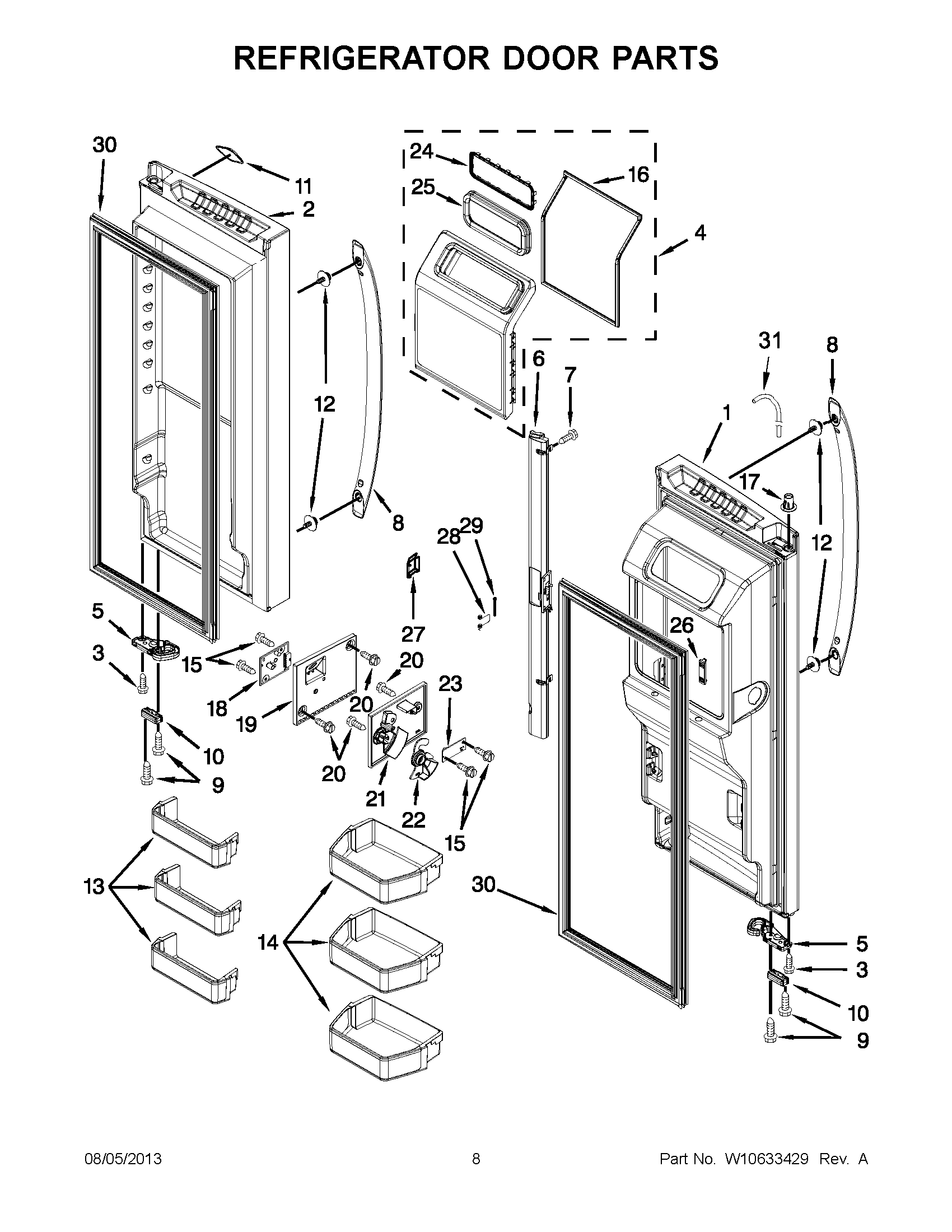

MFT2672AEM11 05 – REFRIGERATOR DOOR PARTS
Written by
in
MFT2672AEM11 05 – REFRIGERATOR DOOR PARTS
Products
Position
Product
1
MAY W10422782
1
MAY W10422783
1
MAY W10307047
2
MAY W10307065
2
MAY W10422770
2
MAY W10422771
3
MAY W10464016
4
MAY W10492473
5
MAY W10355634
5
MAY W10372267
6
MAY W10407253
6
MAY W10407254
6
MAY W10407252
7
MAY 12990204
8
MAY W10439227
8
HANDLE, DOOR (WHITE)
8
MAY W10439229
9
MAY 12990504
10
BUMPER, DOOR (BLACK)
10
BUMPER, DOOR (WHITE)
10
MAY W10407188
11
Nameplate
12
MAY W10460893
13
TRIVET ASSEMBLY
14
MAY W10522064
15
Screw (2)
16
MAY W10347085
17
CLIP, TUBE
18
MAY W10518658
19
MAY W10258510
20
SCREW (STAINLESS)
21
MAY W10258502
22
MAY W10258540
23
MAY W10518659
24
RETAINER, ICE CHUTE
25
MAY W10347087
26
MAY W10347053
27
DOOR, EMITTER
28
SPRING, DOOR
29
PIN, DOOR
30
MAY W10407146
30
MAY W10407145
30
MAY W10249089
31
TUBE-WATER
←
