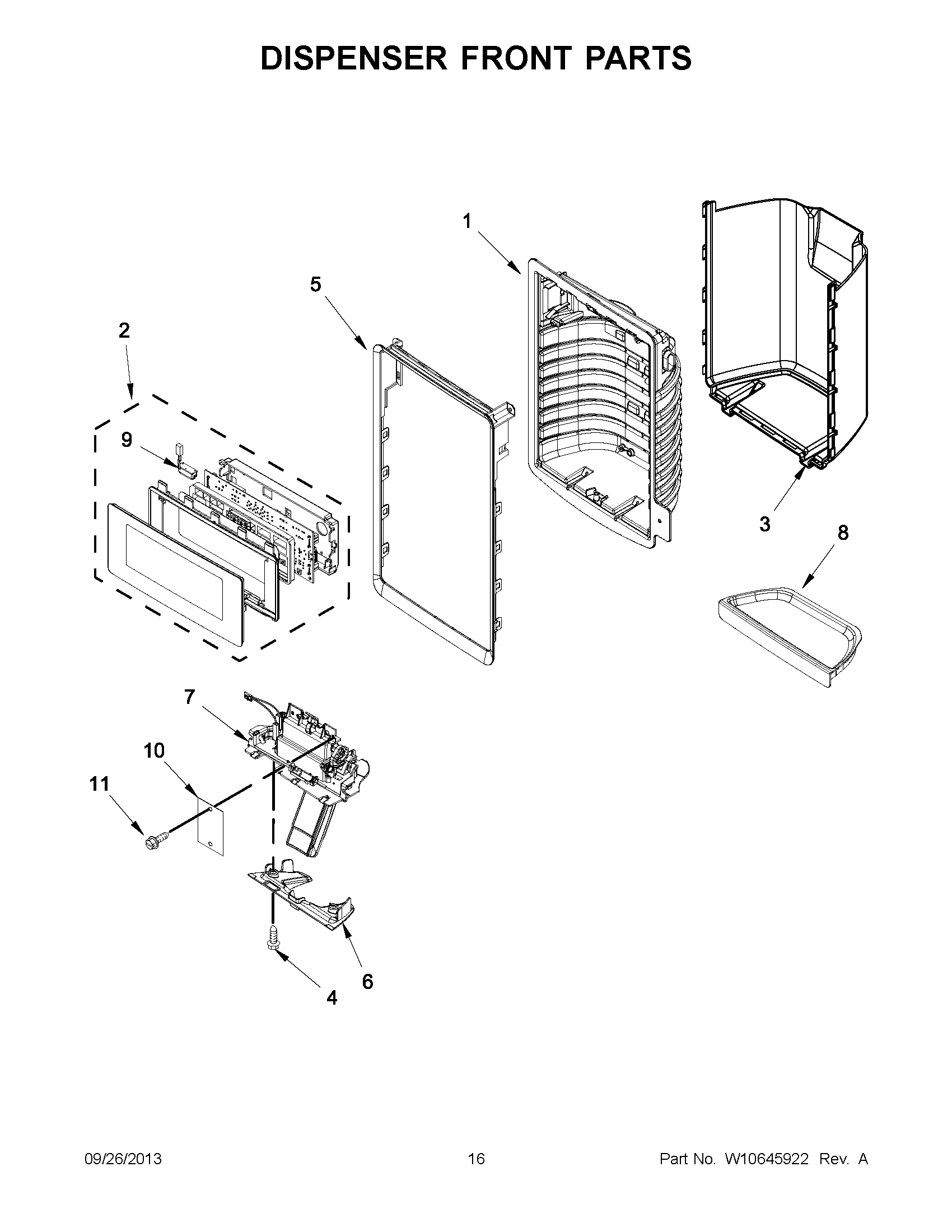

MFT2672AEM12 09 – DISPENSER FRONT PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	UI ASSEMBLY (STAINLESS)
2	UI ASSEMBLY (WHITE)
2	UI ASSEMBLY (BLACK)
3	FALSE WALL, DISPENSER (GREY)
3	FALSE WALL, DISPENSER (BLACK)
3	FALSE WALL, DISPENSER (WHITE)
4	MAY 12990513
5	MAY W10587908
5	MAY W10587909
5	MAY W10587907
6	MAY W10560985
7	MAY W10403776
7	MAY W10403774
7	MAY W10403775
8	MAY W10410105
8	MAY W10322873
8	MAY W10322872
9	ASSEMBLY, LED
10	MAY W10572633
11	SCREW
