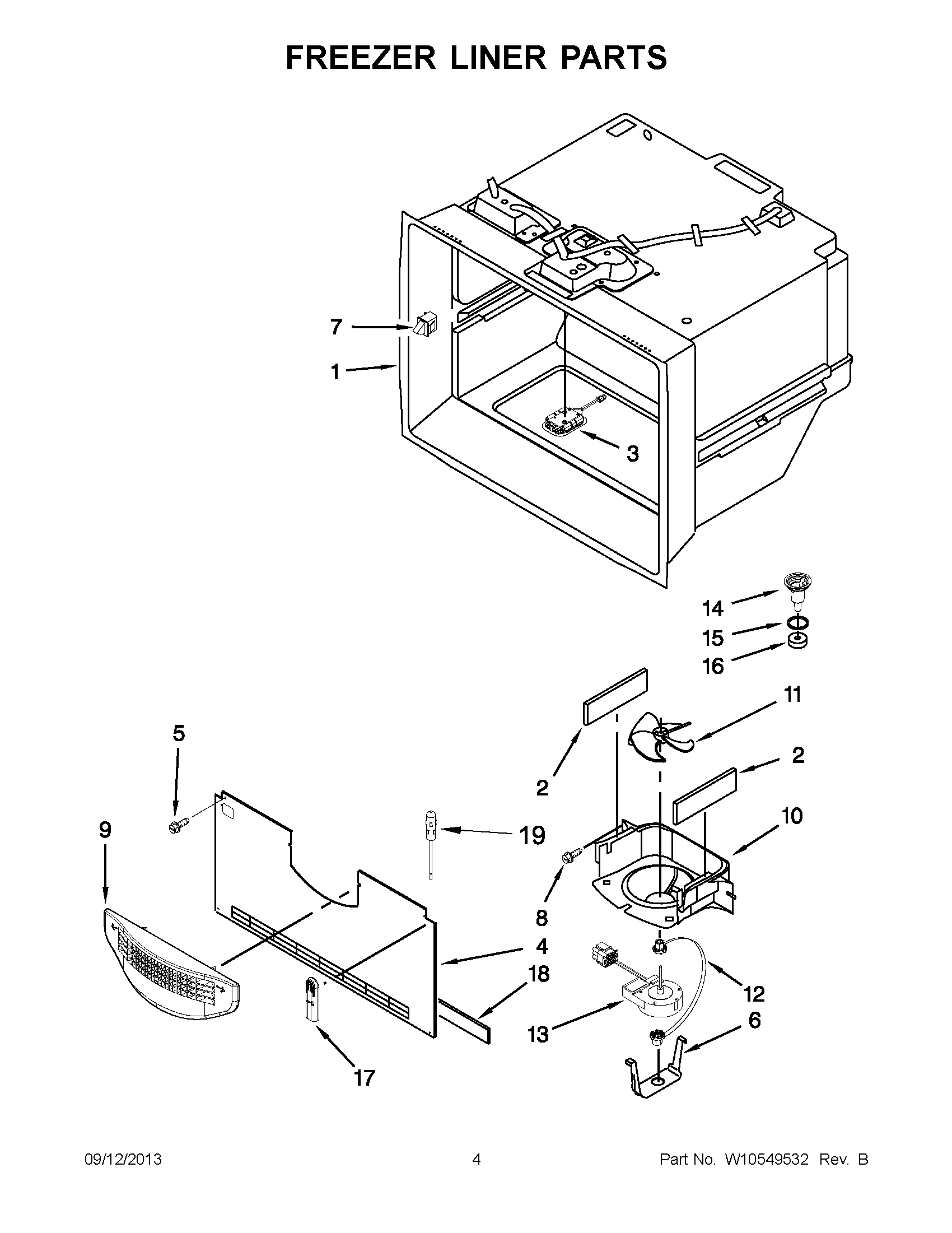

MFT2672AEW10 03 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	Gasket, Bottom
3	MAY W10456436
4	MAY W10513428
5	SCREW (10)
6	MAY 12956601
7	SWITCH, LIGHT (2)
8	MAY 12990504
9	GRILLE, AIR (FREEZER)
10	SHROUD, EVAPORATOR FAN
11	Blade, Fan (Evaporator)
12	Grommet, Fan Motor (2)
13	MOTOR, EVAPORATOR (INCLUDES HARNESS,THERMISTOR, & DEFROST THERMOSTAT)
14	ASSEMBLY, DRAIN FUNNEL
15	MAY M0500703
16	Gasket
17	MAY W10405166
18	MAY W10531268
19	THERMISTOR
