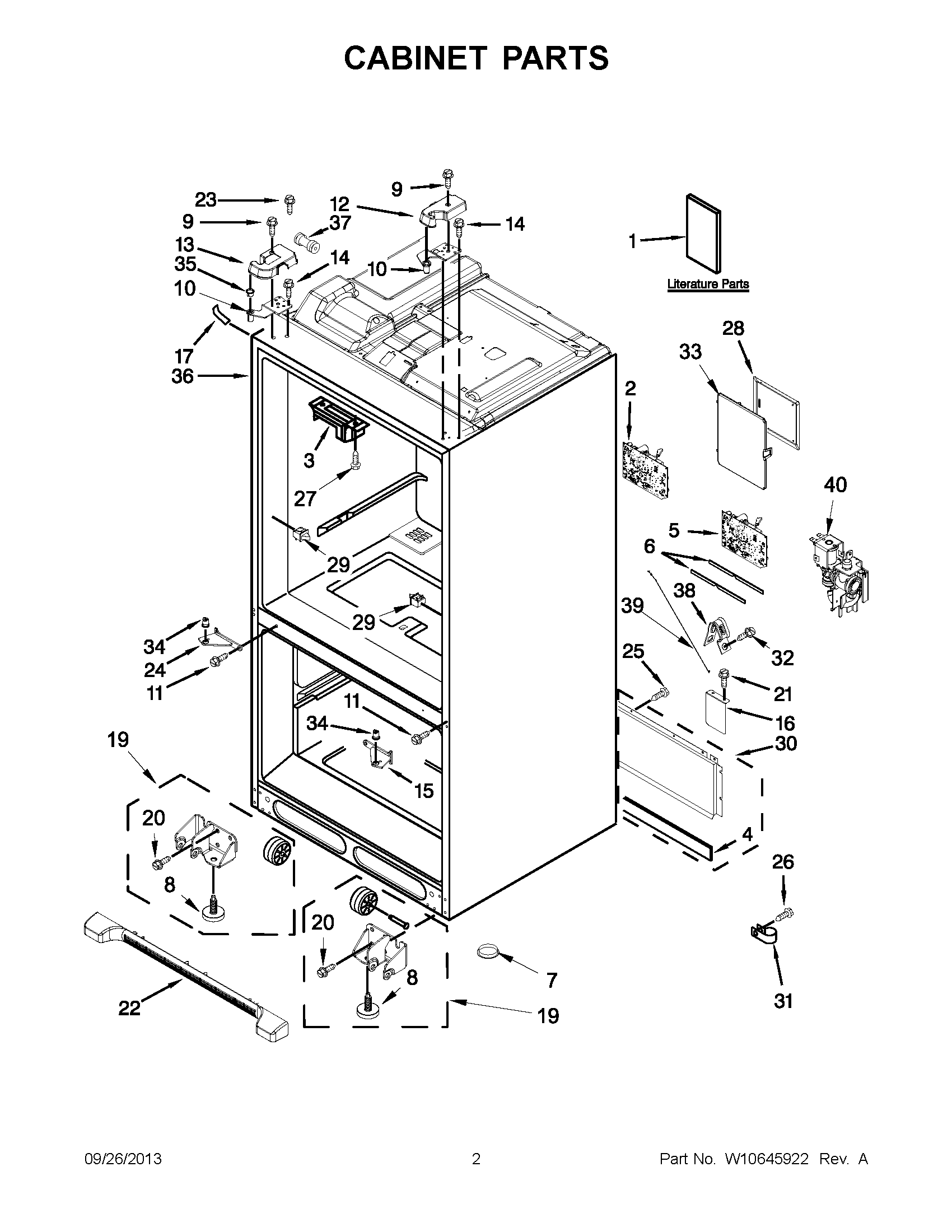

MFT2672AEW12 02 – CABINET PARTSadmin2025-04-26T09:06:50+00:00MFT2672AEW12 02 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | MAY W10558103 |
| 1 | MAY W10617369 |
| 1 | MAY W10565055 |
| 2 | SUPPLY, POWER |
| 3 | MAY W10344432 |
| 4 | MAY W10505487 |
| 5 | MAY W10589838 |
| 6 | GASKET, HV BOX |
| 7 | A3076901 Whirlpool Refrigerator Plug |
| 8 | Brake, Foot |
| 9 | MAY 12992602 |
| 10 | HINGE, TOP (LEFT HAND) |
| 10 | HINGE, TOP (RIGHT HAND) |
| 11 | MAY W10403208 |
| 11 | MAY W10403211 |
| 11 | SCREW |
| 12 | MAY W10407158 |
| 12 | MAY W10248562 |
| 12 | MAY W10407157 |
| 13 | MAY W10471618 |
| 13 | COVER, LEFT HINGE (BLACK) |
| 13 | MAY W10471615 |
| 14 | SCREW (BLACK) |
| 15 | HINGE, CENTER (RT) (BLACK) |
| 15 | HINGE, CENTER (RT) (WHITE) |
| 15 | HINGE, CENTER (RIGHT) (GREY) |
| 16 | MAY W10336736 |
| 17 | Cover, Corner (2) (White) |
| 17 | COVER, CORNER (BLACK) |
| 17 | COVER, CORNER (GREY) |
| 19 | ROLLER ASSEMBLY (RIGHT HAND) |
| 19 | ROLLER ASSEMBLY (LEFT HAND) |
| 20 | Screw (8) |
| 21 | MAY 12990701 |
| 22 | MAY W10637669 |
| 22 | MAY W10637671 |
| 22 | MAY W10637668 |
| 23 | SCREW |
| 24 | HINGE, CENTER (LEFT) (GREY) |
| 24 | HINGE, CENTER (LT) (WHITE) |
| 24 | HINGE, CENTER (LT) (BLACK) |
| 26 | SCREW (10) |
| 27 | Screw (4) |
| 28 | MAY W10485658 |
| 29 | MAY 12466105 |
| 30 | MAY W10577369 |
| 31 | CLAMP, TUBE |
| 32 | MAY W10141645 |
| 33 | MAY W10277839 |
| 34 | MAY W10505294 |
| 35 | MAY W10212137 |
| 36 | LINER (NOT A SERVICEABLE PART) |
| 37 | CONNECTOR, UNION |
| 38 | MAY 549193 |
| 39 | TUBE, WATER |
| 40 | VALVE, WATER |
