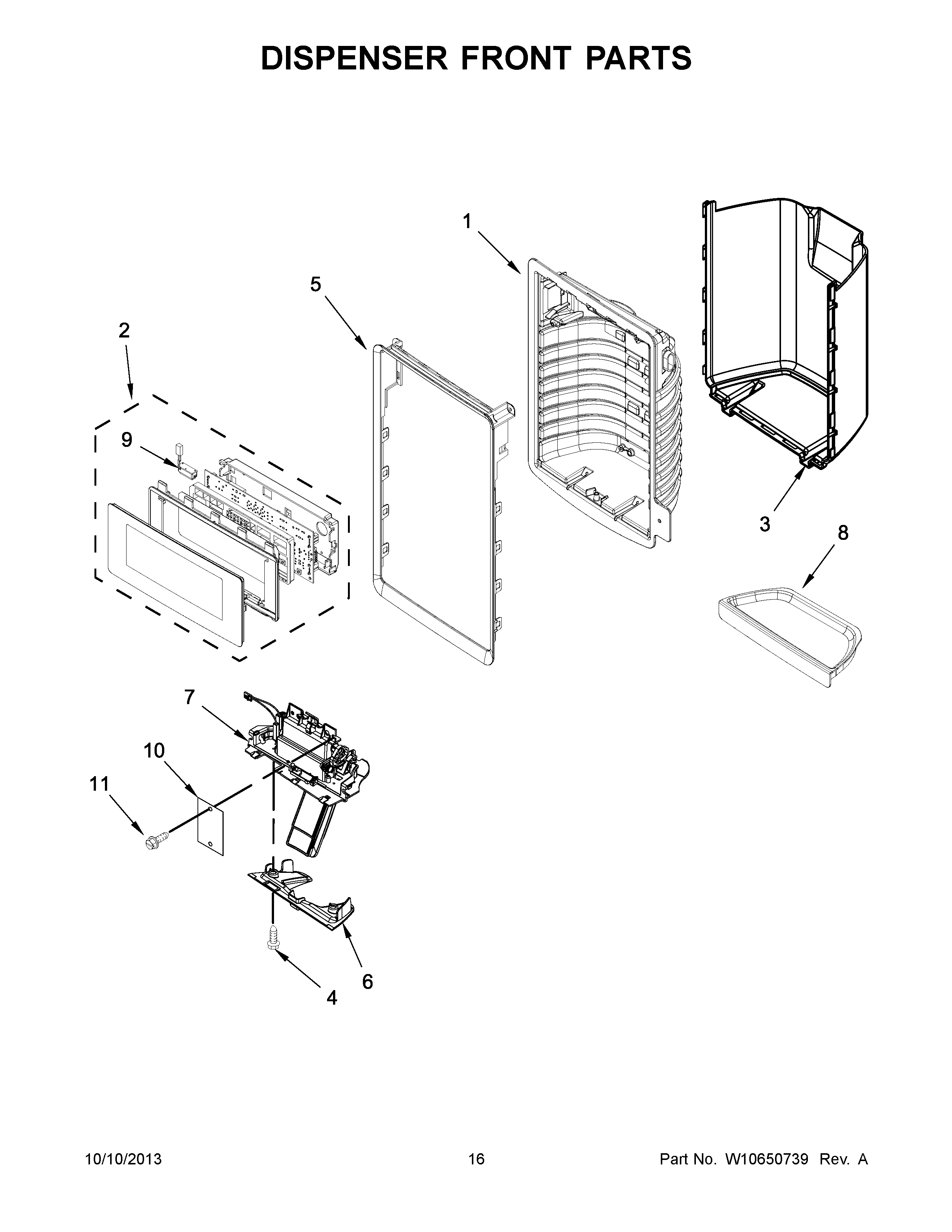

MFT2673BEB11 09 – DISPENSER FRONT PARTS

MFT2673BEB11 09 – DISPENSER FRONT PARTS

Written by

in

MFT2673BEB11 09 – DISPENSER FRONT PARTS

Products

PositionProduct
2UI ASSEMBLY (WHITE)
2UI ASSEMBLY (STAINLESS)
2UI ASSEMBLY (BLACK)
3FALSE WALL, DISPENSER (WHITE)
3FALSE WALL, DISPENSER (GREY)
3FALSE WALL, DISPENSER (BLACK)
4MAY 12990513
5MAY W10587909
5MAY W10587907
5MAY W10587908
6MAY W10560985
7LINER (NOT A SERVICEABLE PART)
8MAY W10410105
8MAY W10322873
8MAY W10322872
9ASSEMBLY, LED
10MAY W10572633
11SCREW
