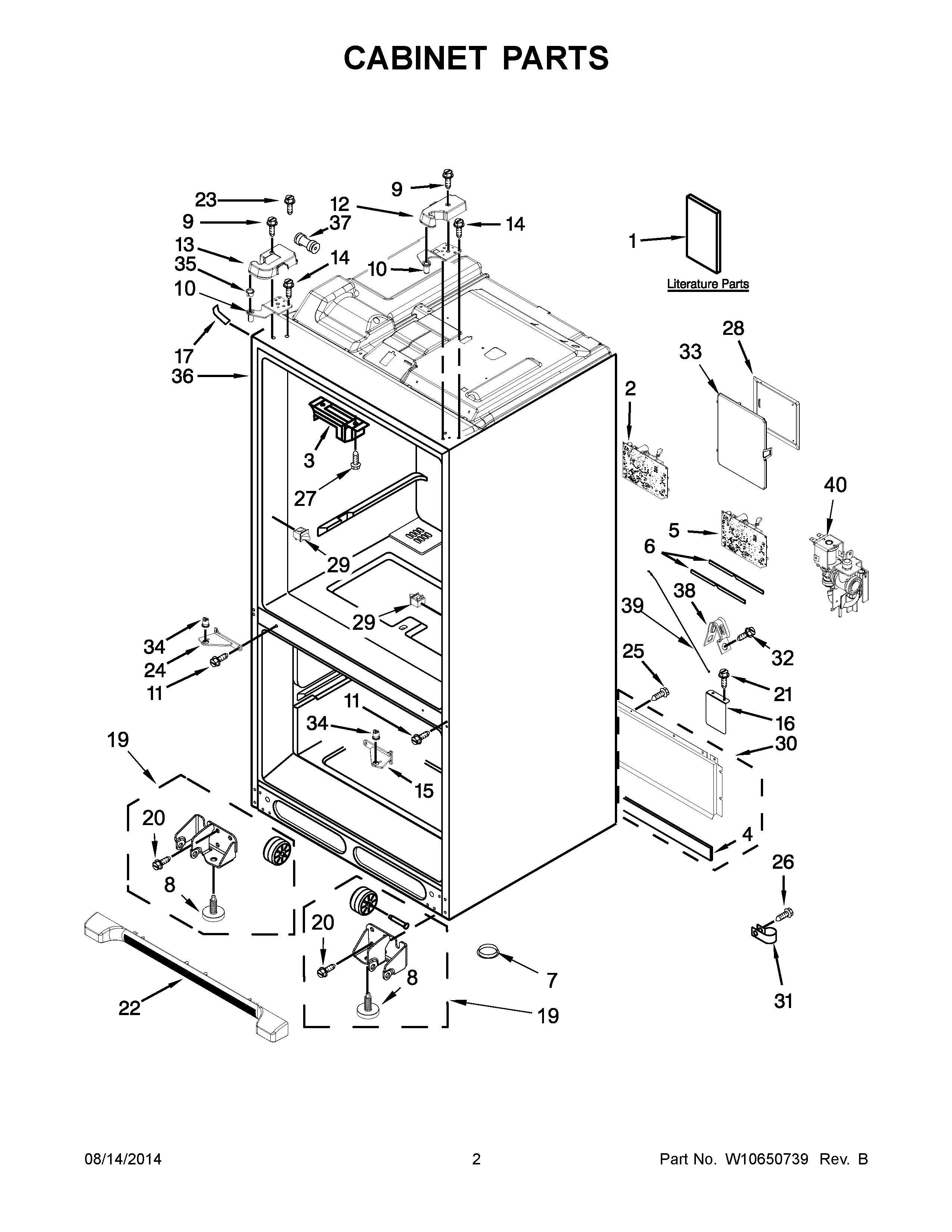

MFT2673BEB12 02 – CABINET PARTS

Products

Position	Product
1B	MAY W10568023
1A	MAY W10566389
1	MAY W10671502
2	SUPPLY, POWER
3	MAY W10344432
4	MAY W10505487
5	MAY W10589838
6	GASKET, HV BOX
7	A3076901 Whirlpool Refrigerator Plug
8	Brake, Foot
9	MAY 12992602
10	HINGE, TOP (RIGHT HAND)
10A	HINGE, TOP (LEFT HAND)
11B	SCREW
11A	MAY W10403211
11	MAY W10403208
12B	MAY W10407158
12	MAY W10248562
12A	MAY W10407157
13B	MAY W10471618
13A	COVER, LEFT HINGE (BLACK)
13	MAY W10471615
14	SCREW (BLACK)
15	HINGE, CENTER (RT) (WHITE)
15A	HINGE, CENTER (RT) (BLACK)
15B	HINGE, CENTER (RIGHT) (GREY)
16	MAY W10336736
17	Cover, Corner (2) (White)
17B	COVER, CORNER (GREY)
17A	COVER, CORNER (BLACK)
19A	ROLLER ASSEMBLY (LEFT HAND)
19	ROLLER ASSEMBLY (RIGHT HAND)
20	Screw (8)
21	MAY 12990701
22A	MAY W10637669
22	MAY W10637668
22B	MAY W10637671
23	SCREW
24	HINGE, CENTER (LT) (WHITE)
24A	HINGE, CENTER (LT) (BLACK)
24B	HINGE, CENTER (LEFT) (GREY)
26	SCREW (10)
27	Screw (4)
28	MAY W10485658
29	MAY 12466105
30	MAY W10577369
31	CLAMP, TUBE
32	MAY W10141645
33	MAY W10277839
34	MAY W10505294
35	MAY W10212137
36	LINER (NOT A SERVICEABLE PART)
37	CONNECTOR, UNION
38	MAY 549193
39	MAY W10678712
40	VALVE, WATER
