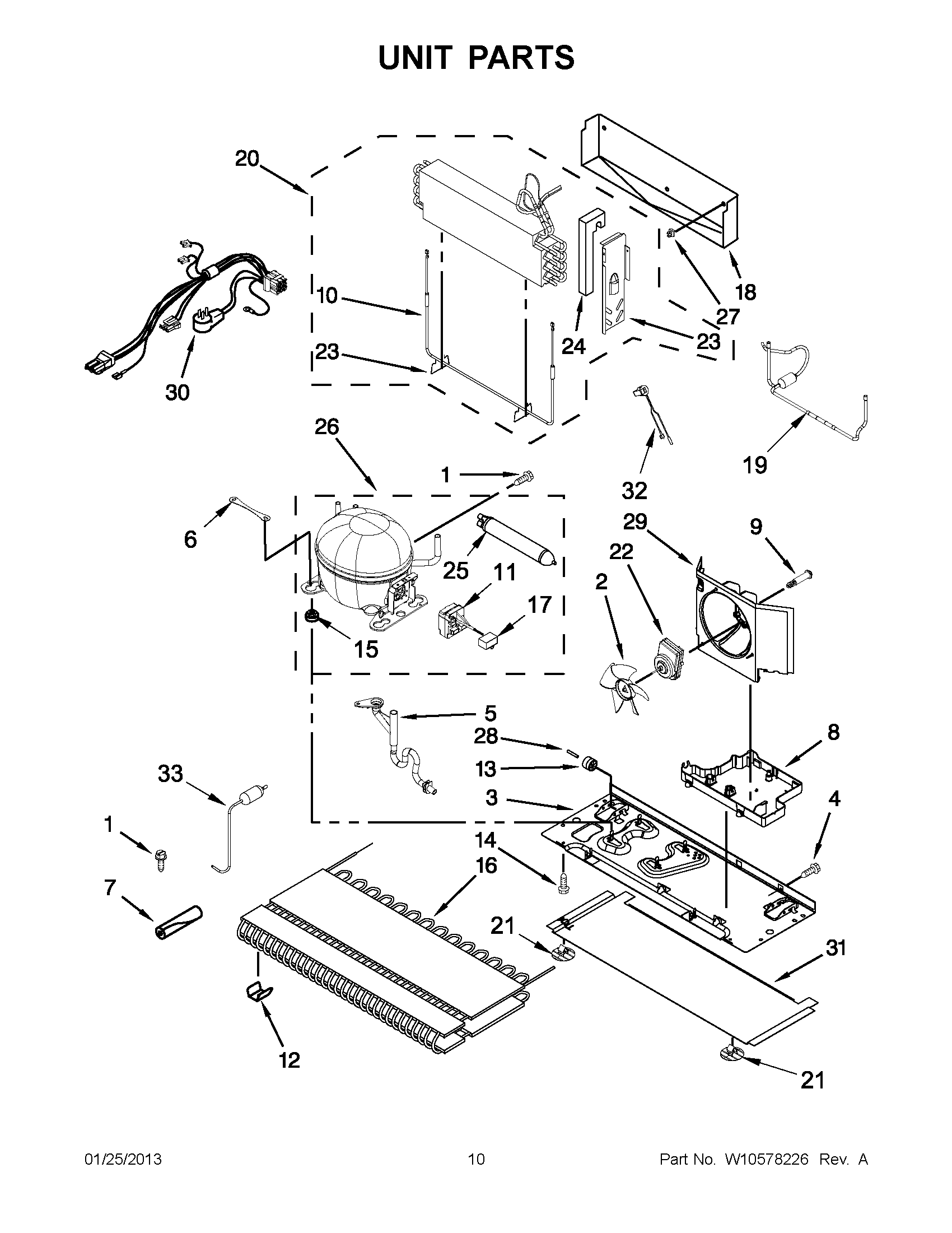

MFT2673BEM10 05 – UNIT PARTSadmin2025-04-26T09:06:55+00:00MFT2673BEM10 05 – UNIT PARTS
Products
| Position | Product |
|---|
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | Valve, Access (1/2``) |
| NI | VALVE, ACCESS (3/8``) |
| NI | Valve, Access (5/16``) |
| NI | VALVE, ACCESS (1/4``) |
| NI | MAY 876764 |
| NI | Valve, Access (3/4``) |
| NI | Valve, Access (5/8``) |
| 2 | Fan, Blade |
| 3 | MAY W10248414 |
| 4 | SCREW (10) |
| 5 | MAY W10384378 |
| 6 | MAY W10236396 |
| 7 | MAY W10303521 |
| 8 | MAY W10238584 |
| 9 | MAY W10216919 |
| 10 | MAY 12729122 |
| 11 | START DEVICE, COMBINATION (START RELAY AND OVERLOAD FOR PRODUCTION COMPRESSOR ONLY) (PRODUCTION) |
| 12 | CLIP, CONDENSER |
| 13 | Roller (2) |
| 14 | MAY 12992101 |
| 15 | GROMMET |
| 16 | MAY W10458003 |
| 17 | MAY W10350564 |
| 18 | MAY W10512220 |
| 19 | MAY W10463542 |
| 20 | MAY W10492011 |
| 21 | CLIP, BOTTOM COVER |
| 22 | MOTOR, CONDENSOR |
| 23 | W11673433 Whirlpool Clip |
| 24 | MAY W10491355 |
| 25 | Drier |
| 26 | MAY W10474685 |
| 27 | MAY W10142294 |
| 28 | Axle, Roller (2) |
| 29 | MAY W10406719 |
| 30 | MAY W10494227 |
| 31 | MAY W10278140 |
| 32 | MOTOR, EVAPORATOR (INCLUDES HARNESS,THERMISTOR, & DEFROST THERMOSTAT) |
| 33 | MAY W10467035 |
