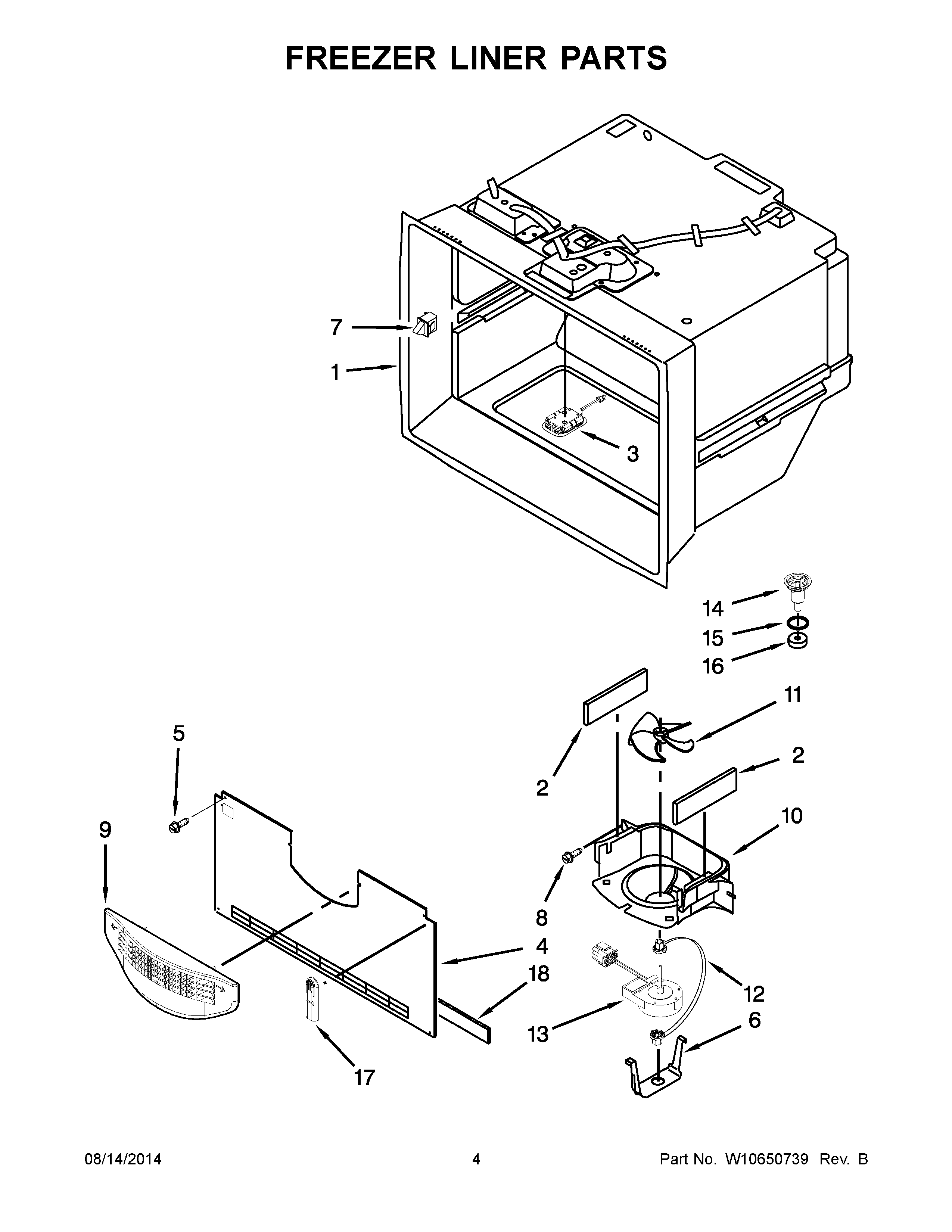

MFT2673BEM12 03 – FREEZER LINER PARTSadmin2025-04-26T09:05:43+00:00MFT2673BEM12 03 – FREEZER LINER PARTS
Products
| Position | Product |
|---|
| 1 | LINER (NOT A SERVICEABLE PART) |
| 2 | Gasket, Bottom |
| 3 | MAY W10456436 |
| 4 | MAY W10513428 |
| 5 | SCREW (10) |
| 6 | MAY 12956601 |
| 7 | SWITCH, LIGHT (2) |
| 8 | MAY 12990504 |
| 9 | GRILLE, AIR (FREEZER) |
| 10 | SHROUD, EVAPORATOR FAN |
| 11 | Blade, Fan (Evaporator) |
| 12 | Grommet, Fan Motor (2) |
| 13 | MOTOR, EVAPORATOR (INCLUDES HARNESS,THERMISTOR, & DEFROST THERMOSTAT) |
| 14 | ASSEMBLY, DRAIN FUNNEL |
| 15 | MAY M0500703 |
| 16 | Gasket |
| 17 | MAY W10405166 |
| 18 | MAY W10531268 |
