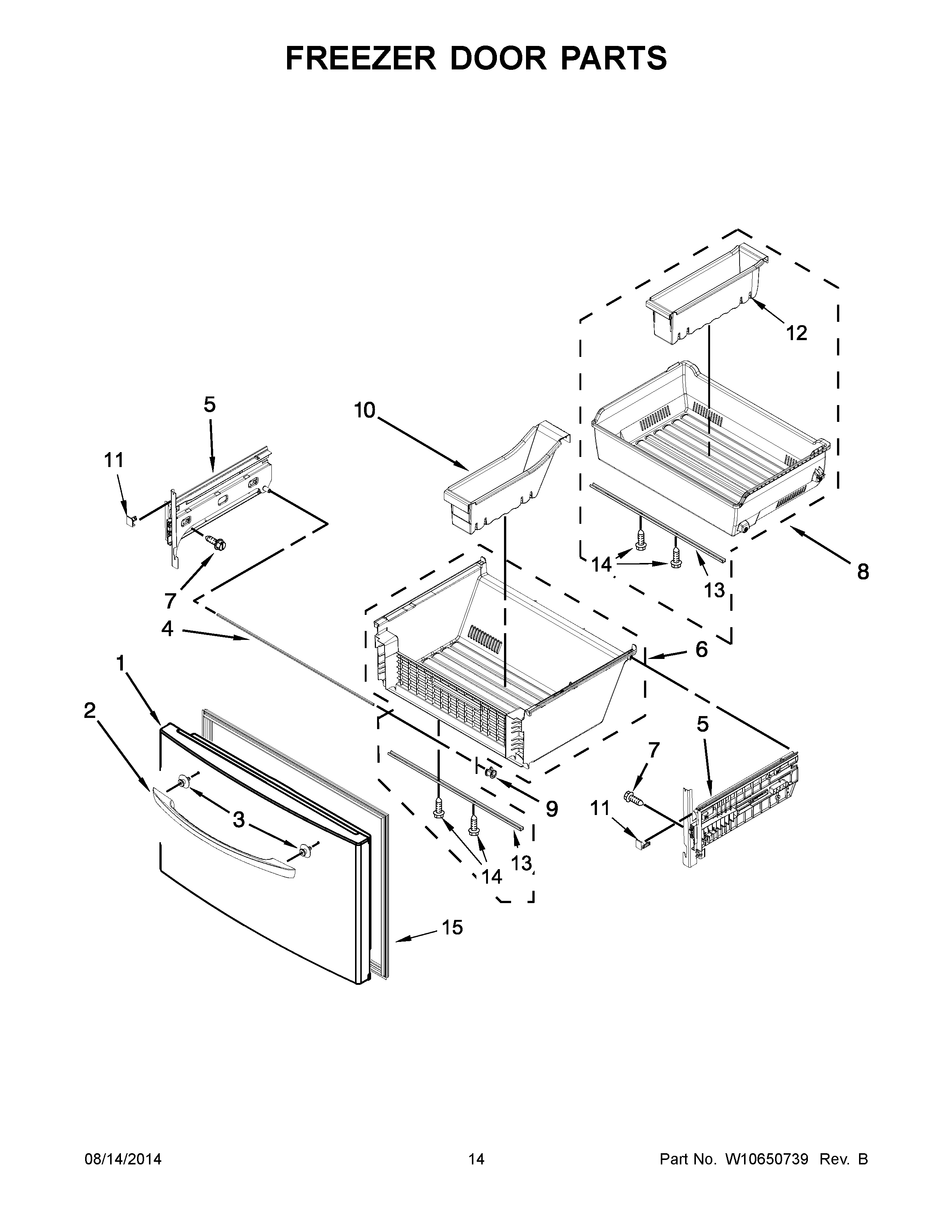

MFT2673BEM12 08 – FREEZER DOOR PARTS

MFT2673BEM12 08 – FREEZER DOOR PARTS

Written by

in

MFT2673BEM12 08 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR (WHITE)
1BMAY W10422791
1AFREEZER DOOR (BLACK)
2AMAY W10439225
2BMAY W10439226
2MAY W10439057
3MAY W10460893
4MAY W10503521
5AMAY W10625068
5MAY W10625067
6PAN ASSEMBLY, LOWER
7SCREW
8MAY W10557676
9MAY W10248509
10MAY W10507444
11MAY W10485096
11AMAY W10485089
12MAY W10485654
13SUPPORT, PAN
14SCREW (STAINLESS)
15BMAY W10248749
15AMAY W10248748
15MAY W10587578
