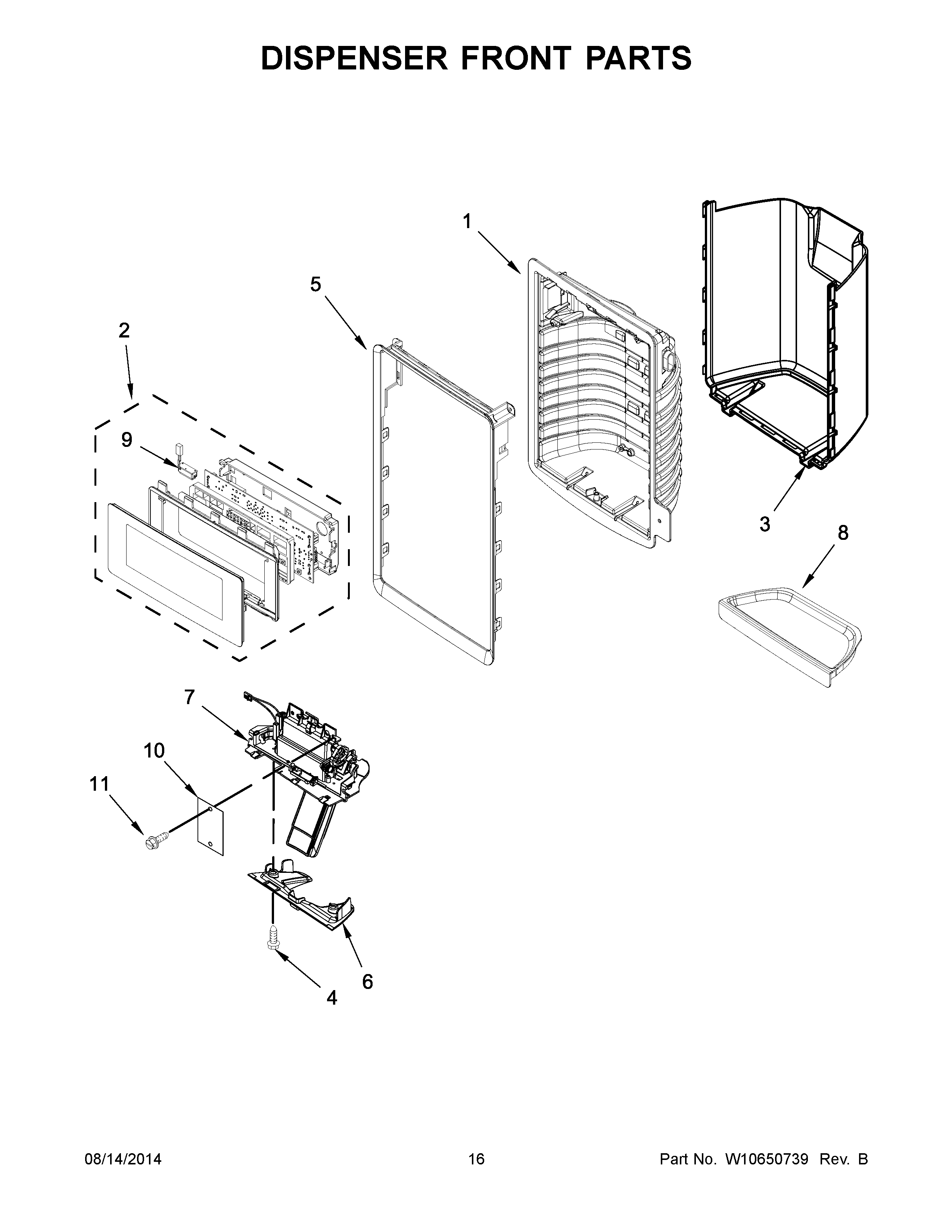

MFT2673BEM12 09 – DISPENSER FRONT PARTS

MFT2673BEM12 09 – DISPENSER FRONT PARTS

Written by

in

MFT2673BEM12 09 – DISPENSER FRONT PARTS

Products

Position	Product
2A	UI ASSEMBLY (STAINLESS)
2	UI ASSEMBLY (BLACK)
3	FALSE WALL, DISPENSER (WHITE)
3B	FALSE WALL, DISPENSER (GREY)
3A	FALSE WALL, DISPENSER (BLACK)
4	MAY 12990513
5B	MAY W10587909
5	MAY W10587907
5A	MAY W10587908
6	MAY W10560985
7	LINER (NOT A SERVICEABLE PART)
8B	MAY W10410105
8A	MAY W10322873
8	MAY W10322872
9	ASSEMBLY, LED
10	MAY W10572633
11	SCREW
