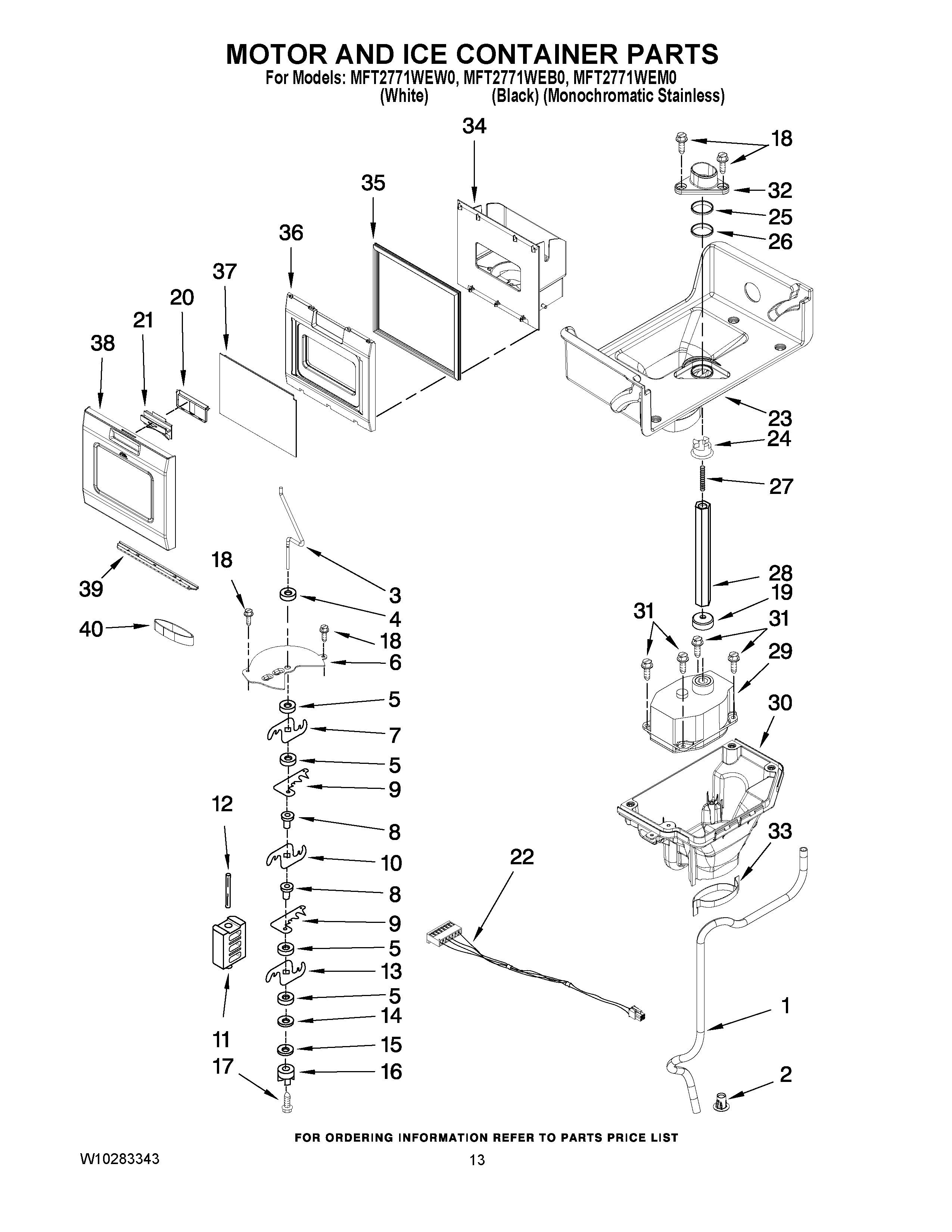

MFT2771WEB0 07 – MOTOR AND ICE CONTAINER PARTS

MFT2771WEB0 07 – MOTOR AND ICE CONTAINER PARTS

Written by

in

MFT2771WEB0 07 – MOTOR AND ICE CONTAINER PARTS

Products

PositionProduct
1MAY W10245518
2CLIP, TUBE
3AUGER, CRUSHER
4Washer, Auger
5MAY W10189658
6MAY W10178232
7MAY 2257024
8MAY W10189661
9MAY 2257020
10MAY 2257023
11BLADE, BLOCK
12ROLL PIN
13MAY 2257022
14MAY 489235
15MAY 2198661
16COUPLING
17MAY 8281164
18SCREW (STAINLESS)
19MAY 2323357
20MAY W10215692
21MAY W10247077
22MAY W10185589
23MAY W10276438
24Coupling, Bottom
25MAY 2198628
26MAY 2212370
27SPRING
28MAY W10258592
29MAY 2323603
30MAY W10245601
31Screw
32MAY W10218551
33MAY W10247398
34MAY W10213606
35MAY W10178224
36MAY W10213615
37MAY W10218689
38MAY W10277106
39MAY W10248280
40MAY W10166865
100MAY W10277159
