MFT2771WEB0 10 – DISPENSER FRONT PARTS – Aparts

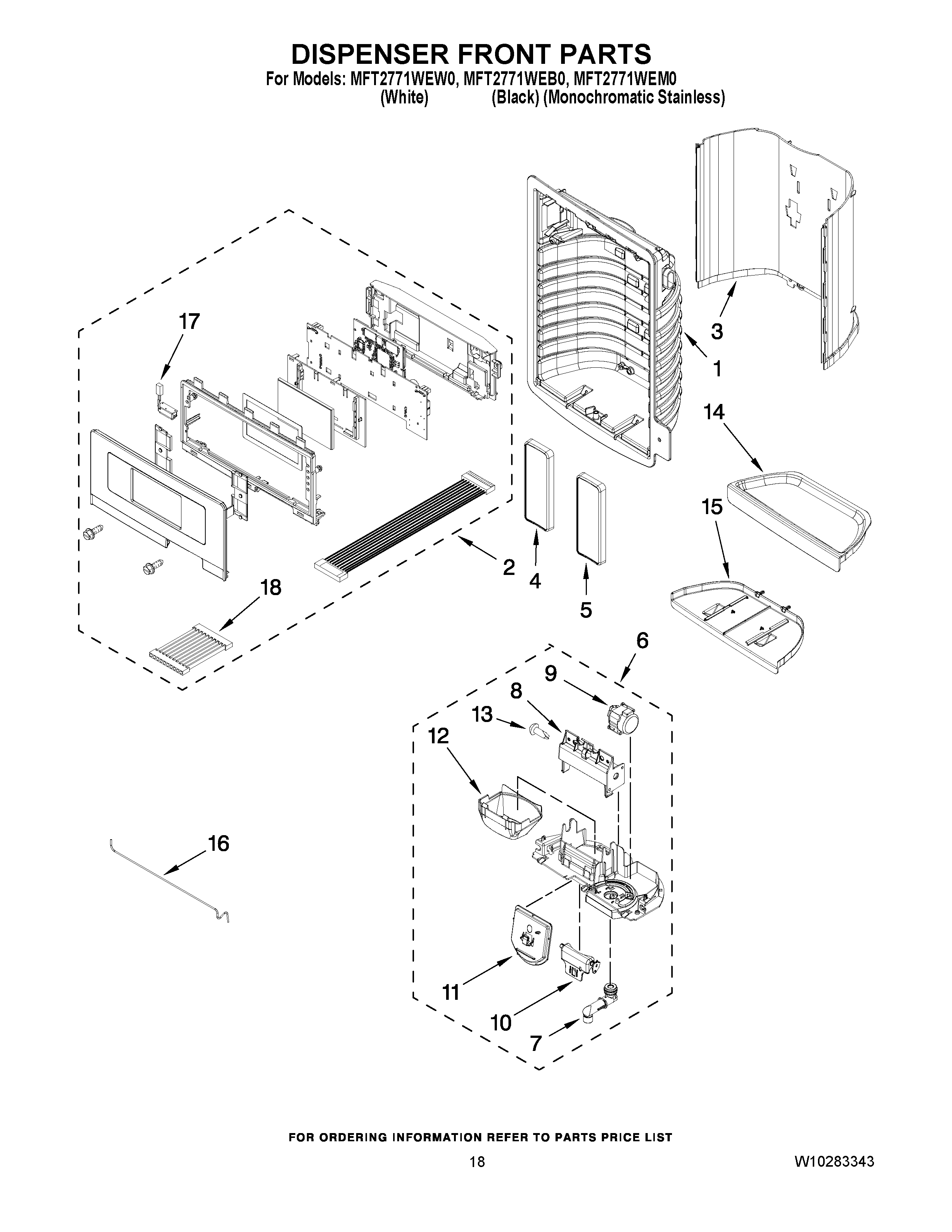

MFT2771WEB0 10 – DISPENSER FRONT PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY W10271912
2	MAY W10271914
2	MAY W10271913
3	FALSE WALL, DISPENSER (WHITE)
3	FALSE WALL, DISPENSER (BLACK)
3	MAY W10268792
4	MAY W10270560
4	MAY W10286142
5	MAY W10270564
5	MAY W10286143
6	MAY W10215987
6	MAY W10215954
6	MAY W10180830
7	MAY 2316647
8	MAY W10174827
9	MAY W10184813
10	SUPPORT-ICE DOOR
11	MAY W10174811
12	GUIDE, ICE
13	MAY 4449745
14	MAY W10267870
14	MAY W10267864
14	MAY W10267869
15	MAY W10267860
15	SLIDE, TRAY DISPENSER (BLACK)
15	SLIDE, TRAY DISPENSER (GREY)
16	MAY W10180827
17	MAY W10143532
18	HARNESS-JUMPER
