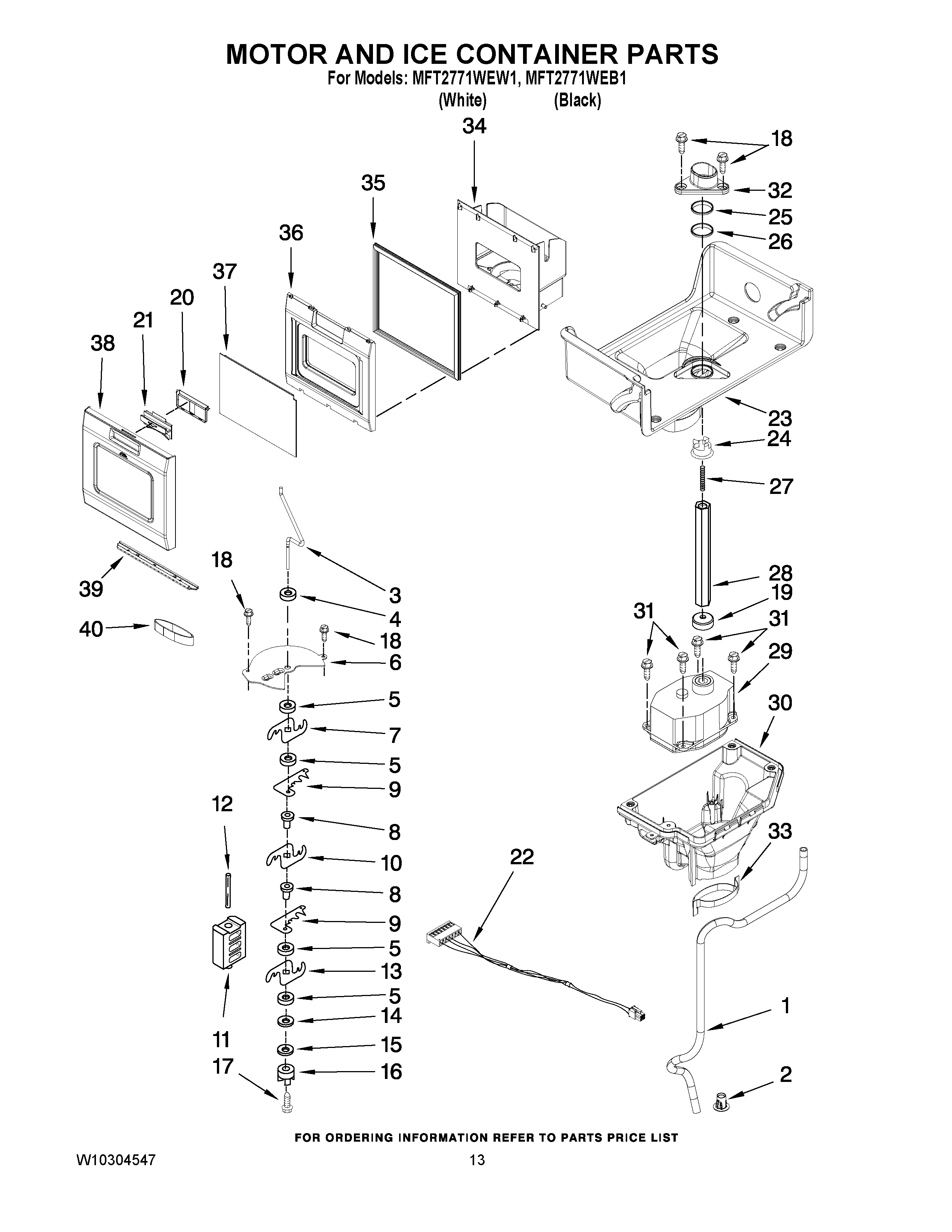

MFT2771WEB1 07 – MOTOR AND ICE CONTAINER PARTS
Written by
in
MFT2771WEB1 07 – MOTOR AND ICE CONTAINER PARTS
Products
Position
Product
1
MAY W10245518
2
CLIP, TUBE
3
AUGER, CRUSHER
4
Washer, Auger
5
MAY W10189658
6
MAY W10178232
7
MAY W10278733
8
MAY W10189661
9
MAY 2257020
10
MAY W10278732
11
BLADE, BLOCK
12
ROLL PIN
13
MAY W10278731
14
MAY 489235
15
MAY 2198661
16
COUPLING
17
MAY 8281164
18
SCREW (STAINLESS)
19
MAY 2323357
20
MAY W10215692
21
MAY W10247077
22
MAY W10291014
23
MAY W10276438
24
Coupling, Bottom
25
MAY 2198628
26
MAY 2212370
27
SPRING
28
MAY W10258592
29
MAY 2323603
30
MAY W10245601
31
Screw
32
MAY W10218551
33
MAY W10247398
34
MAY W10267558
35
MAY W10178224
36
MAY W10213615
37
MAY W10218689
38
MAY W10277106
39
MAY W10248280
40
MAY W10166865
100
MAY W10277159
←
