MFT2771WEB1 09 – DISPENSER FRONT PARTS
Written by
in

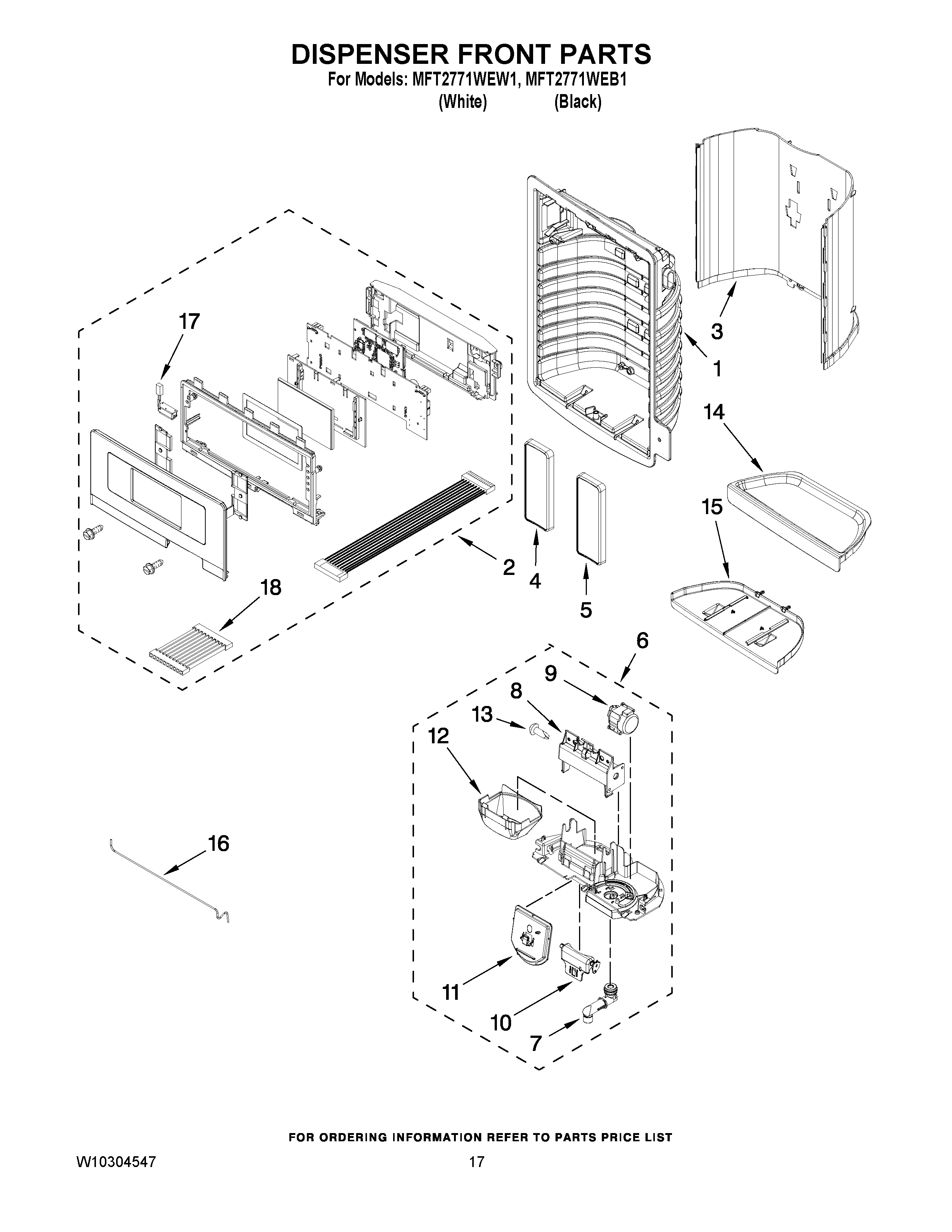

MFT2771WEB1 09 – DISPENSER FRONT PARTS
Products
Position
Product
1
LINER (NOT A SERVICEABLE PART)
2
MAY W10291955
2
MAY W10291956
3
FALSE WALL, DISPENSER (WHITE)
3
FALSE WALL, DISPENSER (BLACK)
4
MAY W10308363
4
MAY W10308362
5
MAY W10307626
5
MAY W10307625
6
MAY W10215987
6
MAY W10180830
7
MAY 2316647
8
MAY W10174827
9
MAY W10184813
10
SUPPORT-ICE DOOR
11
MAY W10174811
12
GUIDE, ICE
13
MAY 4449745
14
MAY W10267870
14
MAY W10267869
15
SLIDE, TRAY DISPENSER (BLACK)
15
MAY W10267860
16
MAY W10314372
17
MAY W10238083
18
HARNESS-JUMPER
←
