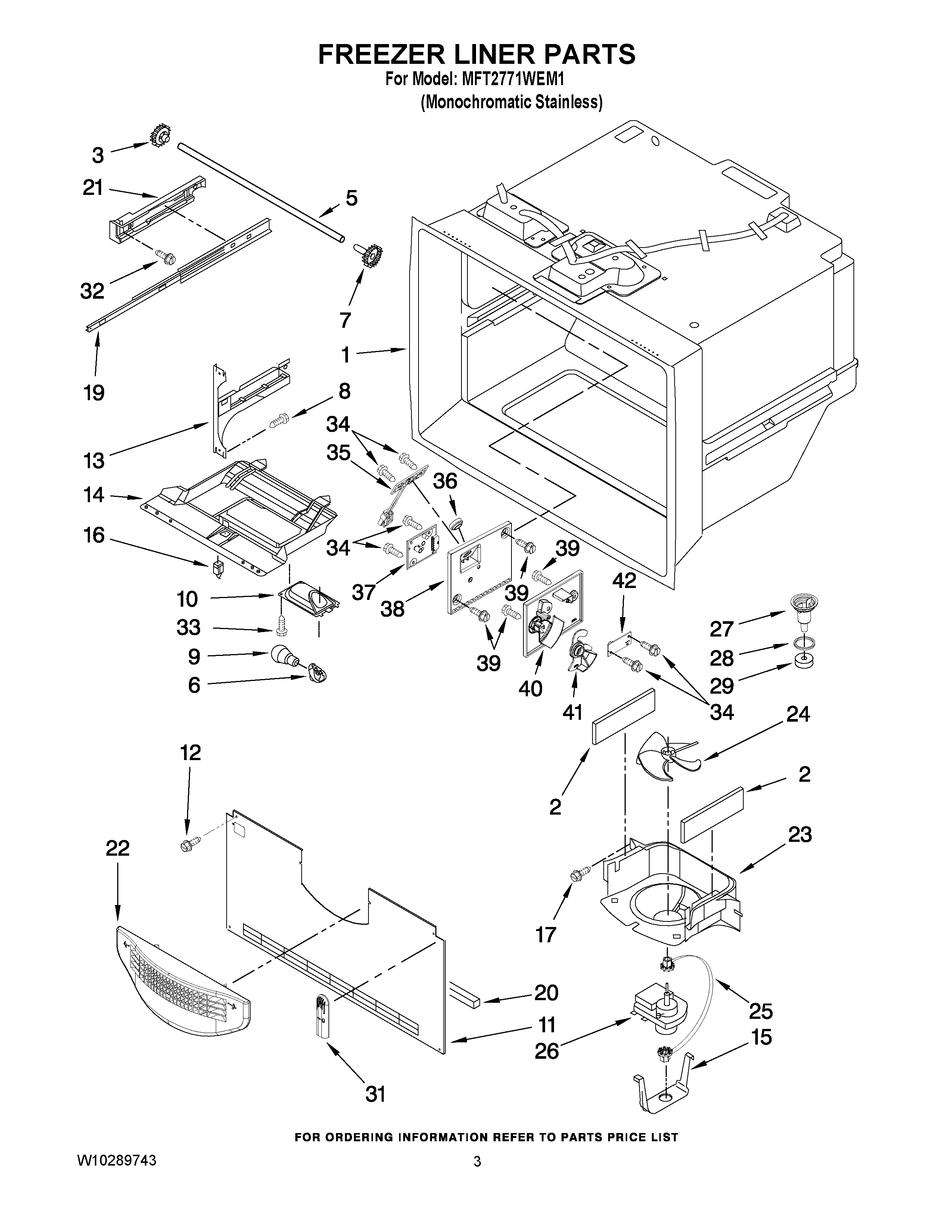

MFT2771WEM1 02 – FREEZER LINER PARTS

Products

Position	Product
NI	MAY W10187117
NI	HARNESS, FZ LIGHT (INCLUDES THERMISTOR)
1	LINER (NOT A SERVICEABLE PART)
2	Gasket, Bottom
5	SHAFT
6	MAY 12570701SP
7	12002497 Whirlpool Refrigerator Drawer Gear Kit
8	Screw (8)
9	MAY W10194422
10	MAY 12476401SP
11	MAY 12935801
12	SCREW (10)
13	BRACKET, DOOR (RIGHT)
13	BRACKET, DOOR (LEFT)
14	MAY 13027902SP
15	MAY 12956601
16	MAY 12466111SP
17	MAY 12990504
19	MAY W10120018
20	GASKET, BOTTOM
21	MAY W10159938
21	MAY W10159939
22	MAY 12959901
23	Shroud, Evap Fan
24	Blade, Fan (Evaporator)
25	Grommet, Fan Motor (2)
26	MOTOR, EVAPORATOR
27	MAY D7753903
28	MAY M0500703
29	Gasket
31	MAY 12815301
32	Screw (6)
33	MAY 12991604
34	MAY 12993001
35	MAY W10231571
36	MAY W10225288
37	MAY W10273549
38	MAY W10251672
39	SCREW (STAINLESS)
40	MAY W10199834
41	MAY W10211511
42	BOARD, EMITTER
