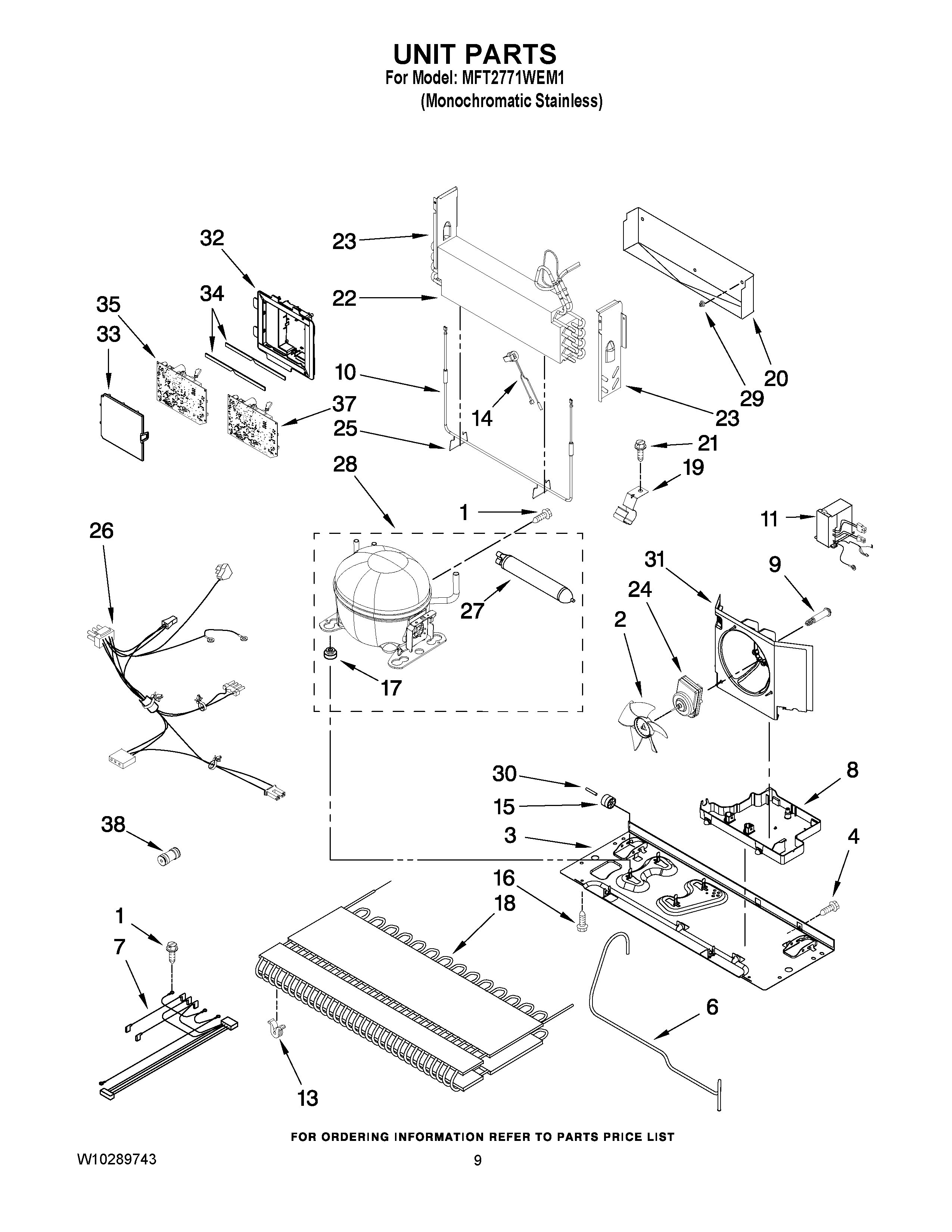

MFT2771WEM1 05 – UNIT PARTS

Products

Position	Product
NI	Valve, Access (1/2“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (5/16“)
NI	LINER (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/4“)
NI	MAY 876764
NI	Valve, Access (5/8“)
NI	Valve, Access (3/4“)
1	MAY 12992301
2	MAY 12825803
3	MAY W10210985
4	SCREW (10)
6	MAY W10242974
7	MAY W10180142
8	MAY W10215085
9	MAY W10216919
10	MAY 12729123
11	INVERTER BOX ASSY
13	GROMMET, COND (4)
14	MAY 12639311SP
15	Roller (2)
16	MAY 12992101
17	Grommet (4)
18	MAY W10135026
19	MAY 10547003
20	MAY 12225403WD
21	MAY 12990701
22	MAY 12959803
23	Dam (Left Side)
23	Dam (Right Side)
24	MAY 12825101
25	W11673433 Whirlpool Clip
26	MAY W10271463
27	Drier
28	COMPRESSOR (INCLUDES ITEMS 11,12,17,27)
29	MAY 10623002
30	Axle, Roller (2)
31	SHROUD
32	BOX, HV CONTROL
33	LID, HV BOX
34	GASKET-HV BOX
35	BOARD, GEMINI (HV, GEMINI)
37	CONTROL, ELECTRONIC POWER SAUPPLY
38	CONNECTOR, WATER
