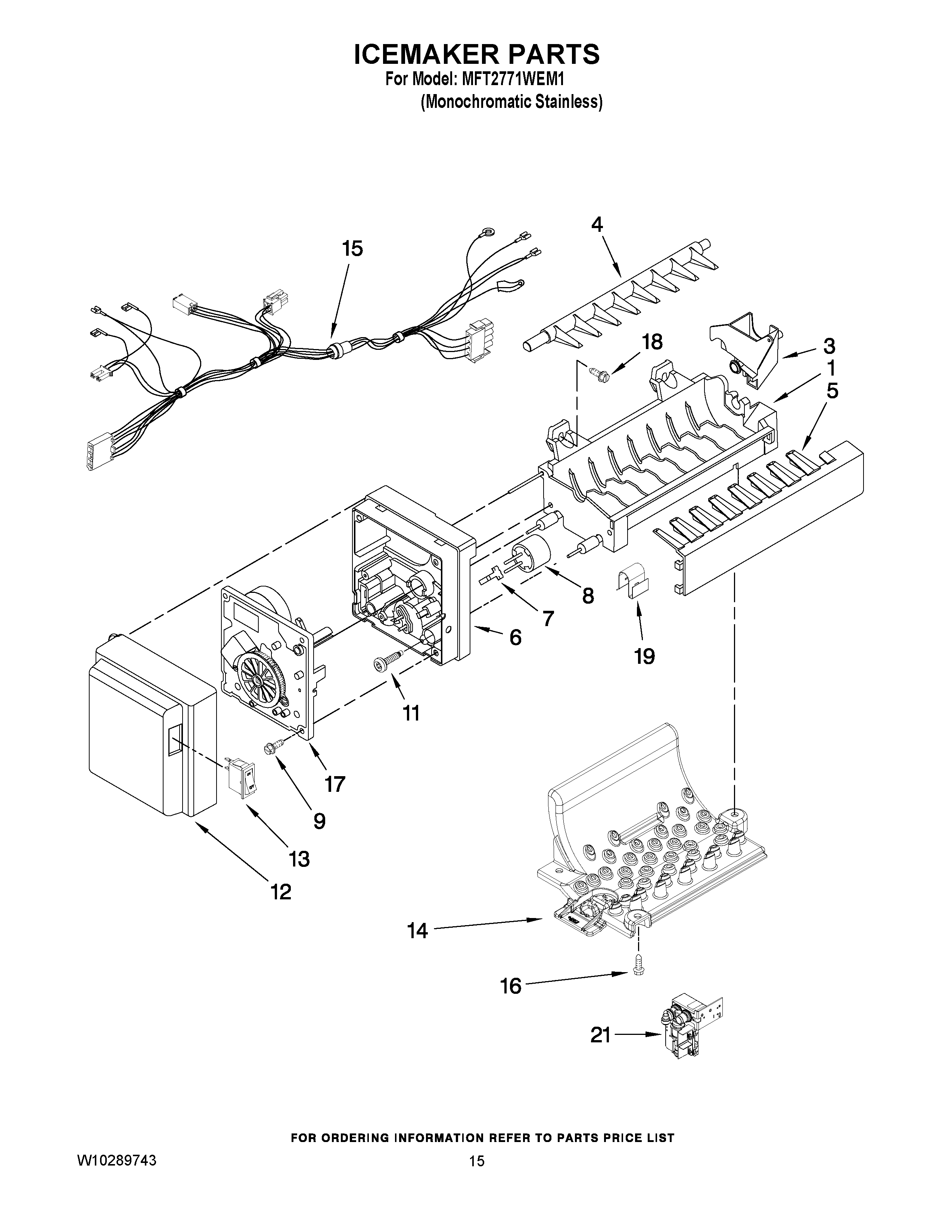

MFT2771WEM1 08 – ICEMAKER PARTS

Products

Position	Product
NI	W11033771 Whirlpool Refrigerator Coupling
1	MAY W10161596
3	MAY W10160726
4	MAY W10136605
5	MAY W10267602
6	MAY 2194712
7	MAY 2315522
8	Thermostat (Also Order 542369 Cement Alumilastic)
9	Screw (3)
11	MAY 8533917
12	MAY W10212429
13	MAY W10212431
14	MAY W10194598
15	MAY W10249475
16	MAY 12990511K
17	Module Assembly (Includes Items 23 and 24)
18	MAY 489276
19	Clip
21	MAY W10270395
100	MAY W10122559
