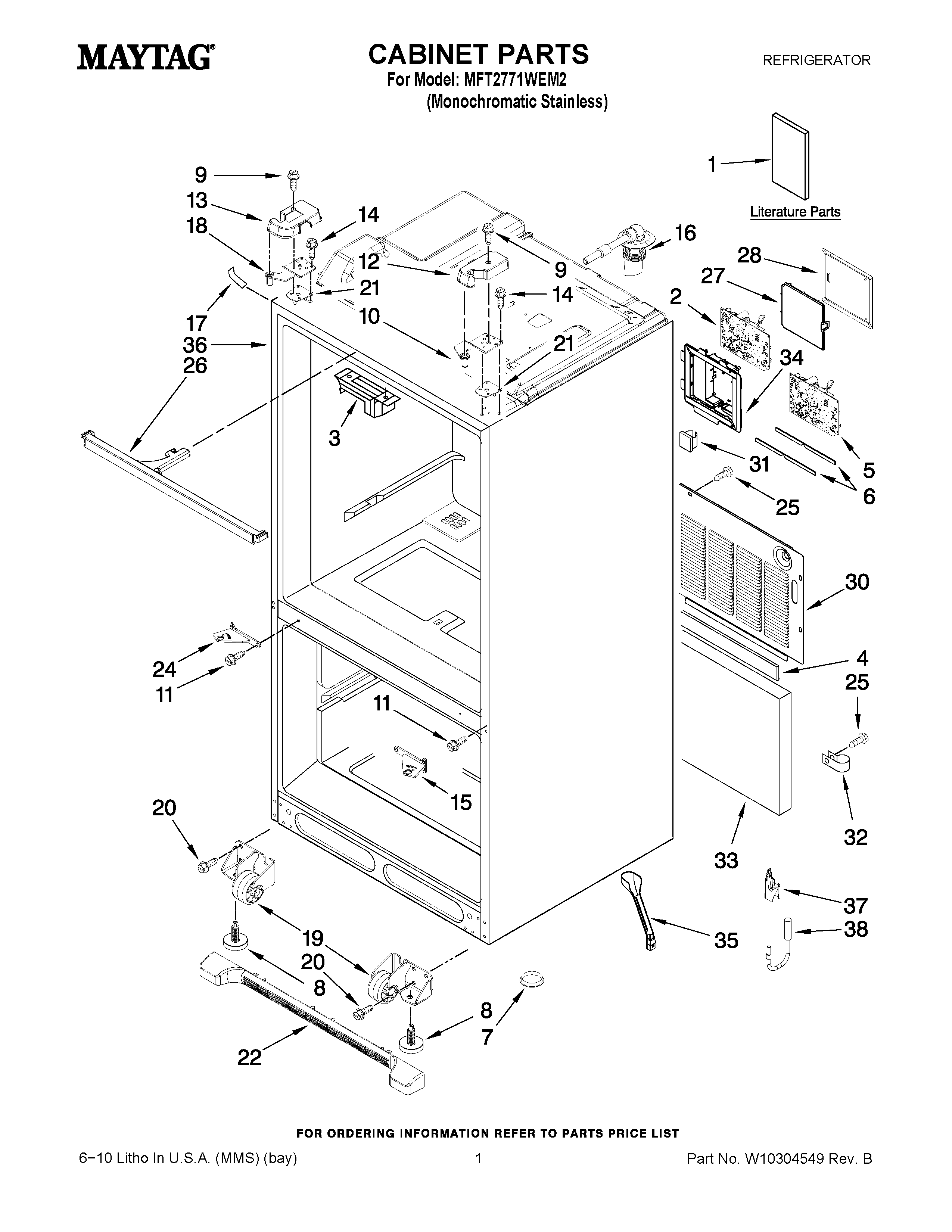

MFT2771WEM2 01 – CABINET PARTSadmin2025-04-26T09:06:36+00:00MFT2771WEM2 01 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | MAY W10252999 |
| 1 | MAY W10276053 |
| 1 | MAY W10310695 |
| 2 | CONTROL, ELECTRONIC POWER SAUPPLY |
| 3 | Block, Pivot |
| 4 | MAY B5759655 |
| 5 | BOARD, GEMINI (HV, GEMINI) |
| 6 | GASKET-HV CNTRL-2 |
| 7 | A3076901 Whirlpool Refrigerator Plug |
| 8 | Brake, Foot |
| 9 | MAY 12992602 |
| 10 | MAY 12963205ED |
| 11 | SCREW (6) |
| 12 | MAY W10272998 |
| 13 | MAY W10272481 |
| 14 | SCREW (6) |
| 15 | HINGE, CENTER (RT) (GREY) |
| 16 | MAY W10213219 |
| 17 | COVER, CORNER (GREY) |
| 18 | HINGE, TOP LEFT |
| 19 | ROLLER ASSY. (FRONT) (RIGHT) |
| 19 | ROLLER ASSY. (FRONT) (LEFT) |
| 20 | Screw (8) |
| 21 | MAY 12999501 |
| 21 | MAY 12999502 |
| 22 | GRILLE, TOE (GREY) |
| 24 | HINGE, CENTER (LT) (GREY) |
| 25 | SCREW (10) |
| 26 | MAY W10253811 |
| 27 | MAY 12957702K |
| 28 | MAY 12961602 |
| 30 | MAY W10270394 |
| 31 | WPM0104106 Whirlpool Refrigerator Clip |
| 32 | CLAMP, TUBE |
| 33 | Insulation, Sound |
| 34 | BOX, HV CONTROL |
| 35 | MAY W10210988 |
| 36 | LINER (NOT A SERVICEABLE PART) |
| 37 | MAY W10236761 |
| 38 | MAY W10223786 |
