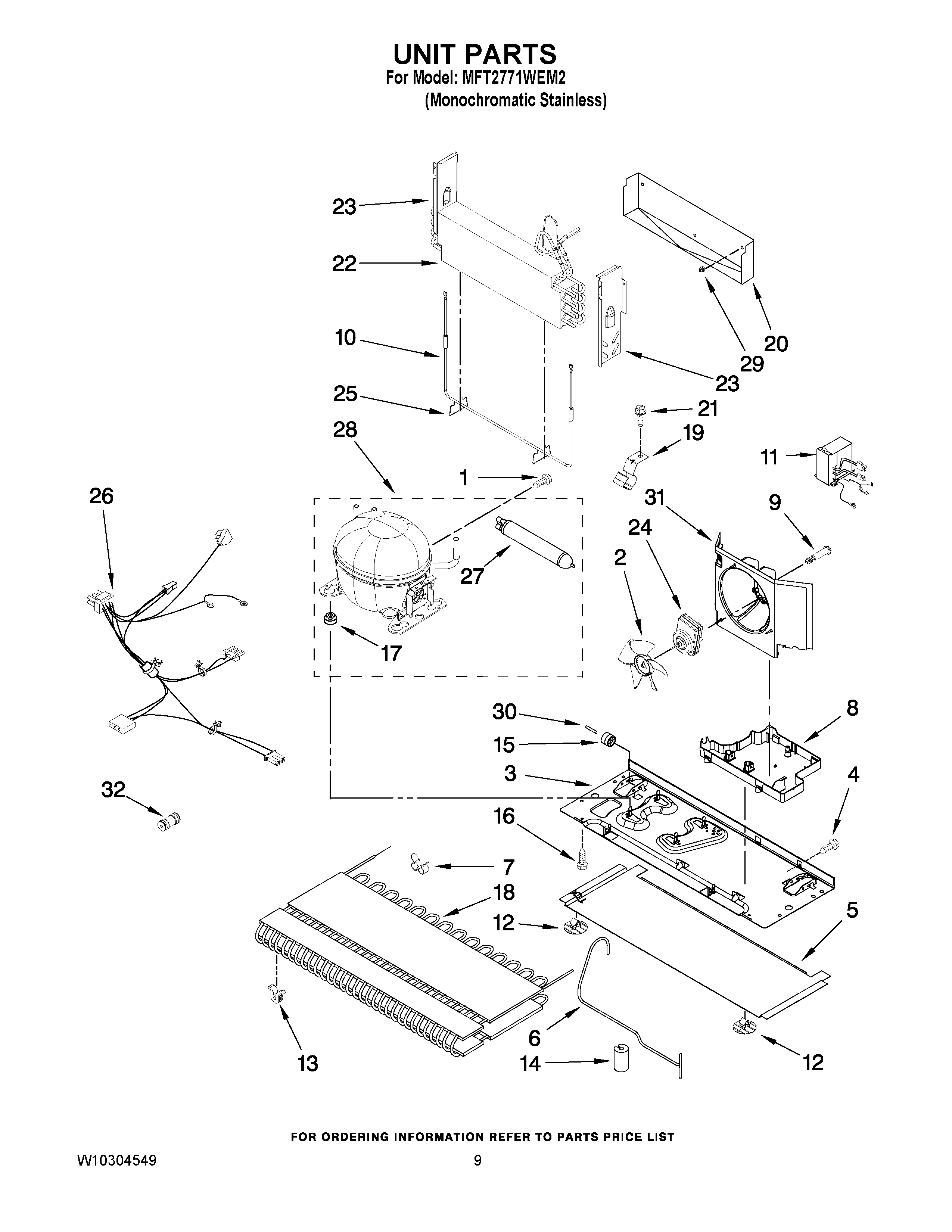

MFT2771WEM2 05 – UNIT PARTS

Products

Position	Product
NI	Valve, Access (3/4“)
NI	VALVE, ACCESS (1/4“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (1/2“)
NI	Valve, Access (5/8“)
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY 876764
1	MAY 12992301
2	MAY 12825803
3	MAY W10210985
5	EXTENSION, BASEPAN
6	MAY W10242974
7	MAY W10196187
8	MAY W10296785
9	MAY W10216919
10	MAY 12729123
11	INVERTER BOX ASSY
12	MAY W10206339
13	GROMMET, COND (4)
14	GROMMET, CONDENSER
15	Roller (2)
16	MAY 12992101
17	Grommet (4)
18	MAY W10135026
19	MAY W10281329
20	MAY W10292803
21	SCREW (10)
22	MAY 12959803
23	Dam (Right Side)
23	Dam (Left Side)
24	MAY W10239053
25	W11673433 Whirlpool Clip
26	MAY W10271463
27	Drier
28	COMPRESSOR (INCLUDES ITEMS 11,12,17,27)
29	MAY 10623002
30	Axle, Roller (2)
31	SHROUD
32	CONNECTOR, WATER
