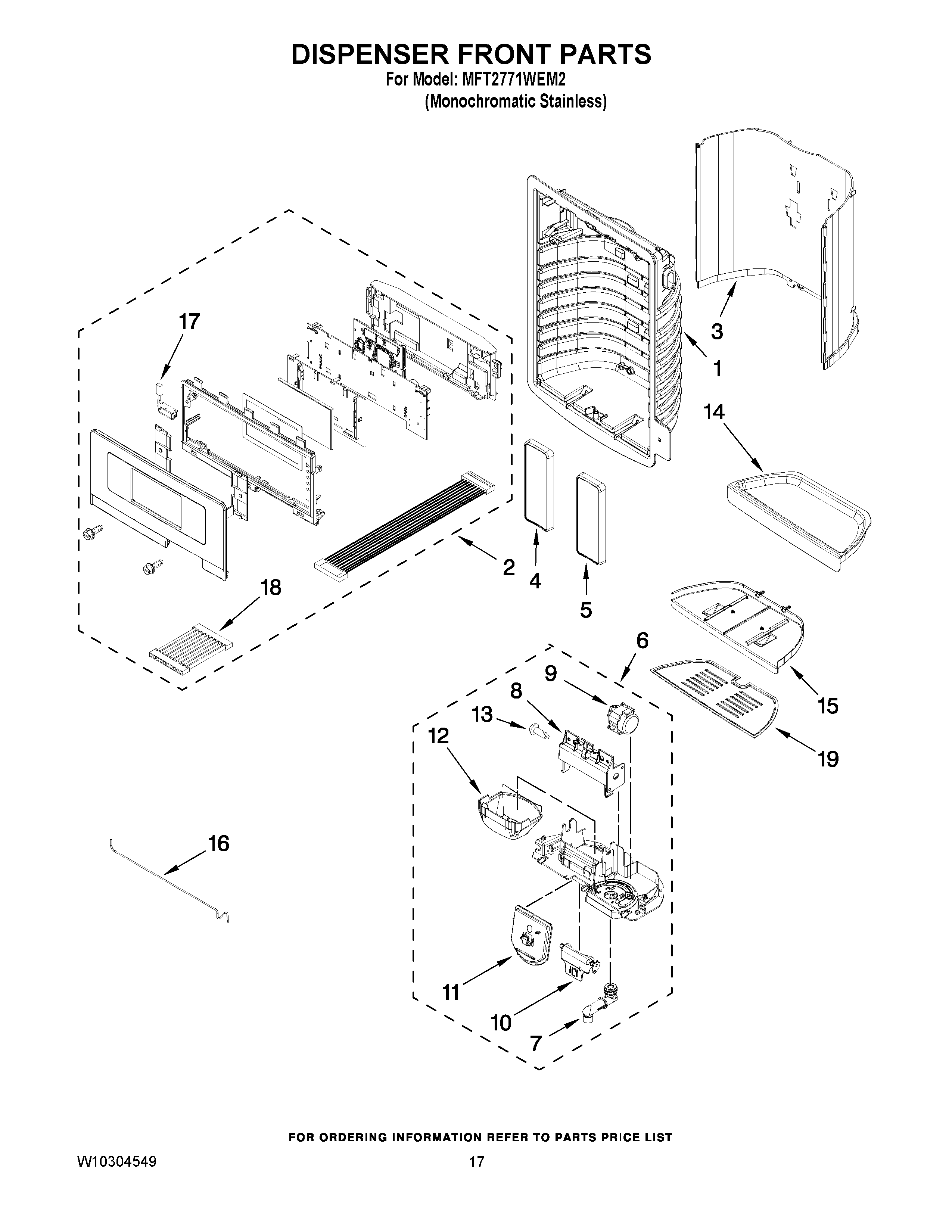

MFT2771WEM2 09 – DISPENSER FRONT PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY W10291957
3	FALSE WALL DISP. (STAINLESS)
4	MAY W10308362
5	MAY W10307625
6	SEPARATOR ASSEMBLY (APOLLO GREY)
7	MAY 2316647
8	MAY W10174827
9	MAY W10205979
10	SUPPORT-ICE DOOR
11	MAY W10174811
12	GUIDE, ICE
13	CLIP, MOTOR COUPLING
14	TRAY, DISPENSER (STAINLESS)
15	SLIDE, TRAY DISPENSER (GREY)
16	MAY W10314372
17	MAY W10238083
18	HARNESS-JUMPER
19	MAY W10215957
