MFT2771XEB0 05 – REFRIGERATOR DOOR PARTS
Written by
in

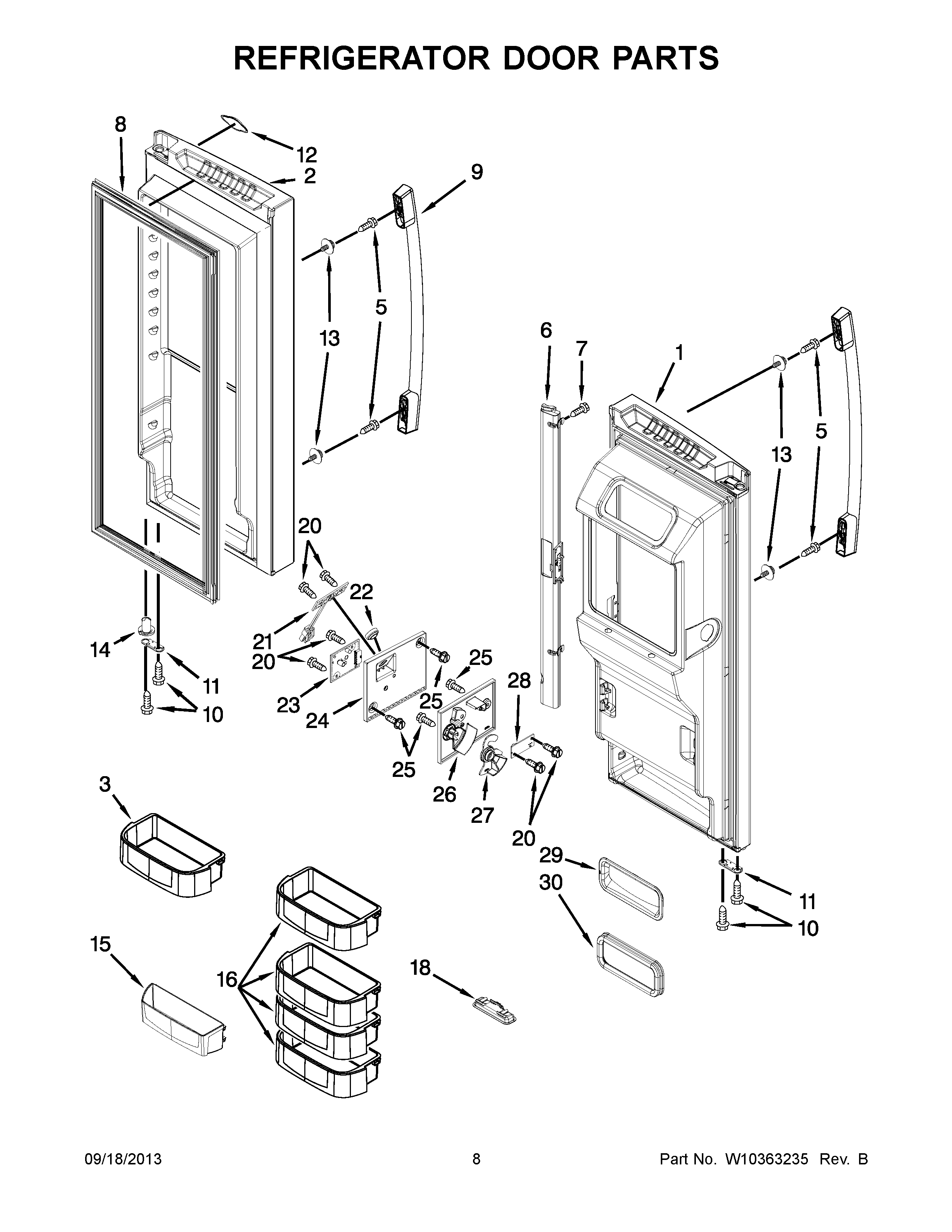

MFT2771XEB0 05 – REFRIGERATOR DOOR PARTS
Products
Position
Product
1
DOOR, LEFT (APOLLO GREY)
1
MAY 13102610W
1
MAY 13102610B
2
DOOR, RIGHT (APOLLO GREY)
2
MAY 13102603W
2
MAY 13102608B
3
MAY W10237235
5
SCREW
6
MAY 12722815B
6
MAY 12722815W
6
MULLION, DOOR STAINLESS
7
MAY 12990204
8
MAY W10163896
8
GASKET, DOOR STAINLESS
8
MAY W10163898
9
MAY 13004701B
9
HANDLE, DOOR (WHITE)
9
HANDLE, DOOR (APOLLO GREY)
10
MAY 12990504
11
MAY 12968202AP
11
MAY 12968202B
11
MAY 12968202W
12
Nameplate
13
MAY 13001201
14
MAY 12028505AP
14
MAY 12028505B
14
MAY 12028505W
15
MAY W10212139N
16
MAY W10237237
18
MAY W10212141
20
MAY 12993001
21
MAY W10305123
22
MAY W10225288
23
MAY W10273549
24
MAY W10251672
25
SCREW (STAINLESS)
26
MAY W10199834
27
MAY W10211511
28
BOARD, EMITTER
29
MAY W10247763
30
MAY W10247668
←
