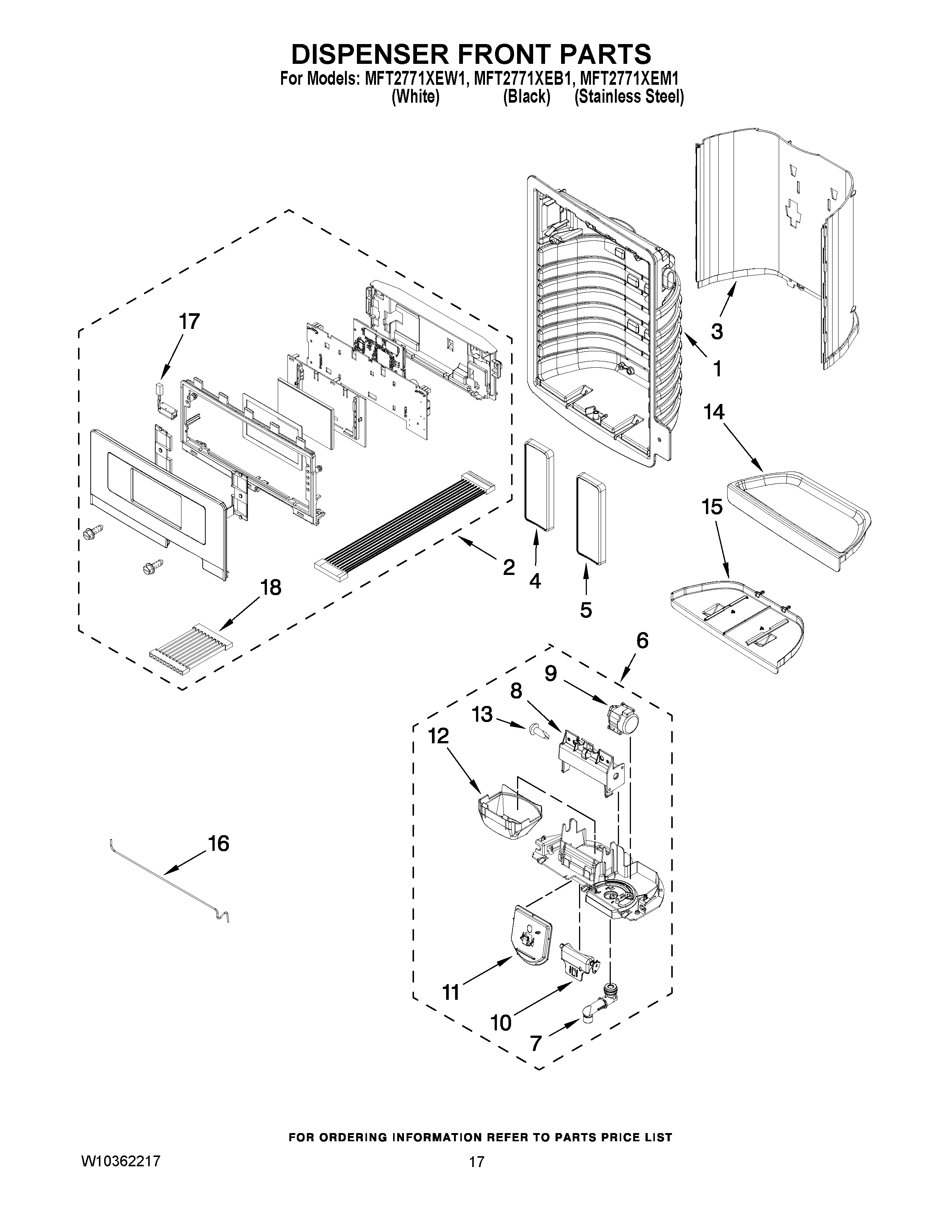

MFT2771XEB1 09 – DISPENSER FRONT PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY W10291955
2	MAY W10291956
2	MAY W10291957
3	FALSE WALL DISP. (STAINLESS)
3	FALSE WALL, DISPENSER (WHITE)
3	FALSE WALL, DISPENSER (BLACK)
4	MAY W10308363
4	MAY W10334789
5	MAY W10307626
5	MAY W10334813
6	SEPARATOR ASSEMBLY (APOLLO GREY)
6	MAY W10180830
6	MAY W10215987
7	MAY 2316647
8	MAY W10174827
9	MAY W10205979
10	SUPPORT-ICE DOOR
11	MAY W10174811
12	GUIDE, ICE
13	MAY 4449745
14	TRAY, DISPENSER (STAINLESS)
14	MAY W10267870
14	MAY W10267869
15	SLIDE, TRAY DISPENSER (BLACK)
15	SLIDE, TRAY DISPENSER (GREY)
15	MAY W10267860
16	MAY W10314372
17	MAY W10238083
18	HARNESS-JUMPER
