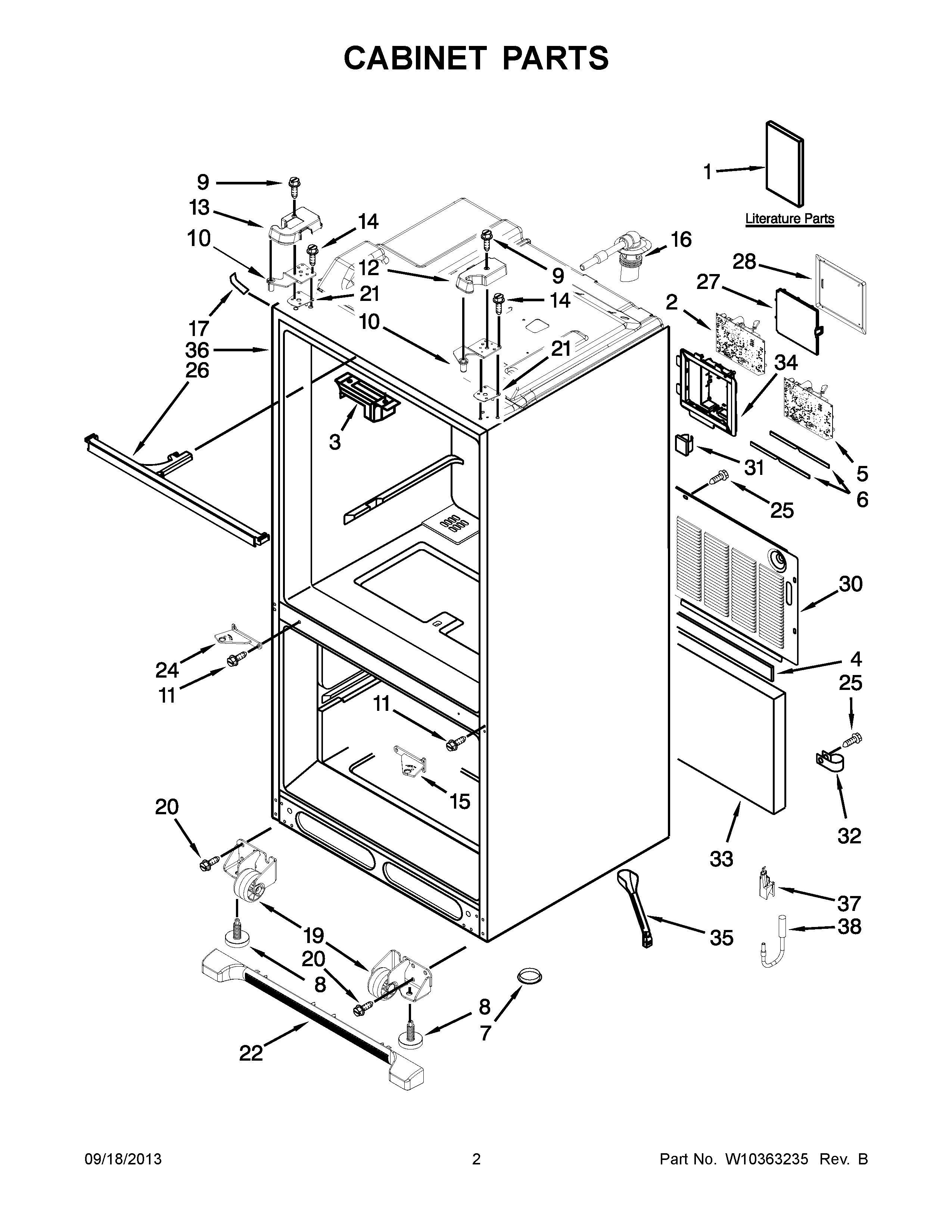

MFT2771XEM0 02 – CABINET PARTS

Products

Position	Product
1	MAY W10349489
1	MAY W10344647
1	MAY W10252999
2	CONTROL, ELECTRONIC POWER SAUPPLY
3	Block, Pivot
4	MAY B5759655
5	BOARD, GEMINI (HV, GEMINI)
6	GASKET-HV CNTRL-2
7	A3076901 Whirlpool Refrigerator Plug
8	Brake, Foot
9	MAY 12992602
10	HINGE, TOP LEFT
10	MAY 12963205ED
11	SCREW (6)
12	MAY W10272998
12	MAY W10272996
12	MAY W10272995
13	MAY W10272478
13	MAY W10272481
13	MAY W10272479
14	SCREW (6)
15	Hinge, Center (RT) (White)
15	HINGE, CENTER (RT) (GREY)
15	HINGE, CENTER (BLACK, RIGHT )
16	MAY W10213219
17	COVER, CORNER (BLACK)
17	COVER, CORNER (GREY)
17	Cover, Corner (2) (White)
19	ROLLER ASSY. (FRONT) (LEFT)
19	ROLLER ASSY. (FRONT) (RIGHT)
20	Screw (8)
21	MAY 12999501
21	MAY 12999502
22	MAY W10244559
22	GRILLE ASSEMBLY (INCLUDES CLIPS) (BLACK)
22	GRILLE, TOE (GREY)
24	HINGE, CENTER (LT) (GREY)
24	HINGE, CENTER (BLACK, LEFT)
24	Hinge, Center (LT) (White)
25	SCREW (10)
26	MAY W10253811
26	MAY W10253809
26	MAY W10253808
27	MAY 12957702K
28	MAY 12961602
30	MAY W10270394
31	WPM0104106 Whirlpool Refrigerator Clip
32	CLAMP, TUBE
33	Insulation, Sound
34	BOX, HV CONTROL
35	MAY W10210988
36	LINER (NOT A SERVICEABLE PART)
37	MAY W10236761
38	MAY W10223786
