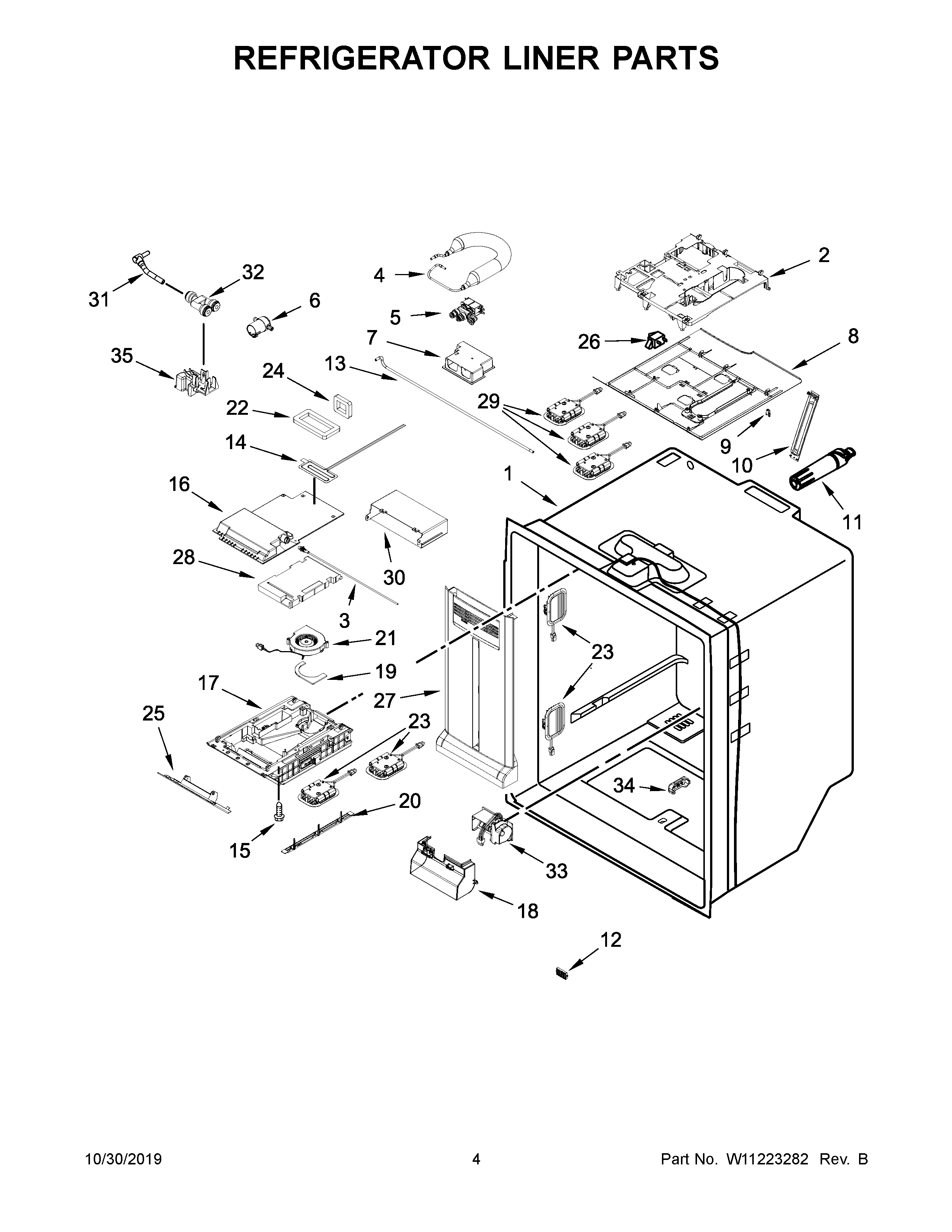

MFT2772HEZ00 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	HOUSING, WATER SYSTEM
3	MAY W10736144
4	MAY W10711460
5	MAY W10341329
6	HOUSING, WATER FILTER (ALSO ORDER 2300868 – 5/16" WATER CONNECTOR)
7	ENCLOSURE, WATER VALVE
8	MAY W10669663
9	LATCH, PUSH
10	MAY W10277949
11	FILTER, WATER
12	FILTER, AIR
13	MAY W10674102
14	MAY W10706850
15	SCREW
16	MAY W10598013
17	MAY W10811686
18	MAY W10530312
19	MAY W10392172
20	MAY W10505516
21	MAY W10833801
22	MAY W10280988
23	ASSEMBLY, LED LIGHT MODULE
24	MAY W10320706
25	ASSEMBLY, FASCIA
26	SWITCH, LIGHT
27	MAY W10682878
28	MAY W10280983
29	HARNESS, LED WIRE (INCLUDES LED LIGHTS)
30	MAY W10635022
31	WATERLINE
32	CONNECTOR, WATER TUBE
33	MAY W10479155
34	MAY W10438957
35	BRACKET, CONNECTOR
