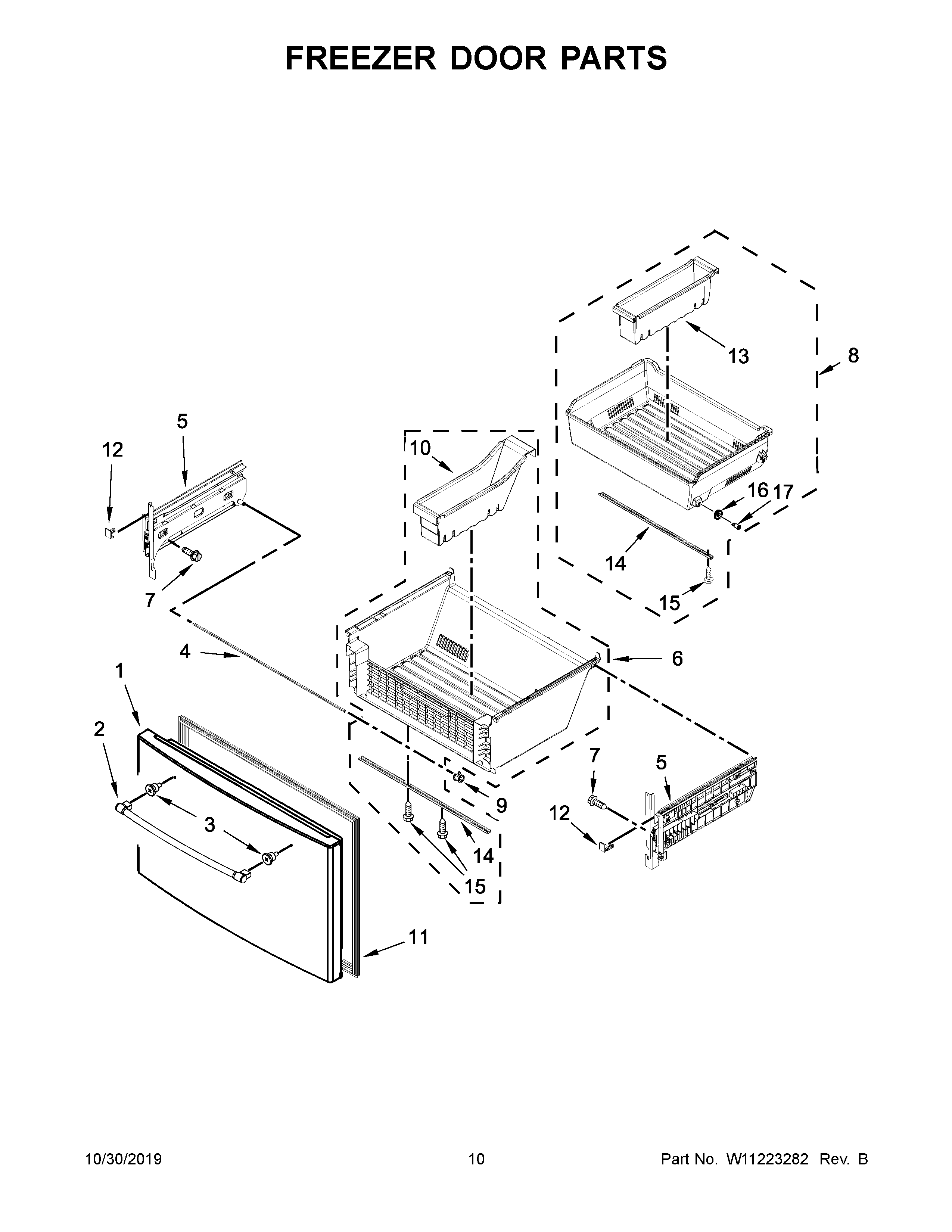

MFT2772HEZ00 06 – FREEZER DOOR PARTS

MFT2772HEZ00 06 – FREEZER DOOR PARTS

Written by

in

MFT2772HEZ00 06 – FREEZER DOOR PARTS

Products

Position	Product
1	DOOR, FREEZER (STAINLESS)
2	HANDLE, DOOR (STAINLESS)
3	MAY W10460893
4	MAY W10503522
5	MAY W10795770
5A	MAY W10795768
6	ASSEMBLY, LOWER PAN
7	SCREW
8	BIN, UPPER
9	MAY W10709748
10	MAY W10507444
11	MAY W10248749
12	MAY W10485096
12A	MAY W10485089
13	MAY W10485654
14	SUPPORT, PAN
15	SCREW (STAINLESS)
16	MAY W10248555
17	MAY W10643690
