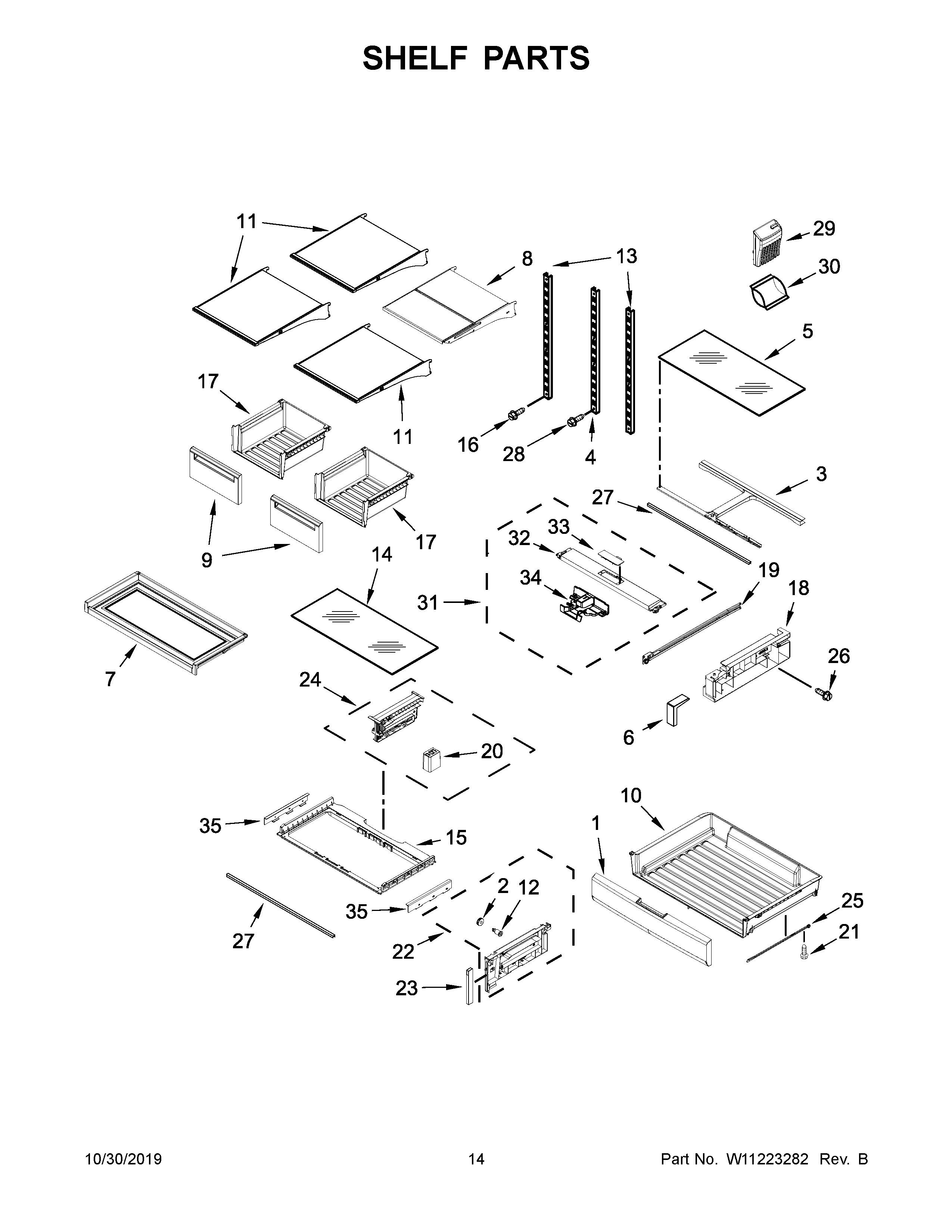

MFT2772HEZ00 08 – SHELF PARTSadmin2025-04-26T09:05:56+00:00MFT2772HEZ00 08 – SHELF PARTS
Products
| Position | Product |
|---|
| 1 | MAY W10559660 |
| 2 | MAY W10248544 |
| 3 | SUPPORT, PANTRY |
| 4 | MAY W10248516 |
| 5 | MAY W10248799 |
| 6A | FRONT, SIDEPLATE (PANTRY) (RIGHT HAND) |
| 6 | FRONT, SIDEPLATE (PANTRY) (LEFT HAND) |
| 7 | ASSEMBLY, METAL SHELF PLATTER (INCLUDES GLASS) |
| 8 | SHELF, TUCK |
| 9 | FRONT, CRISPER |
| 10 | MAY W10498901 |
| 11 | SHELF, FIXED |
| 12 | MAY W10257246 |
| 13 | MAY W10372170 |
| 14 | MAY W10248578 |
| 15 | COVER, CRISPER |
| 16 | MAY 12990204 |
| 17 | MAY W10410352 |
| 18 | SIDEPLATE, PANTRY (LEFT HAND) |
| 18A | SIDEPLATE, PANTRY (RIGHT HAND) |
| 19A | MAY W10508326 |
| 19 | MAY W10508327 |
| 20 | MAY W10530315 |
| 21 | SCREW |
| 22 | SIDEPLATE, CRISPER (LEFT HAND) |
| 22A | SIDEPLATE, CRISPER (RIGHT HAND) |
| 23 | FRONT, SIDEPLATE (CRISPER) |
| 24 | TRACK ASSEMBLY, CRISPER |
| 25A | RUNNER, PANTRY ROLLER (RIGHT HAND) |
| 25 | RUNNER, PANTRY ROLLER (LEFT HAND) |
| 26 | MAY W10185612 |
| 27 | MAY W10236512 |
| 28 | MAY W10423560 |
| 29 | MAY W10408748 |
| 30 | MAY W10346771 |
| 31 | COVER ASSEMBLY, FRONT PANTRY |
| 32 | MAY W10525200 |
| 33 | HOUSING, PANTRY TEMP CONTROL |
| 34 | MAY W10512596 |
| 35A | RAIL, SIDE (RIGHT HAND) |
| 35 | RAIL, SIDE (LEFT HAND) |
