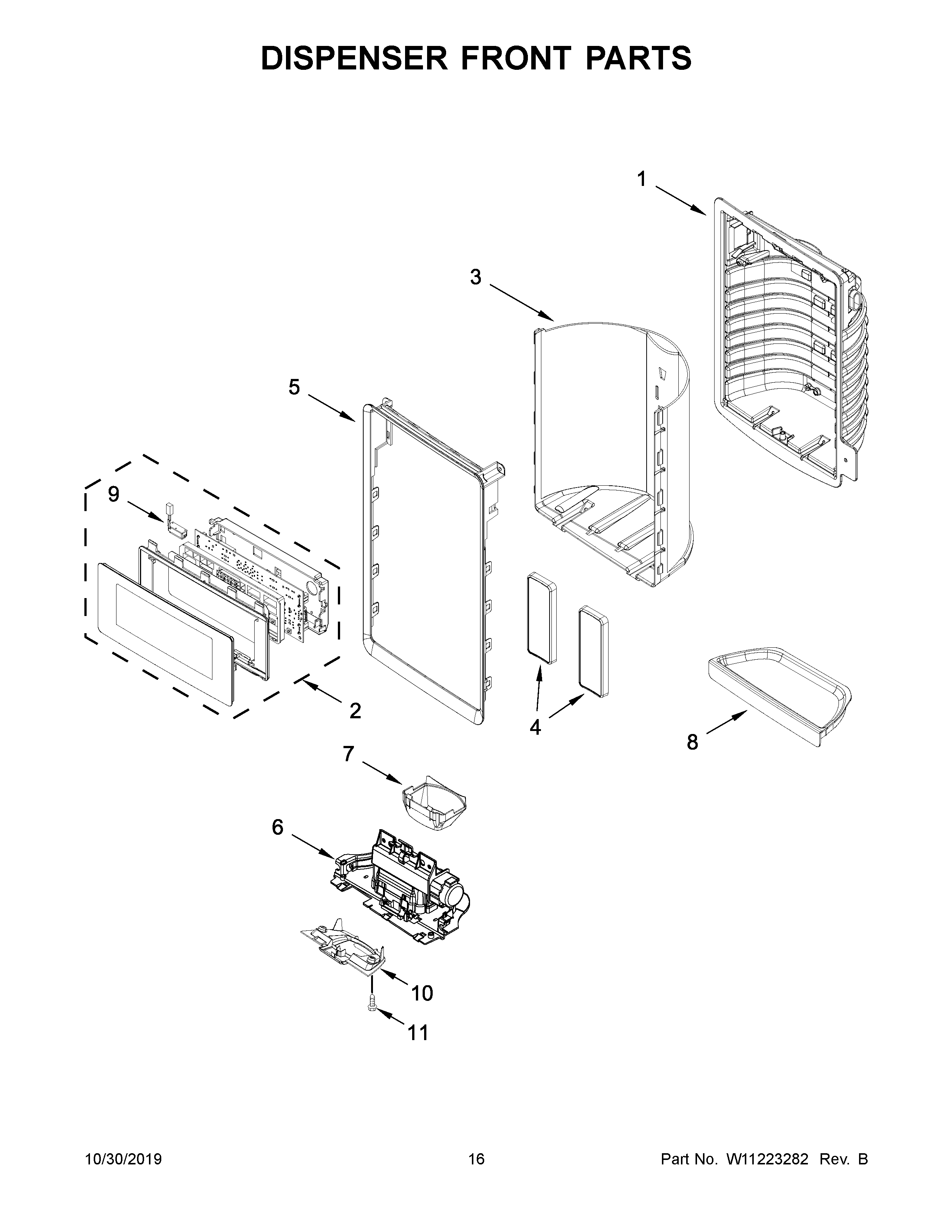

MFT2772HEZ00 09 – DISPENSER FRONT PARTS

Written by

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	ASSEMBLY, USER INTERFACE (INCLUDES LIGHT FEATURE) (SILVER)
3	WALL, DISPENSER FALSE (GREY)
4	ASSEMBLY, PAD (STAINLESS)
5	RING, TRIM (STAINLESS)
6	MAY W10577864
7	MAY W10435760
8	MAY W10410105
9	ASSEMBLY, LED
10	COVER, SEPERATOR
11	MAY 12990513
