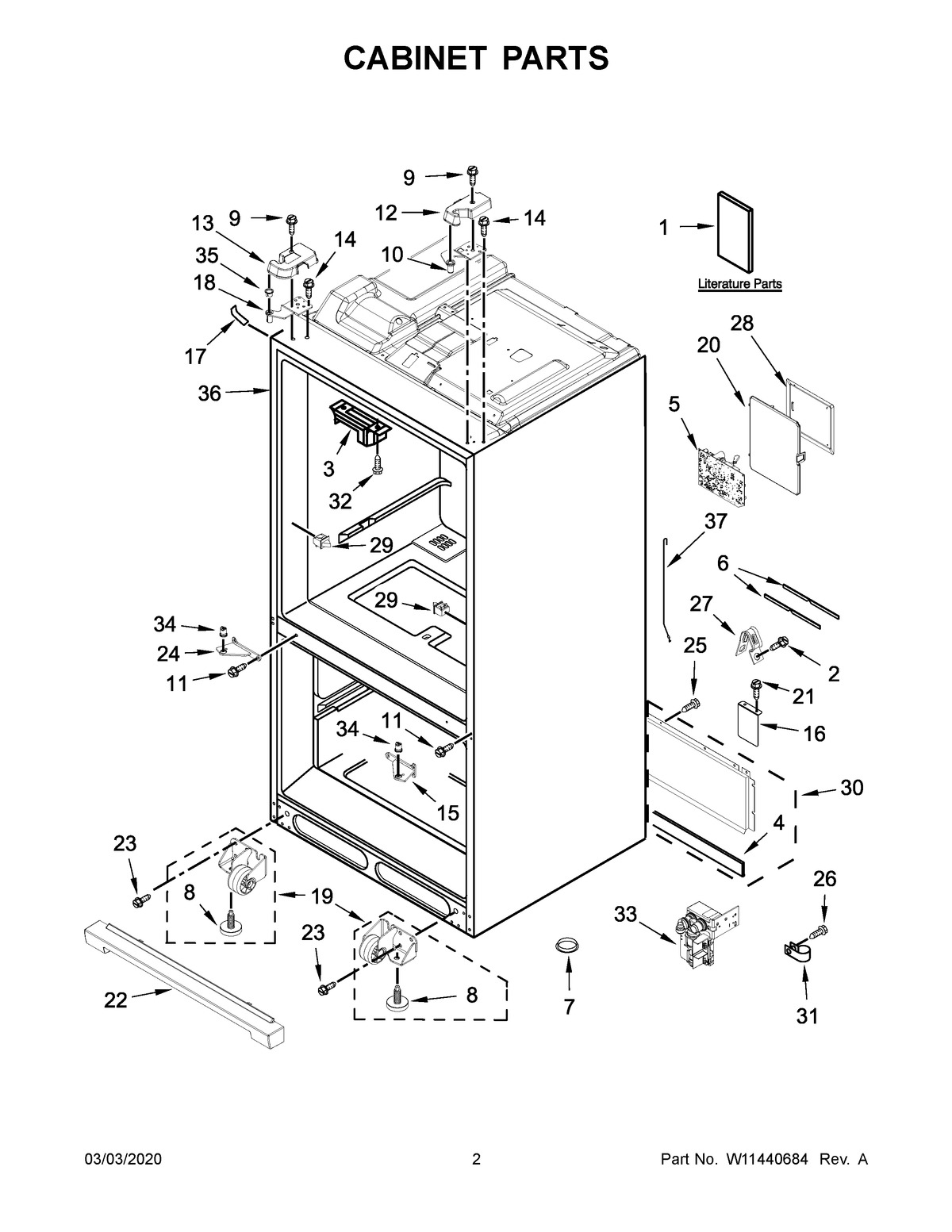

MFT2772HEZ01 02 – CABINET PARTS

Products

Position	Product
NI	ASSEMBLY, REFRIGERATOR COMPARTMENT TOP WIRE
NI	LINER (NOT A SERVICEABLE PART)
1C	TECH SHEET (FRENCH)
1A	ENERGY GUIDE
1	USE AND CARE GUIDE
1B	TECH SHEET (ENGLISH)
3	MAY W10344432
4	MAY W10505487
5	BOARD, CONTROL
6	GASKET, HV BOX
7	A3076901 Whirlpool Refrigerator Plug
8	Brake, Foot
9	MAY 12992602
10	HINGE, TOP (RIGHT HAND)
11	MAY W10673840
12	MAY W10407158
13	MAY W10471618
14	SCREW
15	HINGE, CENTER (RIGHT) (GREY)
16	MAY W10336736
17	COVER, CORNER (GREY)
18	HINGE, TOP (LEFT HAND)
19	ROLLER ASSEMBLY (LEFT HAND)
19A	ROLLER ASSEMBLY (RIGHT HAND)
20	LID, HV
21	SCREW
22	MAY W10637671
23	MAY W10709365
24	HINGE, CENTER (LEFT) (GREY)
25	MAY W10141645
26	SCREW (10)
27	MAY 549193
28	COVER, CONTROL BOX
29	SWITCH, LIGHT
30	MAY W10577369
31	CLAMP, TUBE
32	Screw (4)
33	VALVE, WATER
34	MAY W10505294
35	MAY W10212137
37	TUBE, WATER
