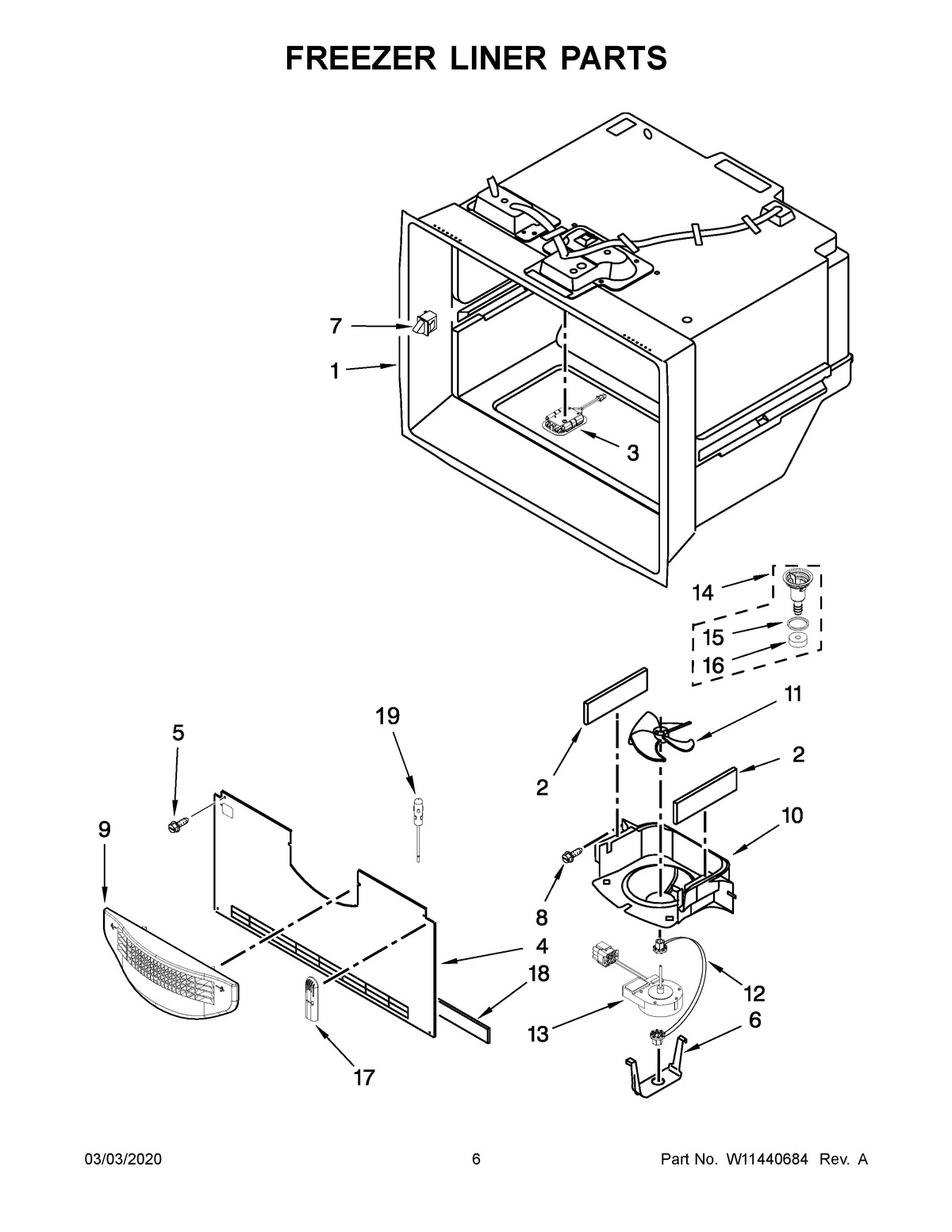

MFT2772HEZ01 04 – FREEZER LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2Gasket, Bottom
3ASSEMBLY, LED LIGHT MODULE
4COVER, EVAPORATOR (FREEZER)
5SCREW (10)
6MAY 12956601
7SWITCH, LIGHT
8MAY 12990504
9GRILLE, AIR (FREEZER)
10SHROUD, EVAPORATOR FAN
11Blade, Fan (Evaporator)
12GROMMET, FAN MOTOR
13MOTOR, EVAPORATOR (INCLUDES HARNESS, THERMISTOR, AND DEFROST THERMOSTAT)
14ASSEMBLY, DRAIN FUNNEL
15MAY M0500703
16Gasket
17MAY W10405166
18MAY W10531268
19THERMISTOR
