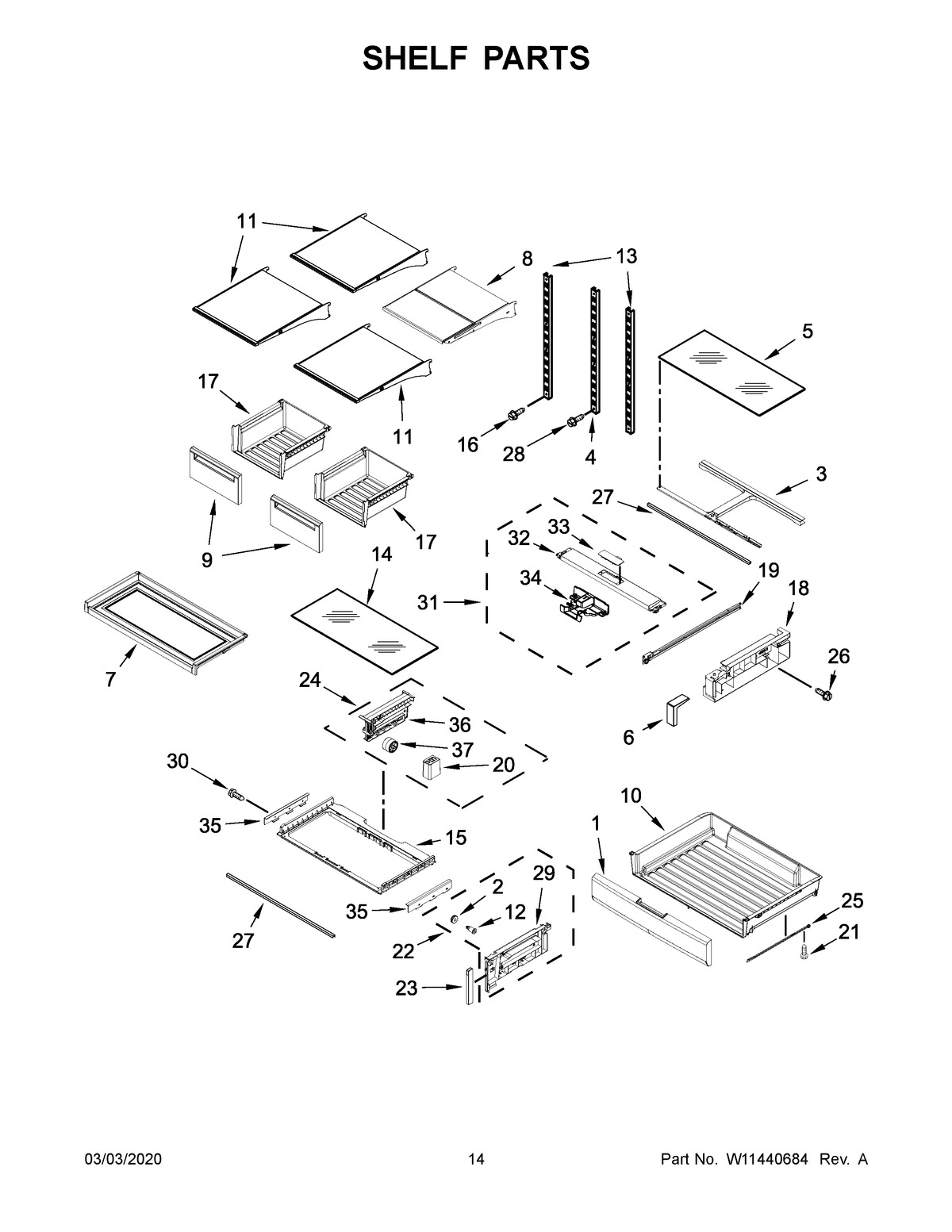

MFT2772HEZ01 08 – SHELF PARTS

Products

Position	Product
1	MAY W10559660
2	MAY W10248544
3	SUPPORT, PANTRY
4	MAY W10248516
5	MAY W10248799
6	FRONT, SIDEPLATE (PANTRY) (LEFT HAND)
6A	FRONT, SIDEPLATE (PANTRY) (RIGHT HAND)
7	ASSEMBLY, METAL SHELF PLATTER (INCLUDES GLASS)
8	SHELF, TUCK
9	FRONT, CRISPER
10	MAY W10498901
11	SHELF, FIXED
12	MAY W10257246
13	MAY W10372170
14	MAY W10248578
15	COVER, CRISPER
16	MAY 12990204
17	MAY W10410352
18	SIDEPLATE, PANTRY (LEFT HAND)
18A	SIDEPLATE, PANTRY (RIGHT HAND)
19	MAY W10508327
19A	MAY W10508326
20	MAY W10530315
21	SCREW
22A	SIDEPLATE, CRISPER (RIGHT HAND)
22	SIDEPLATE, CRISPER (LEFT HAND)
23	FRONT, SIDEPLATE (CRISPER)
24	TRACK ASSEMBLY, CRISPER
25A	RUNNER, PANTRY ROLLER (RIGHT HAND)
25	RUNNER, PANTRY ROLLER (LEFT HAND)
26	MAY W10185612
27	MAY W10236512
28	MAY W10423560
29	PLATE, CRISPER (LEFT HAND)
29A	PLATE, CRISPER (RIGHT HAND)
30	SCREW
31	COVER ASSEMBLY, FRONT PANTRY
32	MAY W10525200
33	HOUSING, PANTRY TEMP CONTROL
34	MAY W10512596
35	RAIL, SIDE (LEFT HAND)
35A	RAIL, SIDE (RIGHT HAND)
36	TRACK, CENTER
37	ROLLER, CENTER
