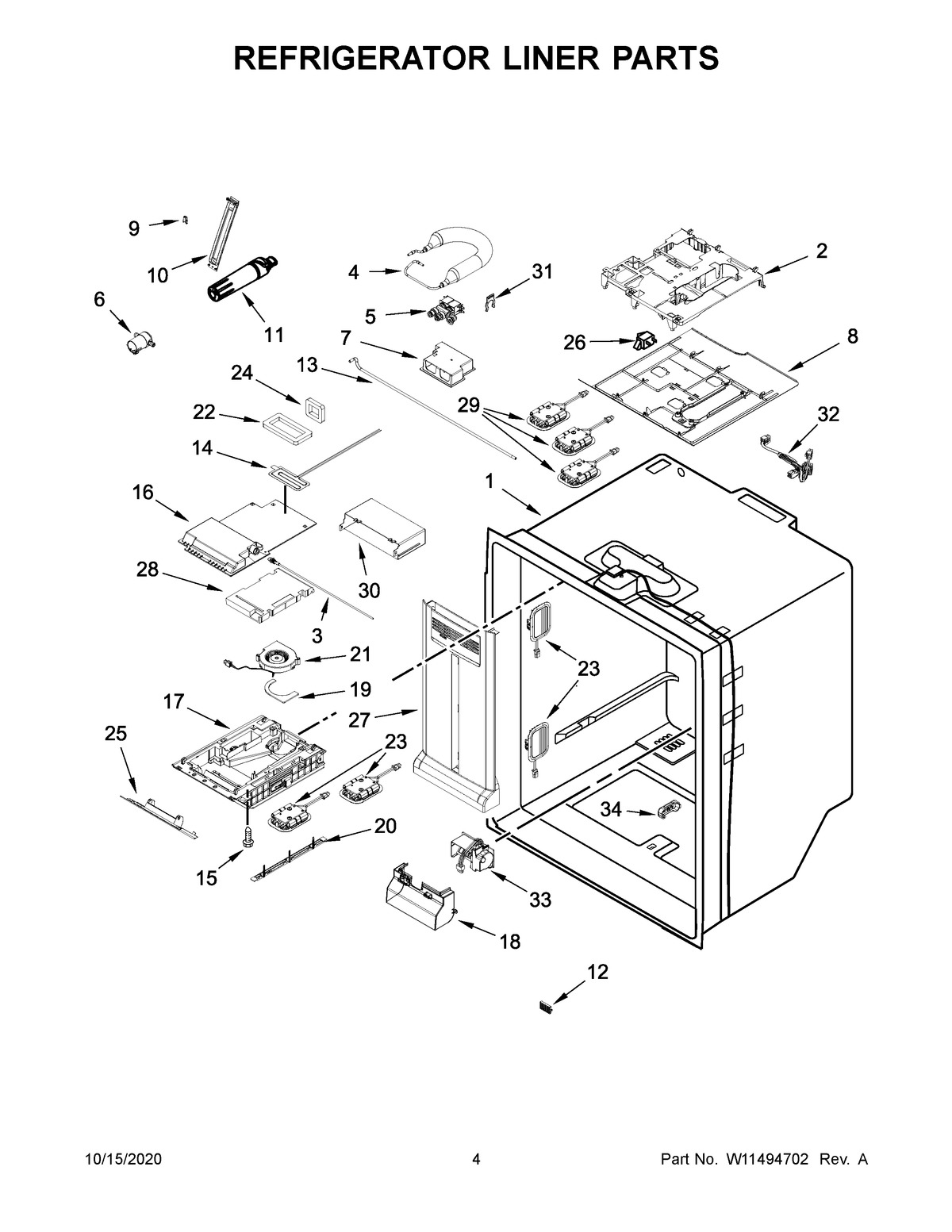

MFT2772HEZ02 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
NI	WIRE ASSEMBLY, ICE BOX
NI	LINER (NOT A SERVICEABLE PART)
2	HOUSING, WATER SYSTEM
3	TUBE, FILL
4	RESERVOIR, WATER (ALSO ORDER WIRE TIE PART 8567668)
5	VALVE, DUAL WATER
6	HOUSING, WATER FILTER
7	ENCLOSURE, WATER VALVE
8	MAY W10669663
9	LATCH, PUSH
10	MAY W10277949
11	FILTER, WATER
12	FILTER, AIR
13	WATERLINE, VALVE TO HINGE
14	MAY W10706850
15	SCREW
16	MAY W10598013
17	ASSEMBLY, ICEBOX (FOAMED)
18	MAY W10530312
19	MAY W10392172
20	MAY W10505516
21	MAY W10833801
22	MAY W10280988
23	ASSEMBLY, LED LIGHT MODULE
24	MAY W10320706
25	ASSEMBLY, FASCIA
26	SWITCH, LIGHT
27	ASSEMBLY, AIR TOWER
28	MAY W10280983
29	HARNESS, LED WIRE (INCLUDES LED LIGHTS)
30	MAY W10635022
31	LOCKING RING (5/16)
32	WIRE ASSEMBLY, JUMPER
33	MAY W10479155
34	MAY W10438957
