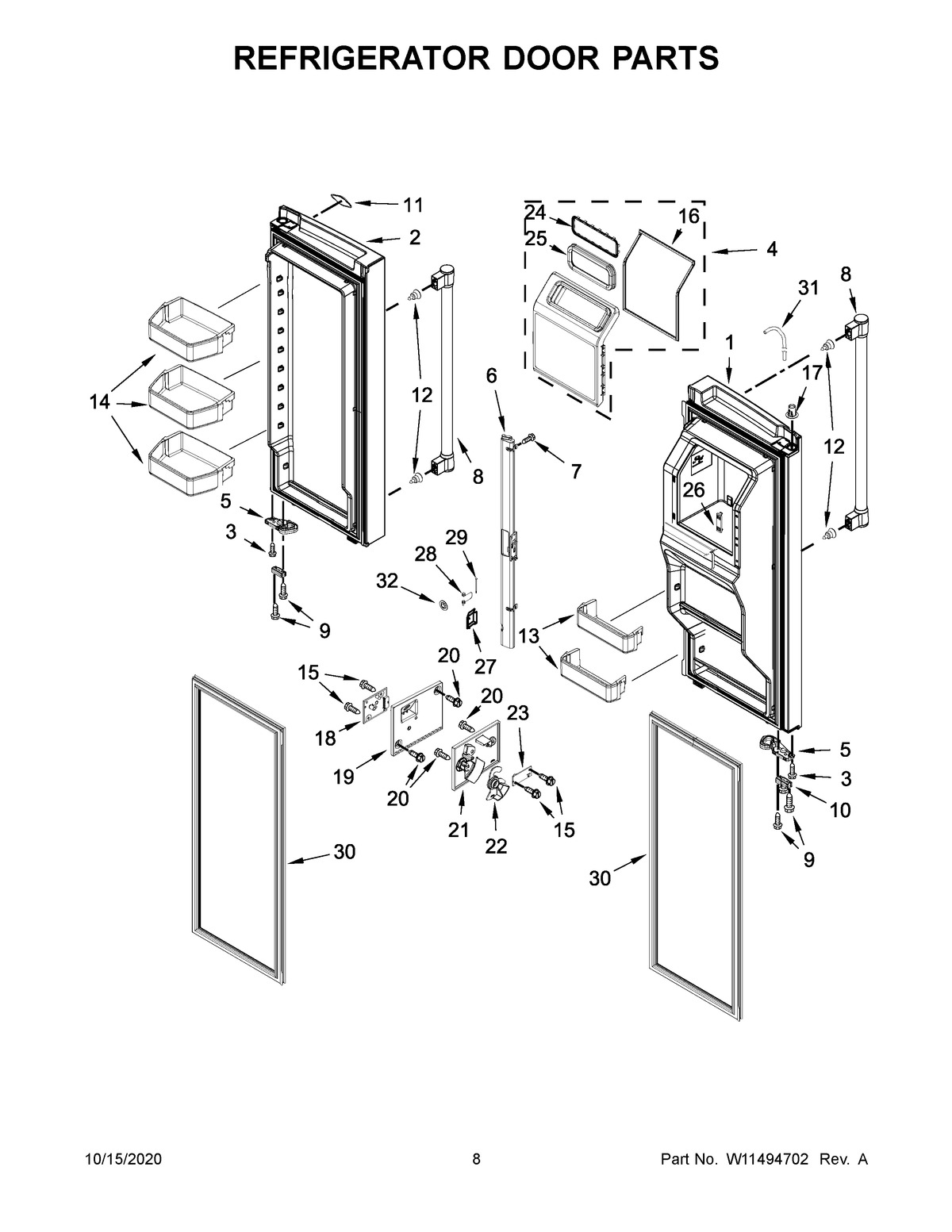

MFT2772HEZ02 05 – REFRIGERATOR DOOR PARTS

MFT2772HEZ02 05 – REFRIGERATOR DOOR PARTS

Written by

in

MFT2772HEZ02 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	DOOR, LEFT (STAINLESS)
2	DOOR, RIGHT (STAINLESS)
3	SCREW
4	MAY W10549593
5	MAY W10712952
5A	MAY W10712953
6	MAY W10698199
7	MAY 12990204
8	HANDLE, DOOR (STAINLESS)
9	MAY 12990504
10	MAY W10407188
11	MAY W10612926
12	SCREW
13	TRIVET, 2 LITER
14	BUCKET, GALLON
15	Screw (2)
16	MAY W10347085
17	CLIP, TUBE
18	MAY W10518658
19	MAY W10258510
20	SCREW (STAINLESS)
21	MAY W10258502
22	MAY W10258540
23	MAY W10832970
24	RETAINER, ICE CHUTE
25	MAY W10347087
26	MAY W10646855
27	DOOR, EMITTER
28	SPRING, DOOR
29	PIN, DOOR
30	GASKET, DOOR (GREY)
31	MAY W10499015
32	MAY 3406121
