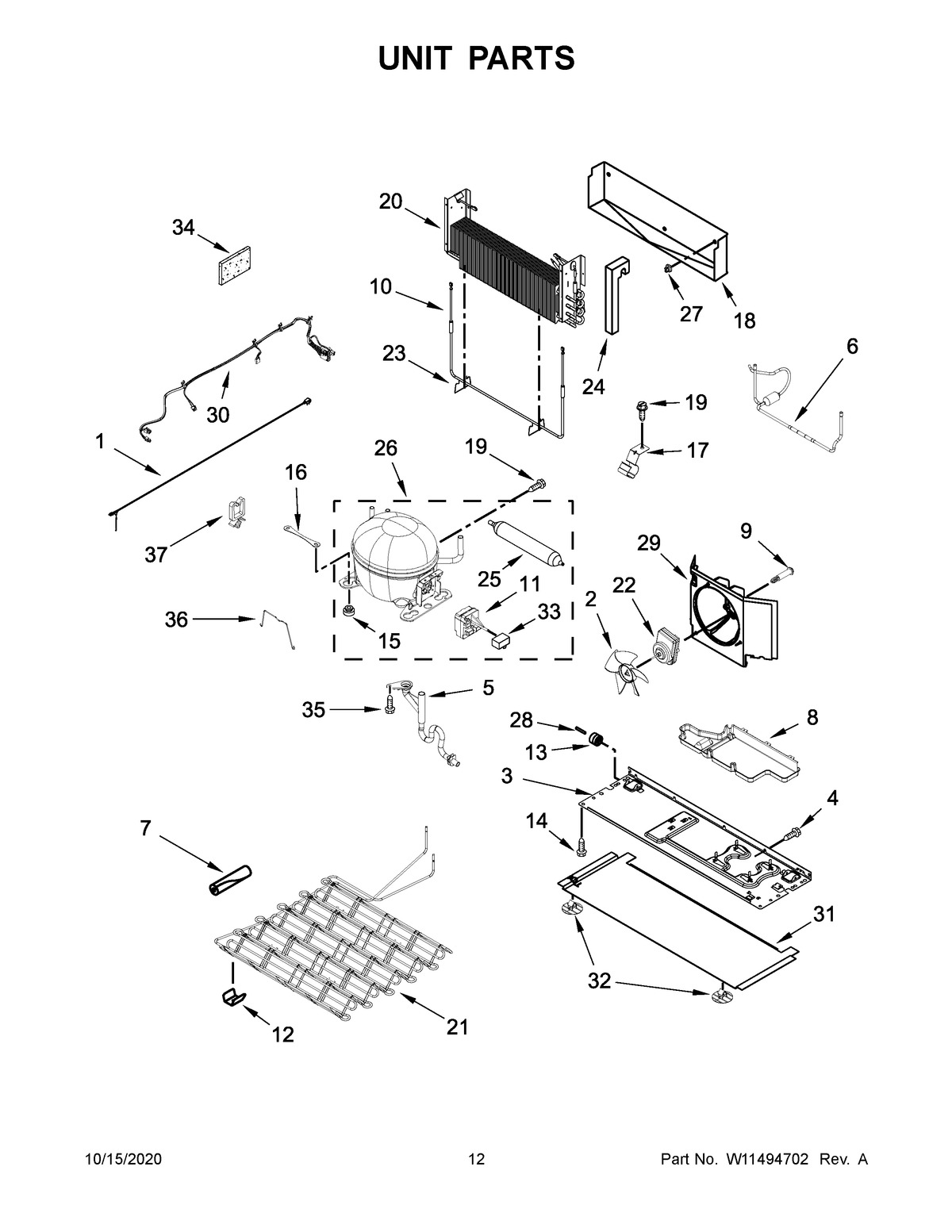

MFT2772HEZ02 07 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (1/4“)
NI	LINER (NOT A SERVICEABLE PART)
NI	Valve, Access (3/4“)
NI	Valve, Access (5/8“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (5/16“)
NI	MAY 876764
1	CORD, POWER
2	MAY 2188935
3	MAY W10570074
4	SCREW (10)
5	MAY W10776917
6	MAY W10463542
7	MAY W10303521
8	MAY W10660727
9	MAY W10622701
10	MAY 12729128
11	MAY W10796752
12	CLIP, CONDENSER
13	Roller (2)
14	MAY 12992101
15	GROMMET
16	MAY W10236396
17	MAY W10281329
18	MAY W10342573
19	SCREW 8-32 X 1/2
20	ASSEMBLY, EVAPORATOR
21	CONDENSER ASSEMBLY
22	MOTOR, CONDENSER FAN
23	W11673433 Whirlpool Clip
24	MAY W10491355
25	Drier
26	MAY W10391109
27	MAY W10142294
28	Axle, Roller (2)
29	MAY W10406719
30	HARNESS, UNIT (INCLUDES POWER CORD)
31	MAY W10278140
32	MAY W10815861
33	MAY W10350564
34	SEALER, INSULATION
35	SCREW 8-15 X 3/4
36	STRAP, BALE
37	CLIP
