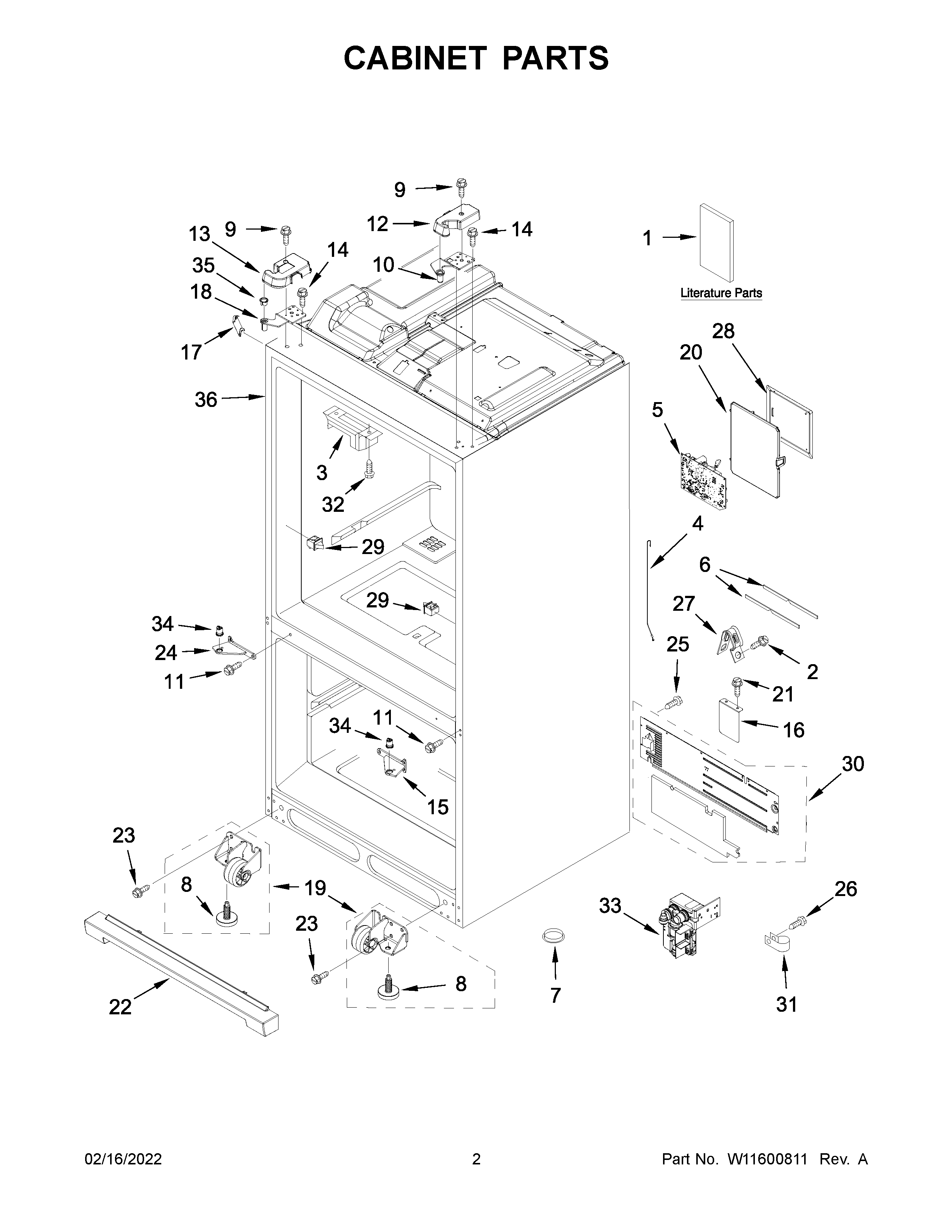

MFT2772HEZ03 02 – CABINET PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11483123 Whirlpool Wire Harness
1A	ENERGY GUIDE
1C	TECH SHEET (FRENCH)
1B	TECH SHEET (ENGLISH)
1	TECH SHEET, OWNERS MANUAL
3	WPW10344432 Whirlpool Pivot Block
4	W11482381 Whirlpool Refrigerator Water Tube
5	W11224256-includeCORE Whirlpool W11224256 Washer Electronic Control Board + Core
6	W10415341 Whirlpool Refrigerator Gasket
7	A3076901 Whirlpool Refrigerator Plug
8	WPW10141622 Whirlpool Leveler
9	WP8281196 Whirlpool Screw
10	W11592404 Whirlpool Refrigerator Door Hinge
11	W11573362 Whirlpool Screw Assembly
12	WPW10407158 Whirlpool Refrigerator Cover Assembly
13	WPW10471618 Whirlpool Refrigerator Cover
14	W11126052 Whirlpool Screw Assembly
15	W11240748 Whirlpool Refrigerator Door Hinge
16	W10336736 Whirlpool Refrigerator Cover
17	WP12587703AP Whirlpool Refrigerator Filler
18	W11592405 Whirlpool Door Hinge
19A	WPW10515762 Whirlpool Refrigerator Cabinet Roller
19	WPW10515763 Whirlpool Refrigerator Cabinet Roller
20	W10768379 Whirlpool Refrigerator Cover
21	W11686675 Whirlpool Screw
22	WPW10637671 Whirlpool Refrigerator Front Grille
23	67006564 Whirlpool Refrigerator Screw
24	W10878115 Whirlpool Refrigerator Door Hinge
25	SCREW
26	67006425 Whirlpool Refrigerator Screw
27	549193 Whirlpool Refrigerator Power Clamp
28	W10754144 Whirlpool Refrigerator Cover
29	W11396033 Whirlpool Refrigerator Rocker Switch
30	W11482027 Whirlpool Refrigerator Back Cover
31	W11456069 Whirlpool Refrigerator Clamp
32	W10854958 Whirlpool Refrigerator Screw
33	VALVE
34	COUPLER, DOOR
35	W10212137 Whirlpool Refrigerator Grommet
