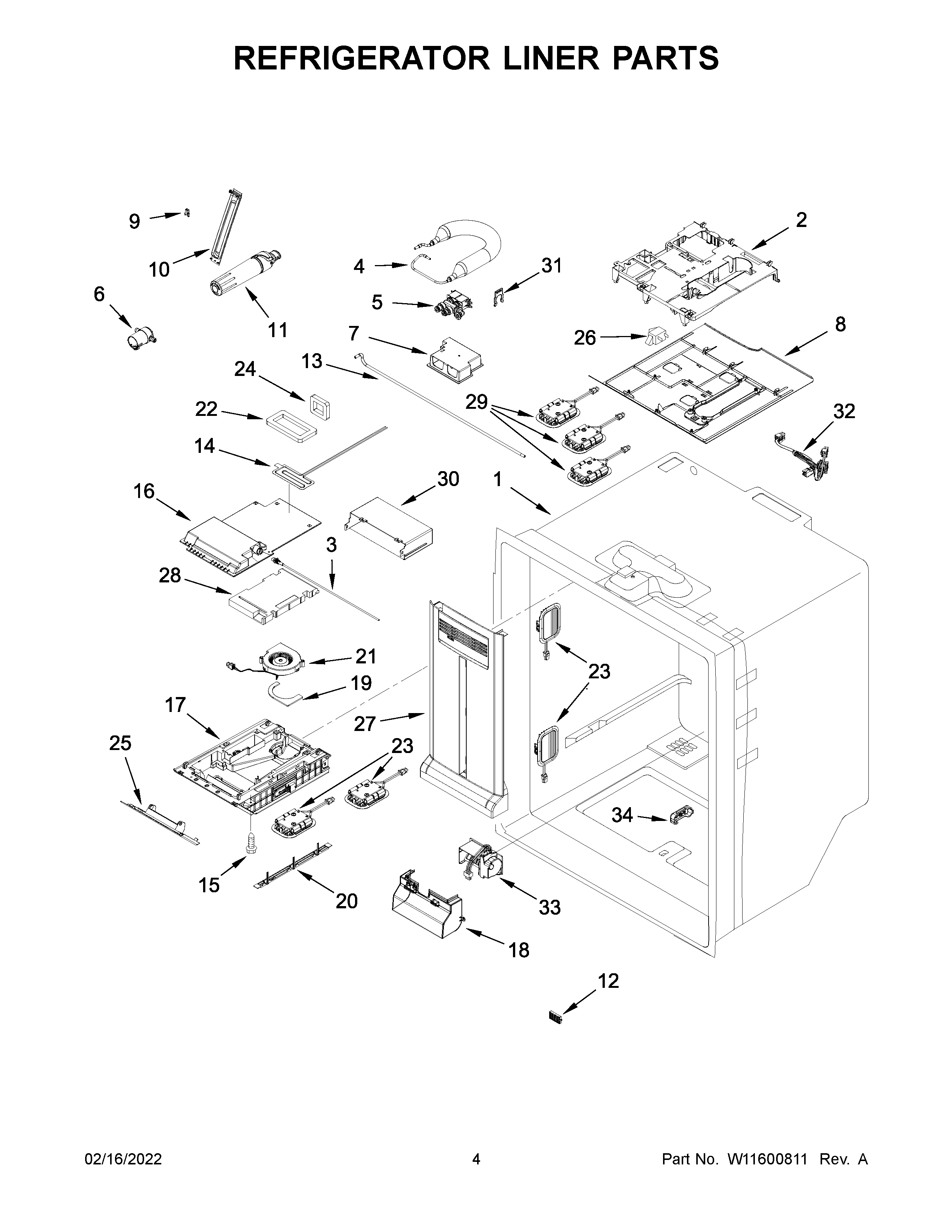

MFT2772HEZ03 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11298842 Whirlpool Refrigerator Wire Harness
2	W11482035 Whirlpool Refrigerator Housing
3	W11686799 Whirlpool Refrigerator Water Tube
4	W11482382 Whirlpool Refrigerator Reservoir
5	W11482383 Whirlpool Microwave Valve
6	W11482384 Whirlpool Refrigerator Housing
7	W11391457 Whirlpool Refrigerator Cover
8	W11190820 Whirlpool Refrigerator Cover
9	WP2223877 Whirlpool Door Hook
10	WPW10277949 Whirlpool Refrigerator Filter Cover
11	EDR2RXD1 Whirlpool Everydrop® Water Filter 2 Refrigerator
12	W10311524 Whirlpool FreshFlow Refrigerator Air Filter
13	W11686800 Whirlpool Water Tube
14	HEATER
15	WP67006908 Whirlpool Refrigerator Screw
16	WPW10598013 Whirlpool Refrigerator Cover
17	W11605504 Whirlpool Refrigerator Ice Box
18	COVER, DAMPER
19	WPW10392172 Whirlpool Refrigerator Gasket
20	W10505516 Whirlpool Refrigerator Trim
21	FAN-EVAPORATOR
22	WPW10280988 Whirlpool Refrigerator Gasket
23	W11483116 Whirlpool Refrigerator Module
24	WPW10320706 Whirlpool Refrigerator Gasket
25	W11637688 Whirlpool Heater
26	W11123941 Whirlpool Refrigerator Switch
27	W11373854 Whirlpool Refrigerator Air Tower
28	WPW10280983 Whirlpool Refrigerator Insulation
29	W11484840 Whirlpool Refrigerator Module
30	WPW10635022 Whirlpool Refrigerator Adapter
31	W11678575 Whirlpool Ring
32	W11369503 Whirlpool Jumper Wire
33	CONTROL
34	W11238397 Whirlpool Refrigerator Cover
