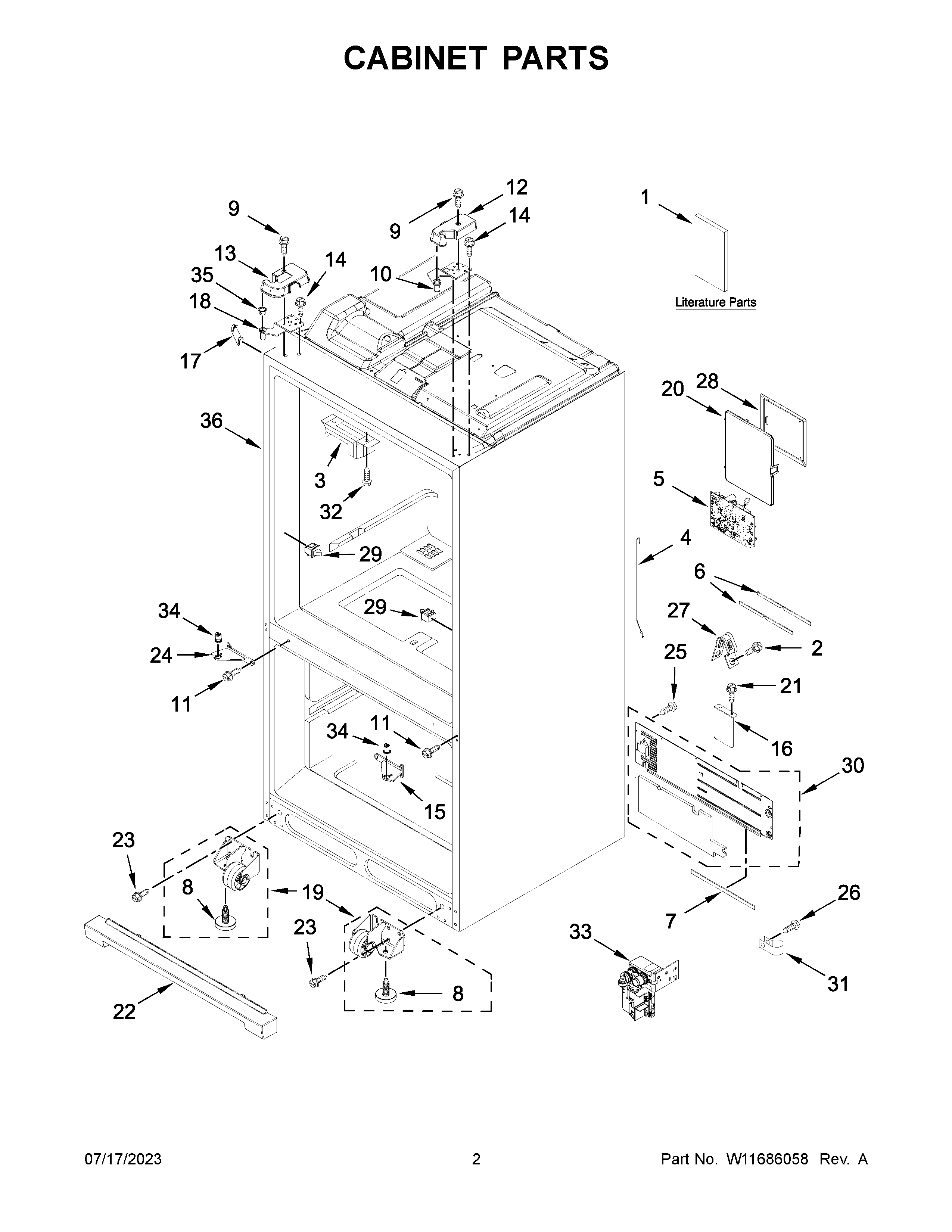

MFT2772HEZ04 02 – CABINET PARTS

MFT2772HEZ04 02 – CABINET PARTS

Written by

in

MFT2772HEZ04 02 – CABINET PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW11483123 Whirlpool Wire Harness
1AENERGY GUIDE
1BTECH SHEET
1TECH SHEET, OWNERS MANUAL
3WPW10344432 Whirlpool Pivot Block
4W11482381 Whirlpool Refrigerator Water Tube
5W11224256-includeCORE Whirlpool W11224256 Washer Electronic Control Board + Core
6W10415341 Whirlpool Refrigerator Gasket
7W11534848 Whirlpool Gasket
8WPW10141622 Whirlpool Leveler
9WP8281196 Whirlpool Screw
10W11592404 Whirlpool Refrigerator Door Hinge
11W11573362 Whirlpool Screw Assembly
12WPW10407158 Whirlpool Refrigerator Cover Assembly
13WPW10471618 Whirlpool Refrigerator Cover
14W11126052 Whirlpool Screw Assembly
15W11240748 Whirlpool Refrigerator Door Hinge
16W10336736 Whirlpool Refrigerator Cover
17WP12587703AP Whirlpool Refrigerator Filler
18W11592405 Whirlpool Door Hinge
19AWPW10515762 Whirlpool Refrigerator Cabinet Roller
19WPW10515763 Whirlpool Refrigerator Cabinet Roller
20W10768379 Whirlpool Refrigerator Cover
21W11686675 Whirlpool Screw
22WPW10637671 Whirlpool Refrigerator Front Grille
2367006564 Whirlpool Refrigerator Screw
24W10878115 Whirlpool Refrigerator Door Hinge
25SCREW
2667006425 Whirlpool Refrigerator Screw
27549193 Whirlpool Refrigerator Power Clamp
28W10754144 Whirlpool Refrigerator Cover
29W11396033 Whirlpool Refrigerator Rocker Switch
30W11482027 Whirlpool Refrigerator Back Cover
31W11456069 Whirlpool Refrigerator Clamp
32W10854958 Whirlpool Refrigerator Screw
33VALVE
34COUPLER, DOOR
35W10212137 Whirlpool Refrigerator Grommet
