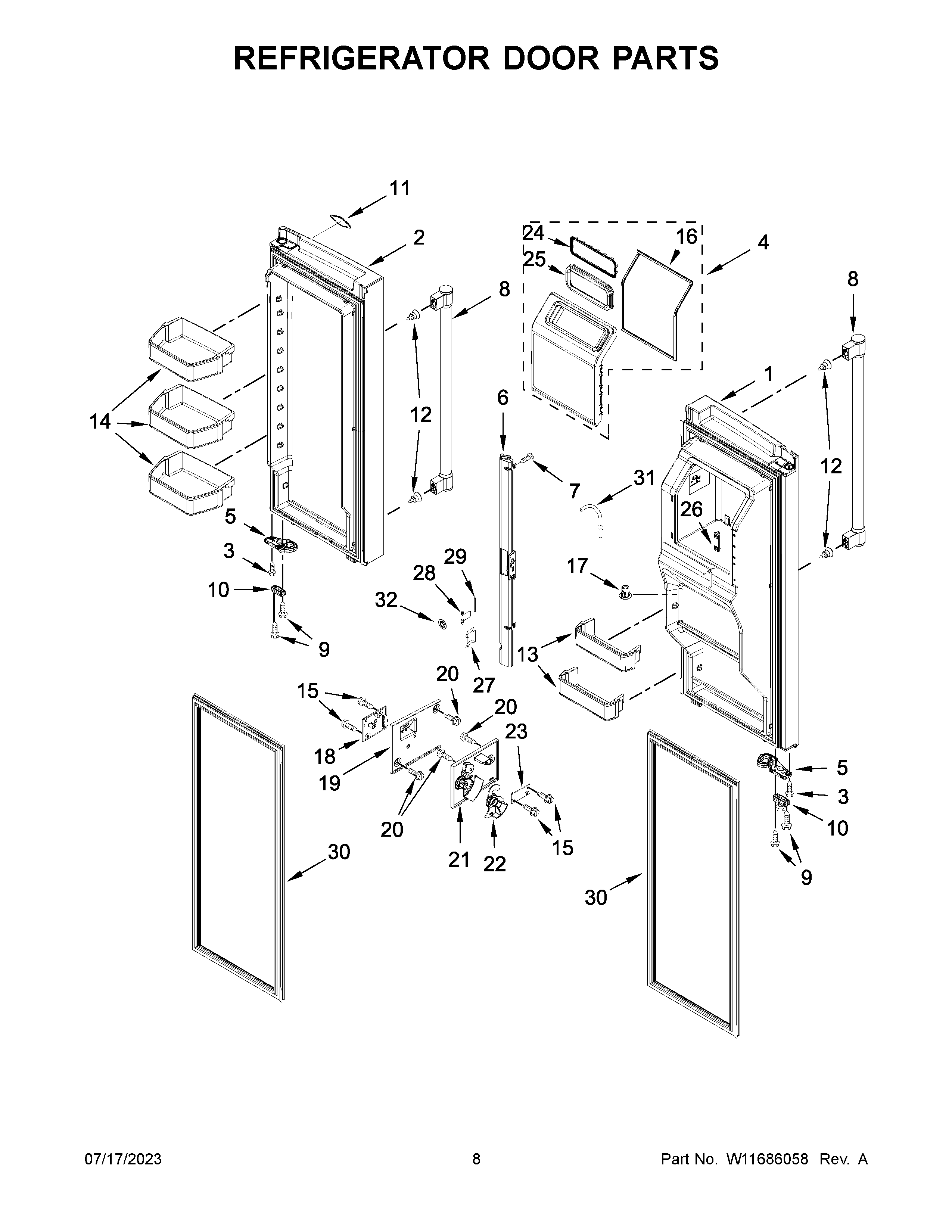

MFT2772HEZ04 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	W11518736 Whirlpool Refrigerator Door Service Kit W10861207
2	W11436604 Whirlpool Refrigerator Door Assembly
4	W10549593 Whirlpool Refrigerator Ice Door
5	W10904595 Whirlpool Refrigerator Closer
5A	W11212164 Whirlpool Refrigerator Door Closer
6	W10806457 Whirlpool Refrigerator Mullion Rail
7	W11311945 Whirlpool Refrigerator Screw
8	W11024095 Whirlpool Refrigerator Handle
9	WP98165 Whirlpool Screw
10	W11573367 Whirlpool Refrigerator Door Bumper
11	WPW10612926 Whirlpool Refrigerator Nameplate
12	W11449276 Whirlpool Handle Support
13	W10849724 Whirlpool Refrigerator Trivet
14	W10860198 Whirlpool Refrigerator Cantilever Bin
15	2006254 Whirlpool Refrigerator Screw
16	W11624997 Whirlpool Refrigerator Gasket
17	W11315302 Whirlpool Refrigerator Clip
18	W10898445 Whirlpool Refrigerator Electronic Control Board + Core
19	COVER, RECEIVER
20	WP3400065 Whirlpool Refrigerator Screw
21	W10258502 Whirlpool Refrigerator Cover
22	W10258540 Whirlpool Refrigerator Slide
23	W10870822 Whirlpool Refrigerator Electronic Control Board
24	WPW10400825 Whirlpool Refrigerator Retainer
25	WPW10347087 Whirlpool Refrigerator Ice Chute Gasket
26	VENT, THERMISTOR
27	FLIPPER
28	WP2198635 Whirlpool Refrigerator Spring
29	W10331749 Whirlpool Refrigerator Door PIN
30	W10407212 Whirlpool Door Gasket
31	WPW10499015 Whirlpool Refrigerator Water Tube
32	WP2196195 Whirlpool Refrigerator Door Pin
