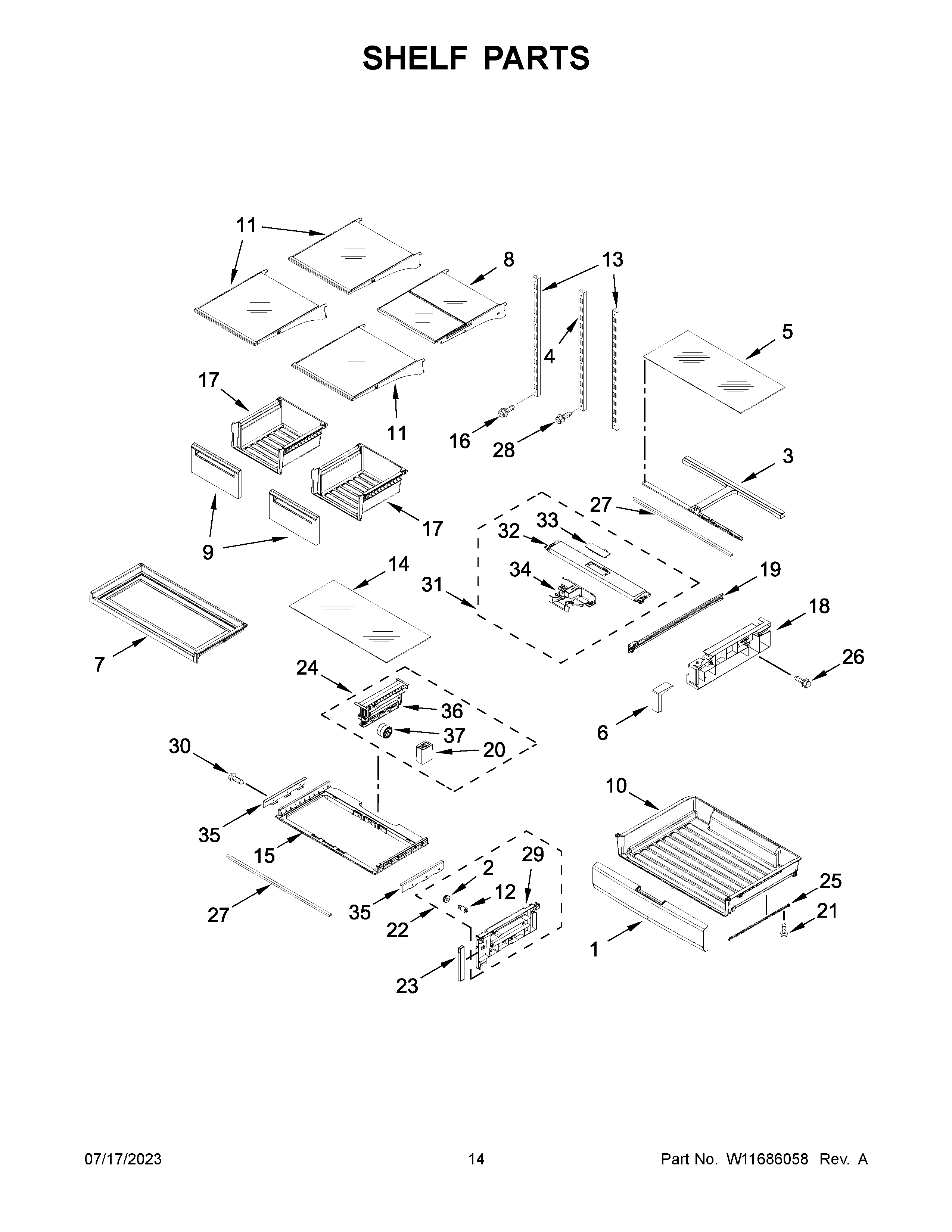

MFT2772HEZ04 08 – SHELF PARTS

Products

Position	Product
1	WPW10559660 Whirlpool Refrigerator Front Pan
2	WPW10248544 Whirlpool Refrigerator Roller
3	W11224265 Whirlpool Refrigerator Support
4	W11690685 Whirlpool Ladder
5	WPW10248799 Whirlpool Refrigerator Glass Shelf
6	W10426775 Whirlpool Refrigerator Trim
6A	FRONT, SIDEPLATE (PANTRY) (RIGHT HAND)
7	ASSEMBLY, METAL SHELF PLATTER (INCLUDES GLASS)
8	WPW10401836 Whirlpool Refrigerator Glass Shelf
9	W10524914 Whirlpool Refrigerator Front Assembly
10	WPW10654844 Whirlpool Storage Drawer
11	WPW10402687 Whirlpool Refrigerator Glass Shelf
12	WPW10257246 Whirlpool Refrigerator Axle
13	LADDER
14	WPW10248578 Whirlpool Refrigerator Glass Shelf
15	W11133643 Whirlpool Refrigerator Frame
16	W11311945 Whirlpool Refrigerator Screw
17	W10850129 Whirlpool Crisper Drawer
18	WPW10498906 Whirlpool Refrigerator Plate
18A	W11225684 Whirlpool Refrigerator Plate
19A	W10508326 Whirlpool Refrigerator Slide
19	W10508327 Whirlpool Refrigerator Slide
20	W10530315 Whirlpool Refrigerator Support
21	WP8281136 Whirlpool Screw
22	SIDEPLATE, CRISPER (LEFT HAND)
22A	PLATE
23	W10488299 Whirlpool Trim
24	W10549606 Whirlpool Refrigerator Track
25A	W10508328 Whirlpool Refrigerator Slide
25	W10508330 Whirlpool Refrigerator Slide
26	W10185612 Whirlpool Screw
27	WPW10236512 Whirlpool Refrigerator Support
28	W10423560 Whirlpool Refrigerator Screw
29A	W11315180 Whirlpool Refrigerator Plate
29	W11315181 Whirlpool Refrigerator Plate
30	W10847999 Whirlpool Refrigerator Screw
31	W10554737 Whirlpool Refrigerator Cover
32	COVER, PANTRY TOP
33	HOUSING, PANTRY TEMPERATURE CONTROL
34	W10512596 Whirlpool Refrigerator Knob
35A	W11133648 Whirlpool Refrigerator Rail
35	W11133647 Whirlpool Refrigerator Rail
36	W10530307 Whirlpool Refrigerator Track
37	W10248789 Whirlpool Refrigerator Roller
