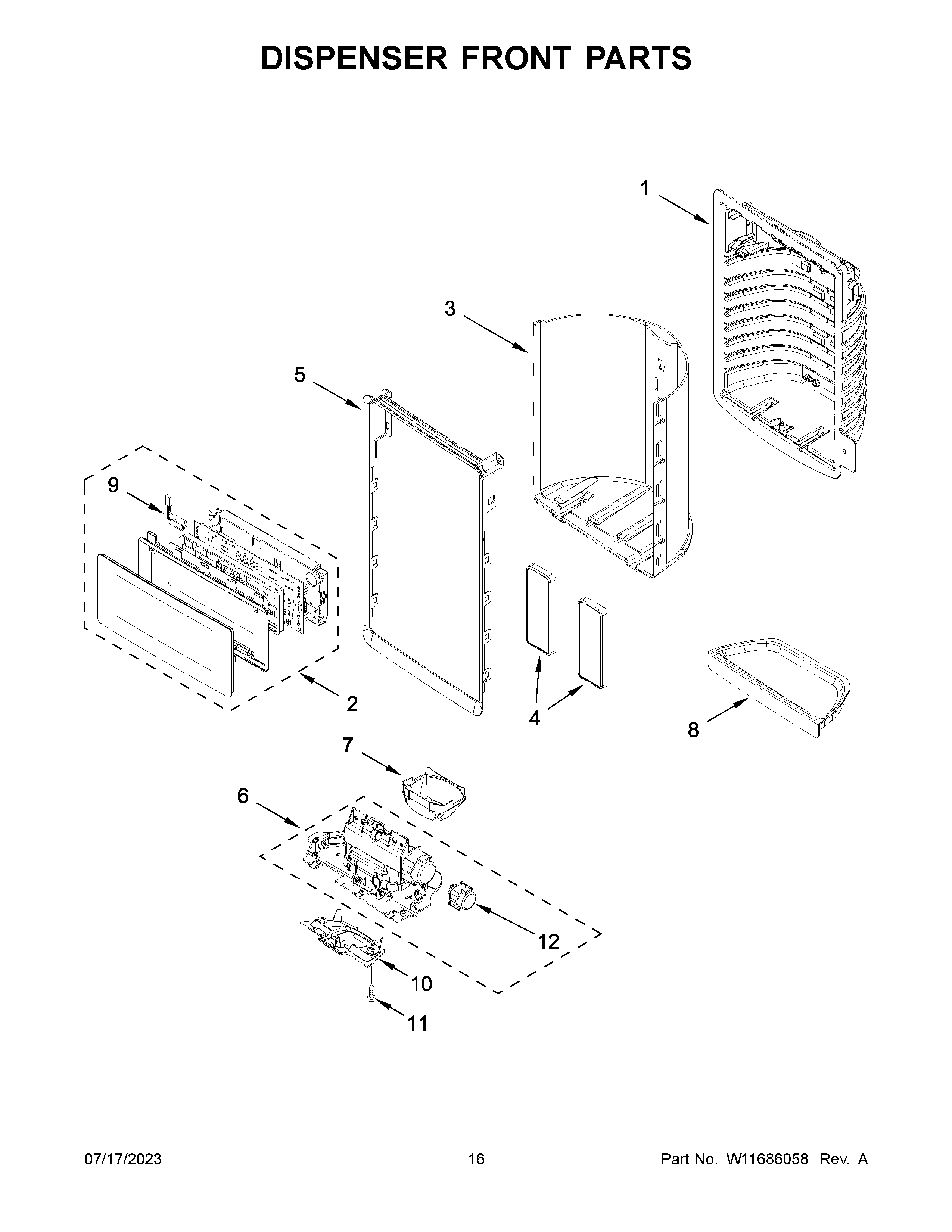

MFT2772HEZ04 09 – DISPENSER FRONT PARTS

MFT2772HEZ04 09 – DISPENSER FRONT PARTS

Written by

in

MFT2772HEZ04 09 – DISPENSER FRONT PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W11603849 Whirlpool Refrigerator Electronic Control Board + Core
3W10520869 Whirlpool Refrigerator Separator
4ASSEMBLY, PAD (STAINLESS)
5W10587910 Whirlpool Refrigerator Dispenser Trim
6WPW10577864 Whirlpool Refrigerator Ice Door
7WPW10435760 Whirlpool Refrigerator Ice Guide
8WPW10322873 Whirlpool Refrigerator Drip Tray
9W11290115 Whirlpool Refrigerator Light
10W10549235 Whirlpool Refrigerator Cover
1167006425 Whirlpool Refrigerator Screw
12WPW10205979 Whirlpool Refrigerator Ice Door Motor
