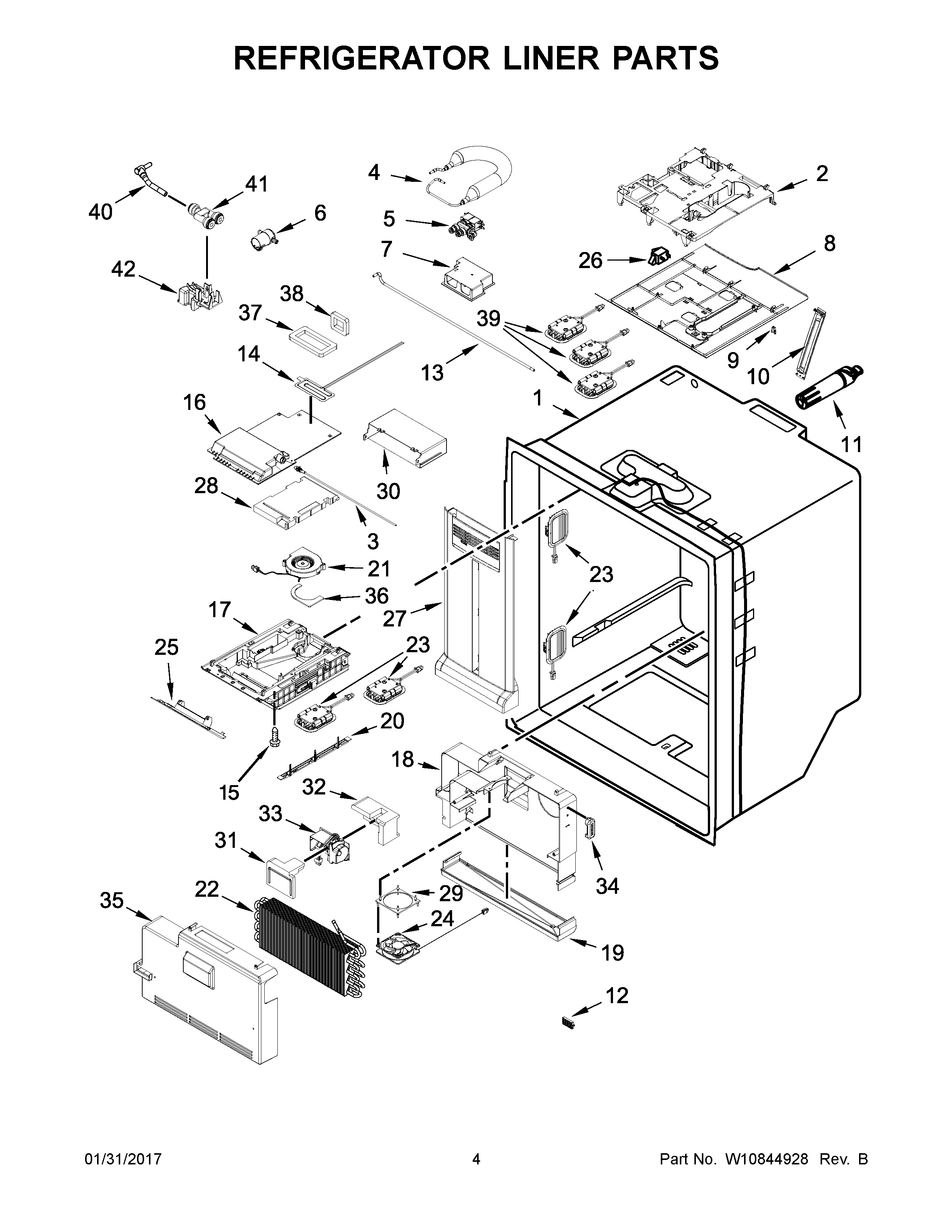

MFT2776DEE02 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
NI	MAY W10570599
NI	LINER (NOT A SERVICEABLE PART)
NI	HARNESS, REFRIGERATOR LIGHTS
2	HOUSING, WATER SYSTEM
3	MAY W10736144
4	MAY W10711460
5	MAY W10341329
6	MAY W10238156
7	ENCLOSURE, WATER VALVE
8	MAY W10669663
9	LATCH, PUSH
10	MAY W10277949
11	FILTER, WATER
12	FILTER, AIR
13	MAY W10674102
14	MAY W10706850
15	SCREW
16	MAY W10598013
17	MAY W10811686
18	ENCLOSURE, EVAPORATOR
19	MAY W10525237
20	MAY W10505516
21	MAY W10833801
22	MAY W10630535
23	ASSEMBLY, LED LIGHT MODULE
24	HARNESS, EVAPORATOR WIRE (INCLUDES EVAPORATOR MOTOR AND THERMISTORS)
25	ASSEMBLY, FASCIA
26	SWITCH, LIGHT (2)
27	ASSEMBLY, AIR TOWER
28	MAY W10280983
29	MAY W10389152
30	MAY W10635022
31	MAY W10503491
32	MAY W10503492
33	MAY W10248595
34	COVER, THERMISTOR
35	COVER, EVAPORATOR
36	MAY W10392172
37	MAY W10280988
38	MAY W10320706
39	HARNESS, LED WIRE (INCLUDES LED LIGHTS)
40	WATERLINE
41	CONNECTOR, WATER TUBE
42	BRACKET, CONNECTOR
